3M 5777A-MT 3 Conductor Splice Kit 5/8 kV Standard

Product Description

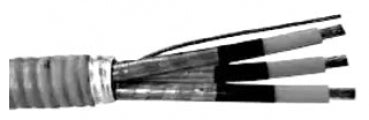

3M 5777A-MT is a splice kit designed for use with 3-conductor, armored and non-armored, shielded power cables. This kit is rated for both five-eight kV and fifteen kV applications, making it versatile for various electrical setups. It accommodates conductor sizes from three hundred fifty kcmil to seven hundred fifty kcmil, ensuring compatibility with a broad range of installations.

• Silicon rubber splice body provides environmental resilience.
• Suitable for use in both indoor and outdoor applications, including cable trays and junction boxes.
• Comes with all necessary components for a complete splice operation.

Product Highlights

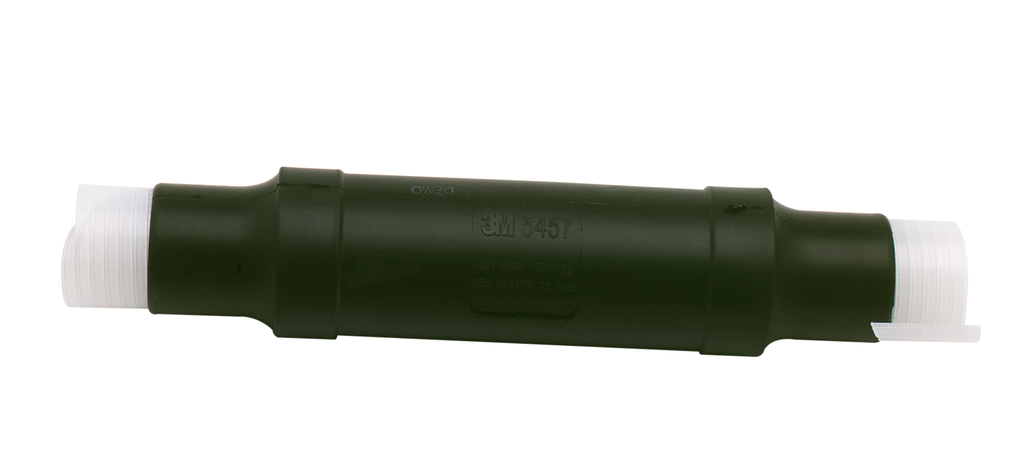

This splice kit includes three cold shrink splice bodies and all necessary adapters, ensuring robust and reliable connections.

Product Information

Standard Information

• Brand: 3M
• MPN: 5777A-MT

Technical Specifications

• Voltage Rating: 5/8 kV to 15 kV
• Cable Type: Tape/Wire Shielded, Armored/Non-Armored
• Number of Conductors: 3
• Conductor Size: 350 to 750 kcmil
• Insulation Outer Diameter: 1.04 to 1.7 inches
• Splice Length: 58 inches
• Temperature Rating: 105 to 140 degrees Celsius
• Standards/Approvals: IEEE 404 | UL Listed
