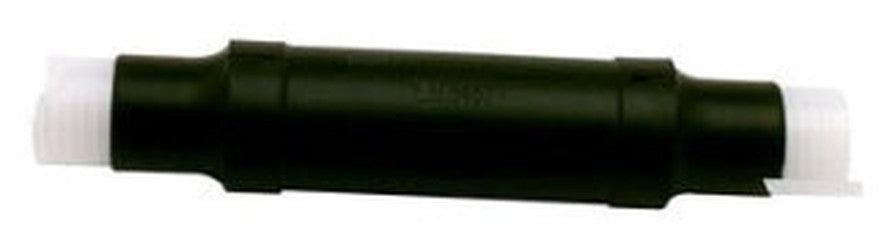

3M 5775A-MT Cold Shrink In-Line Splice Kit 5/8 to 15 kV

Product Description

The 3M Cold Shrink In-Line Splice Kit, MPN 5775A-MT, is designed for splicing three conductor, armored or non-armored shielded power cables. This kit is rated for use on cables up to 15 kV with conductor sizes ranging from 2 AWG to 750 kcmil. It is suitable for various applications including cable trays, weather-exposed installations, and direct burial.

• Splices shielded cables effectively
• Features silicone rubber for good temperature performance
• Meets IEEE standards for cable splicing

Product Highlights

This splice kit uses cold shrink technology for easy installation and cable size transitions. The splice is designed to provide mechanical protection and moisture sealing, making it ideal for harsh environments.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 5775A-MT

Technical Specifications

• Application: Aerial, cable hangers, cable rack, cable tray, wet or dry location
• Voltage Rating: 5/8 to 15 kV
• Number of Conductors: 3
• Conductor Size: 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
• Insulation Size: 0.64 to 1.01 inches OD
• Splice Length: 52 inches
• Temperature Rating: 105 to 140 degrees Celsius
• Material: Silicone rubber
• Standards/Approvals: IEEE 404
