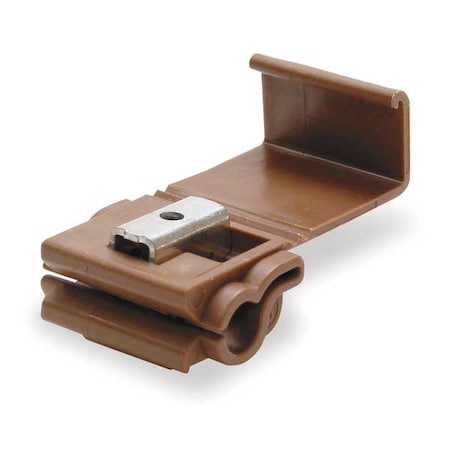

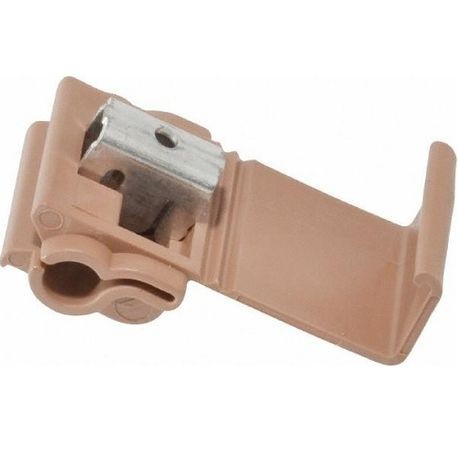

3M 567-BOX Scotchlok Run/Tap Insulation Displacement Connector 18 - 14 AWG Tap 12 - 10 AWG Run

Product Description

The 3M 567-BOX Scotchlok Run/Tap Insulation Displacement Connector is essential for trade professionals. Designed by 3M, this connector allows you to electrically connect a wire end to a through wire and fully insulate the connection.

• Self-stripping and flame retardant
• Dual element connection
• Rated for 600 VAC

Product Highlights

This product is suitable for connecting wires in electrical applications. It supports wire sizes from 18 - 14 AWG (tap) and 12 - 10 AWG (run).

Product Information

Standard Information

• Brand: 3M
• MPN: 567-BOX

Technical Specifications

• Type: Run/Tap
• Color: Brown
• Material: Flame Retardant Polypropylene
• Voltage Rating: 600 VAC
• Wire Size: 18 to 14 AWG (Tap) / 12 to 10 AWG (Run)
• Connector Type: Run Tap
• Maximum Temperature: 221 degrees F
• Maximum Insulation Diameter: 0.145 in (Run), 0.19 in (Tap)
• Finish: Tin Plated
• Series: 567
• UNSPSC: 39121409
• Standards & Approvals: C22.2 No 0. 188-MI983, LR15503, LR32411 CSA Certified, RoHS Compliant, UL 486C, UL E23438 Listed
