Product Description

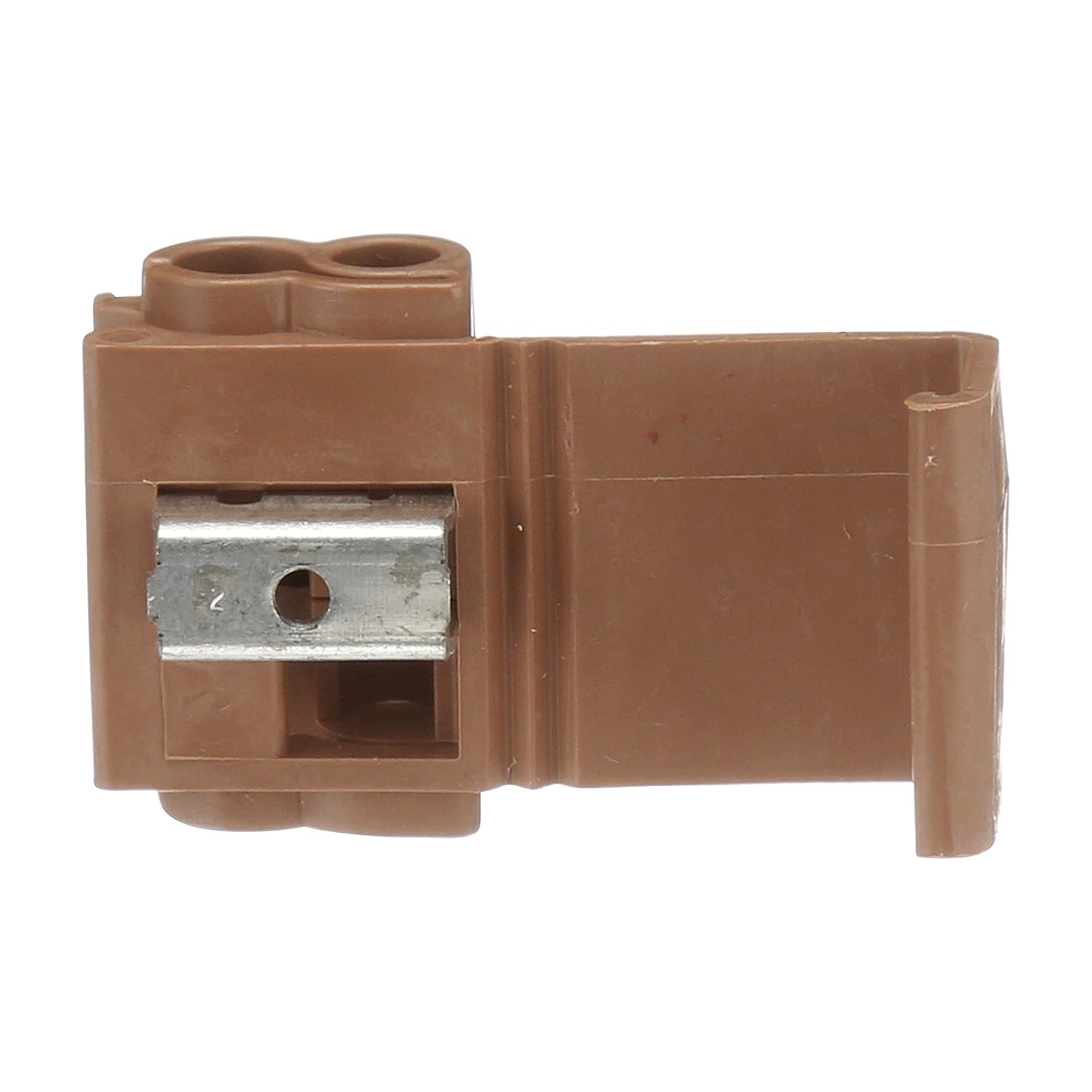

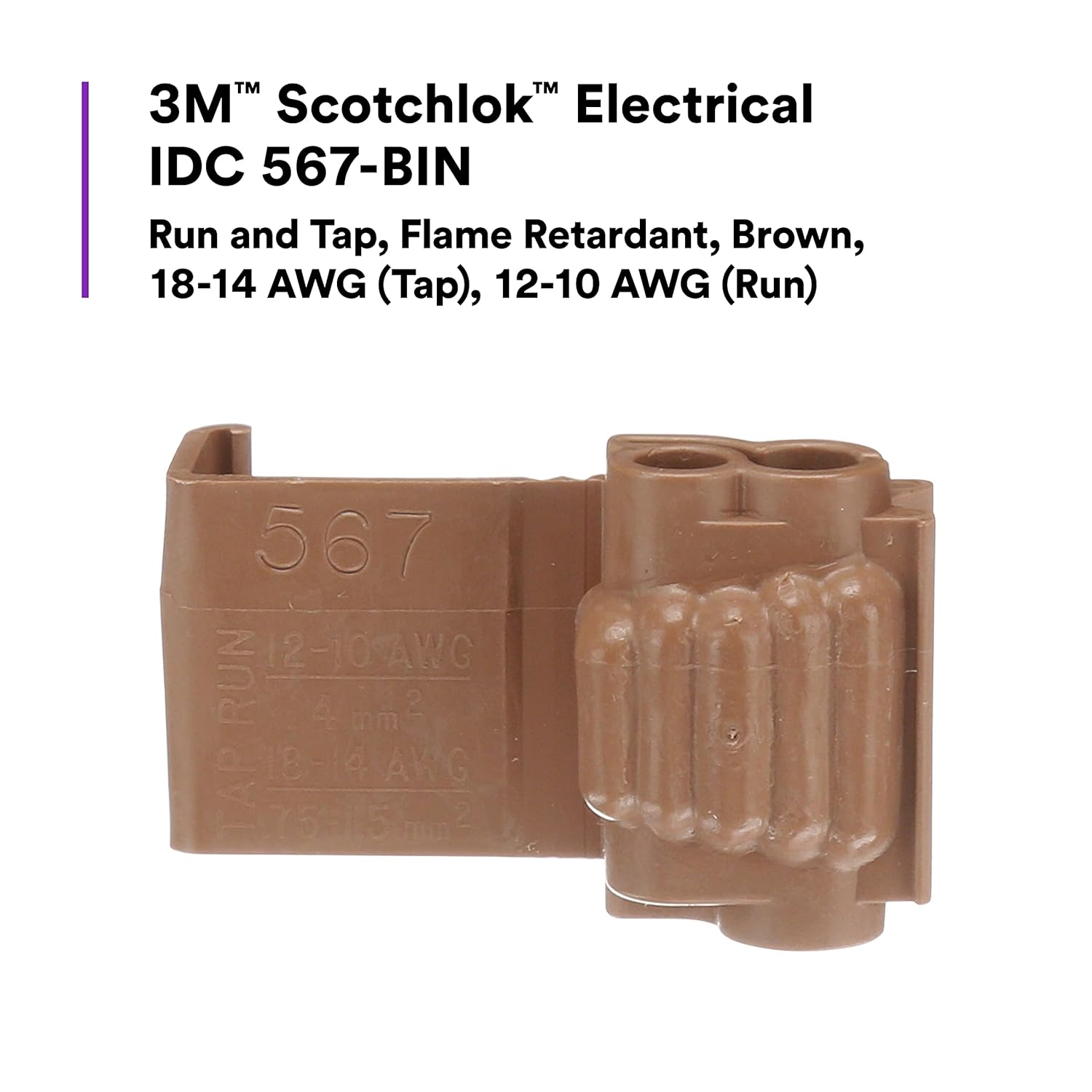

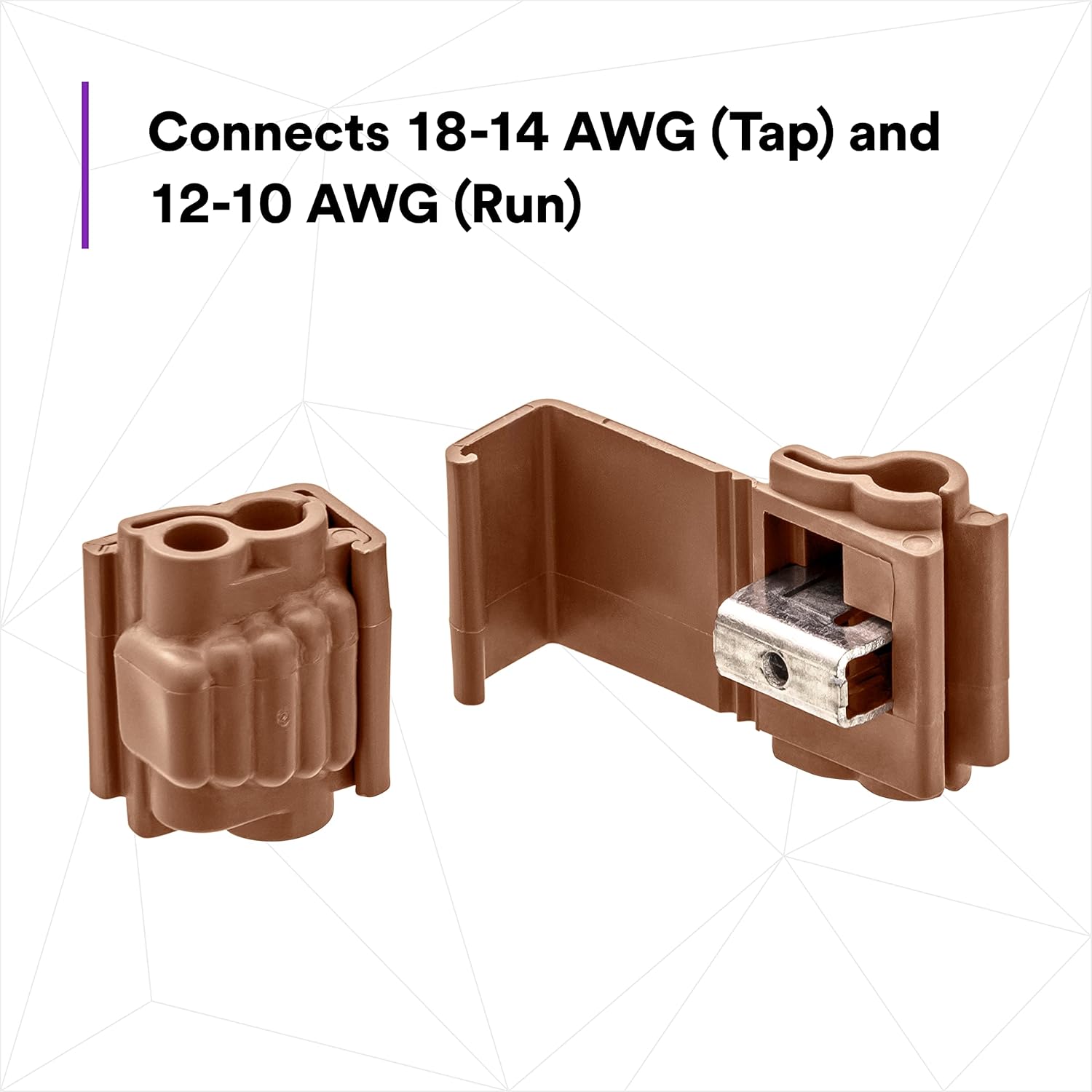

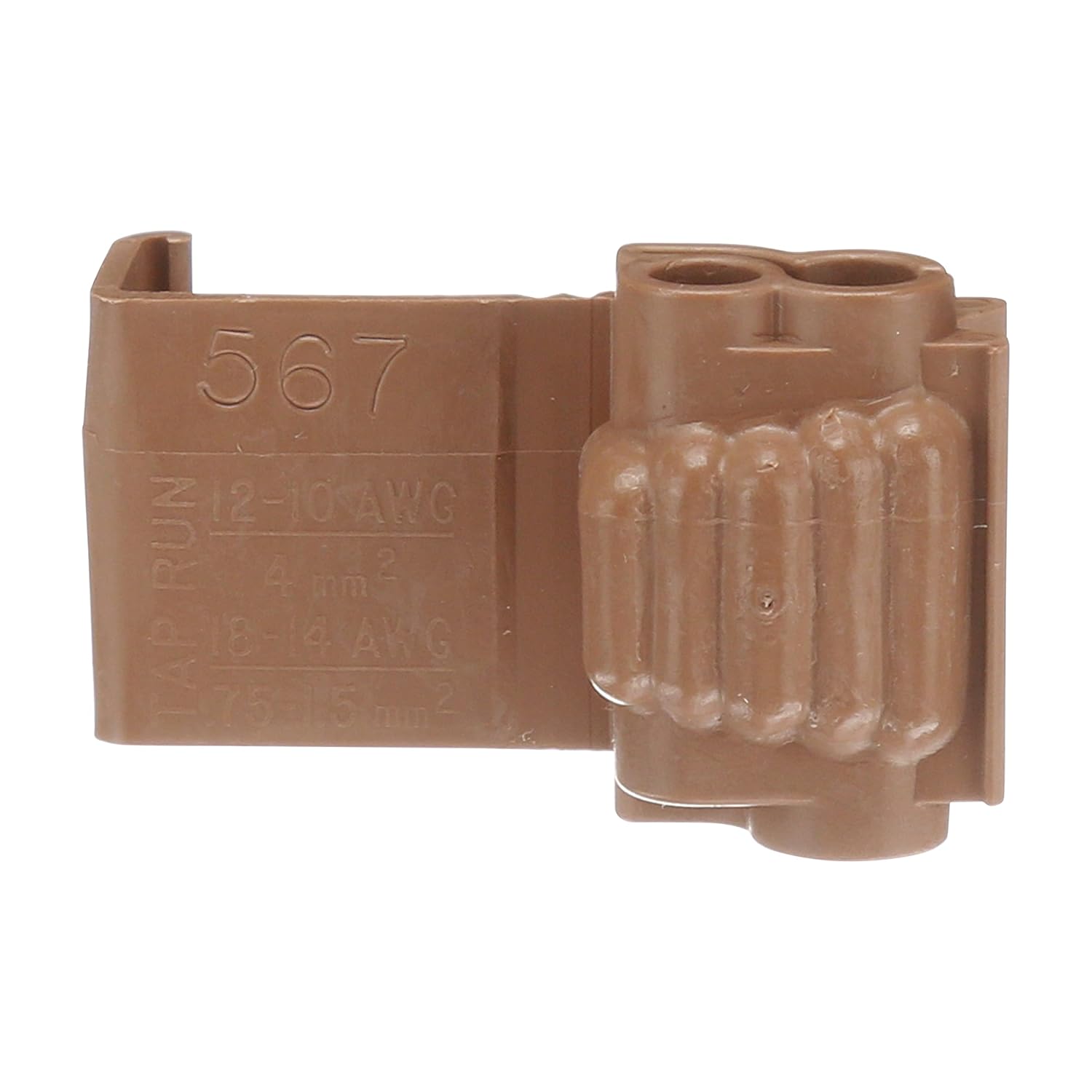

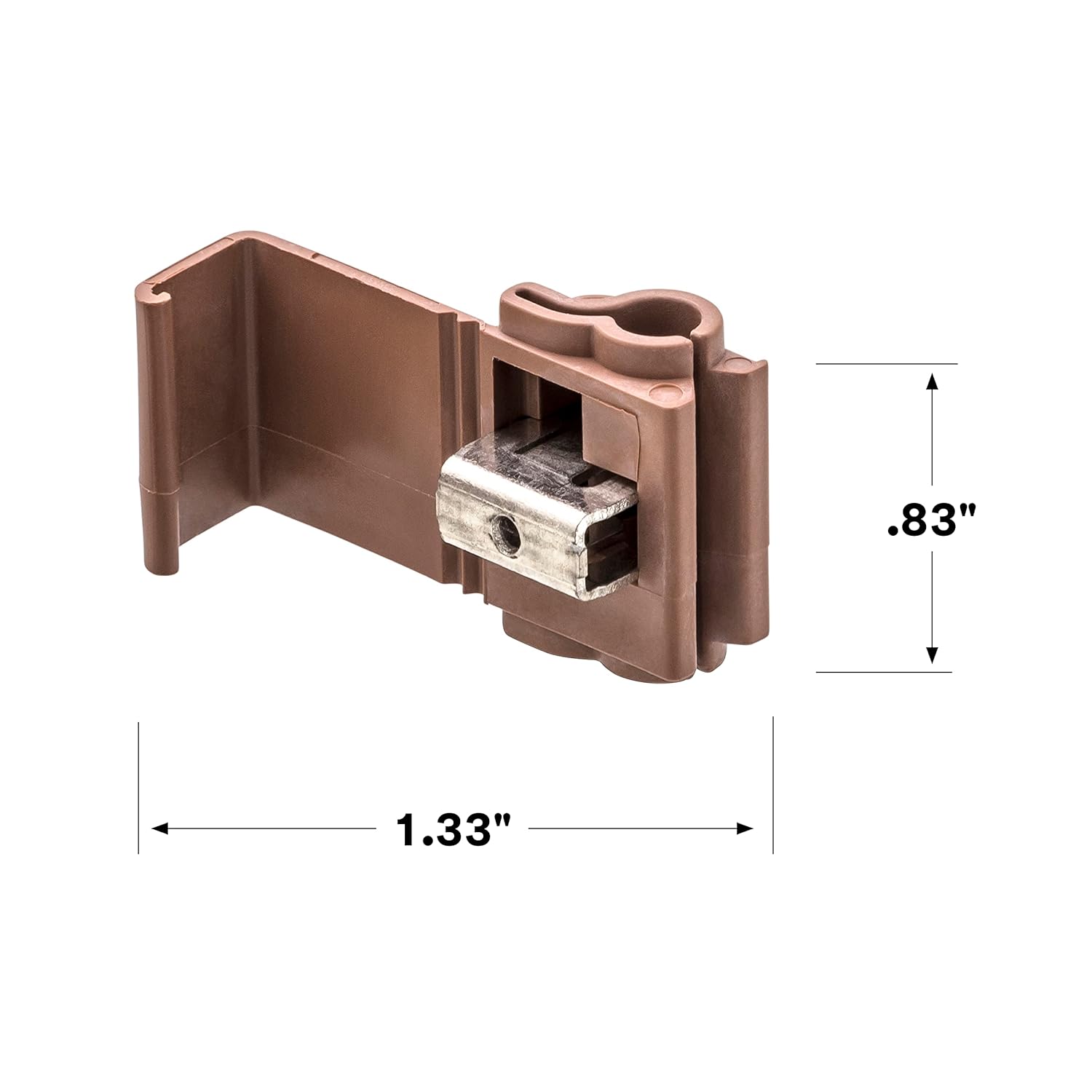

The 3M 567 Electrical IDC is a brown, flame retardant, UL Listed run and tap connector. It is designed for 18-14 AWG tap and 12-10 AWG run wires. This insulation displacement connector electrically connects a tap wire to a run wire while insulating the connection. Suitable for control circuit, fixture, appliance, signal, PA systems, and automotive wiring.
- Flame Retardant
- UL Listed
- Run and Tap
- 18-14 AWG Tap
- 12-10 AWG Run
Product Highlights
The 3M 567 IDC connector is ideal for various electrical connections, offering a reliable and insulated connection for tap and run wires with a flame-retardant design.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: 567
-
Country of Origin: USA
Technical Specifications
-
Color: Brown
-
Material: Brass
-
Connector Type: Idc
-
Contact Material: Brass
-
Insulation Material: Thermoplastic
-
Brands: Scotchlok™
-
CSA File Number: LR15503, LR32411
-
Case Quantity: 1000
-
Conductor Sizes (Imperial): 10 AWG (Run), 12 AWG (Run), 14 AWG (Tap), 18 AWG (Tap)
-
Conductor Sizes (Metric): 1 mm² (Tap), 2.5 mm² (Tap), 4 mm² (Run), 6 mm² (Run)
-
Connection Type: Run & Tap
-
Connector Style: Insulation Displacement
-
Flame Retardant: Yes
-
Maximum Conductor Size (Imperial): 10 AWG (Run), 14 AWG (Tap)
-
Maximum Conductor Size (Metric): 6 mm² (Run)
-
Maximum Operating Temperature (Celsius): 105 ℃
-
Maximum Operating Temperature (Fahrenheit): 221 ℉
-
Maximum Recommended Voltage Rating: 600 V
-
Minimum Conductor Size (Imperial): 12 AWG (Run), 18 AWG (Tap)
-
Minimum Conductor Size (Metric): 4 mm² (Run)
-
Moisture Resistant: No
-
Package Quantity: 1000
-
Product Type: Run & Tap, Connector
-
Recommended Crimping Tool: E-9BM or 9 in. Linemans Pliers
-
Run Maximum Insulation Outer Diameter (Imperial): 0.19 in
-
Run Maximum Insulation Outer Diameter (Metric): 4.8 mm
-
Tap Maximum Insulation Outer Diameter (Imperial): 0.19 in
-
Tap Maximum Insulation Outer Diameter (Metric): 4.8 mm
-
UL File Number: E23438
-
Voltage Application: Low Voltage
-
Wire Connector Type: IDC Connectors
-
Insulation Type: Fully Insulated
-
Voltage Rating: 600 VAC
-
Finish: Tin Plated
-
Temperature Rating: 105 deg C
-
Standard & Approvals: C22.2 No 0. 188-MI983, LR15503, LR32411 CSA Certified, RoHS Compliant, UL 486C, UL E23438 Listed
-
Maximum Insulation O.D: 0.19 in (Run)
-
Application: For Electrically Connect A (Tap) Wire End to A Through (Run) Wire and Insulate the Connection
