3M 567 electrical idc 18-14 awg tap 12-10 awg run 1000/case

Product Description

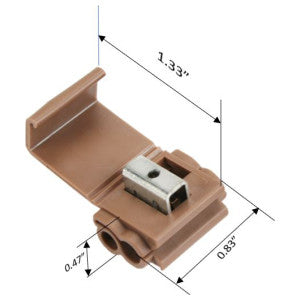

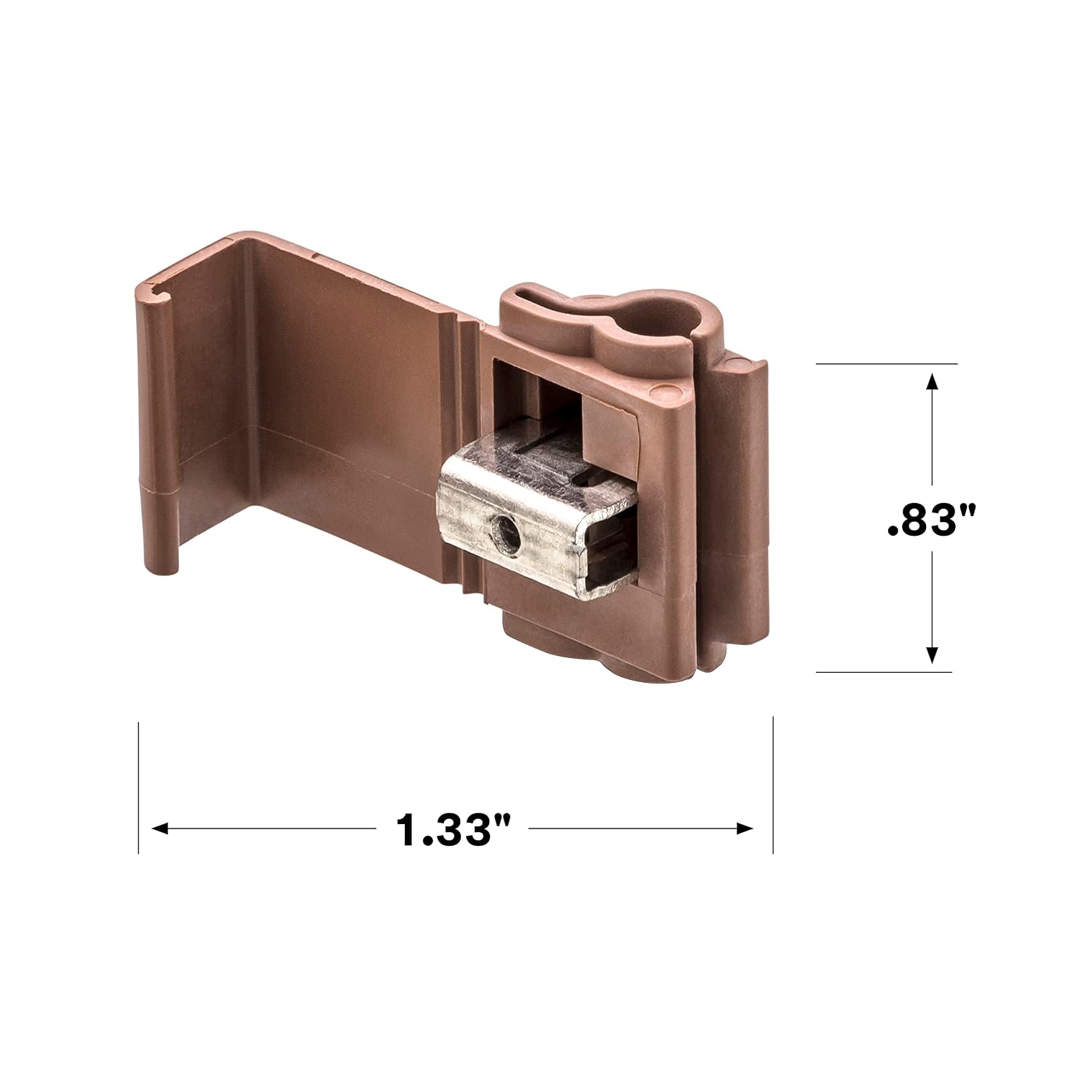

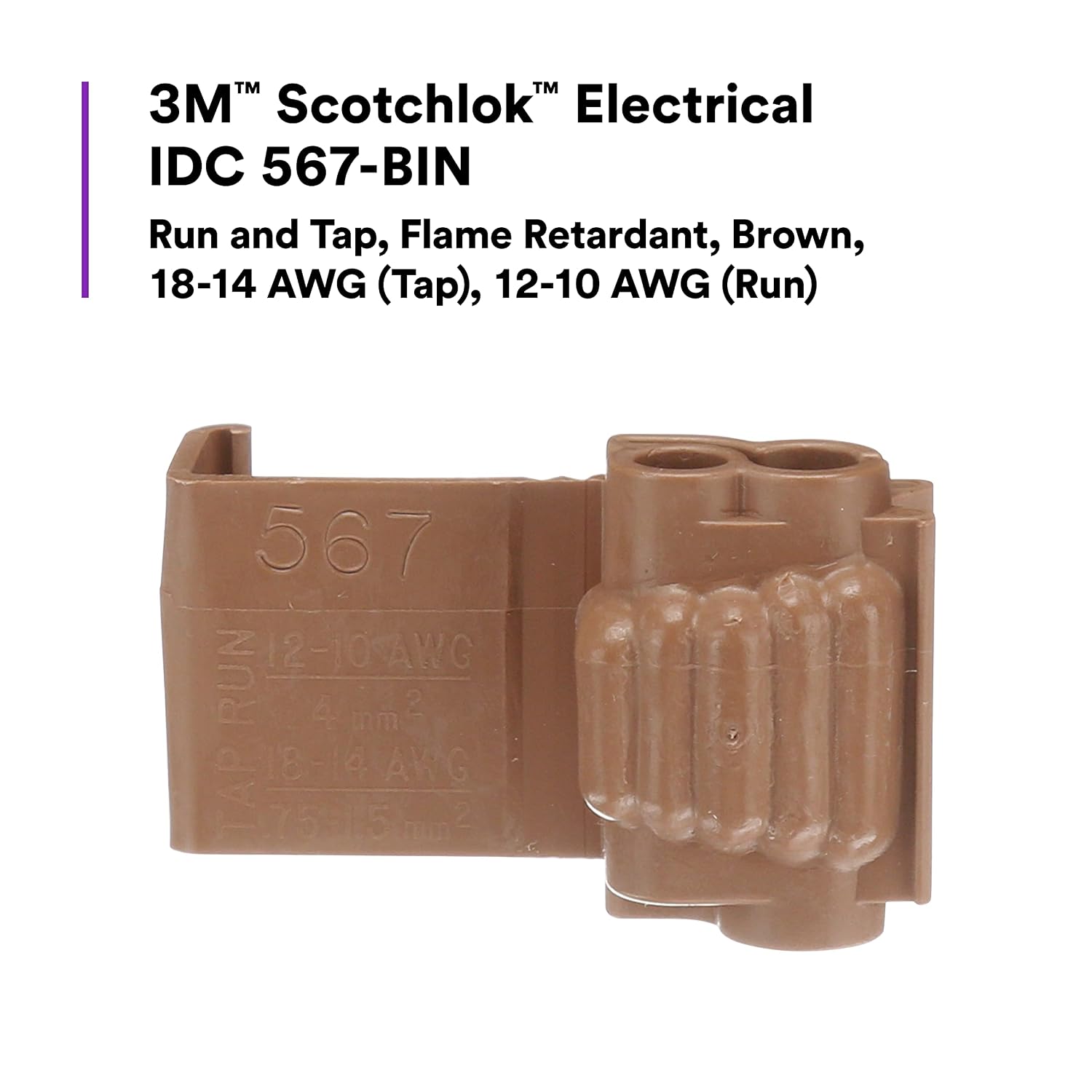

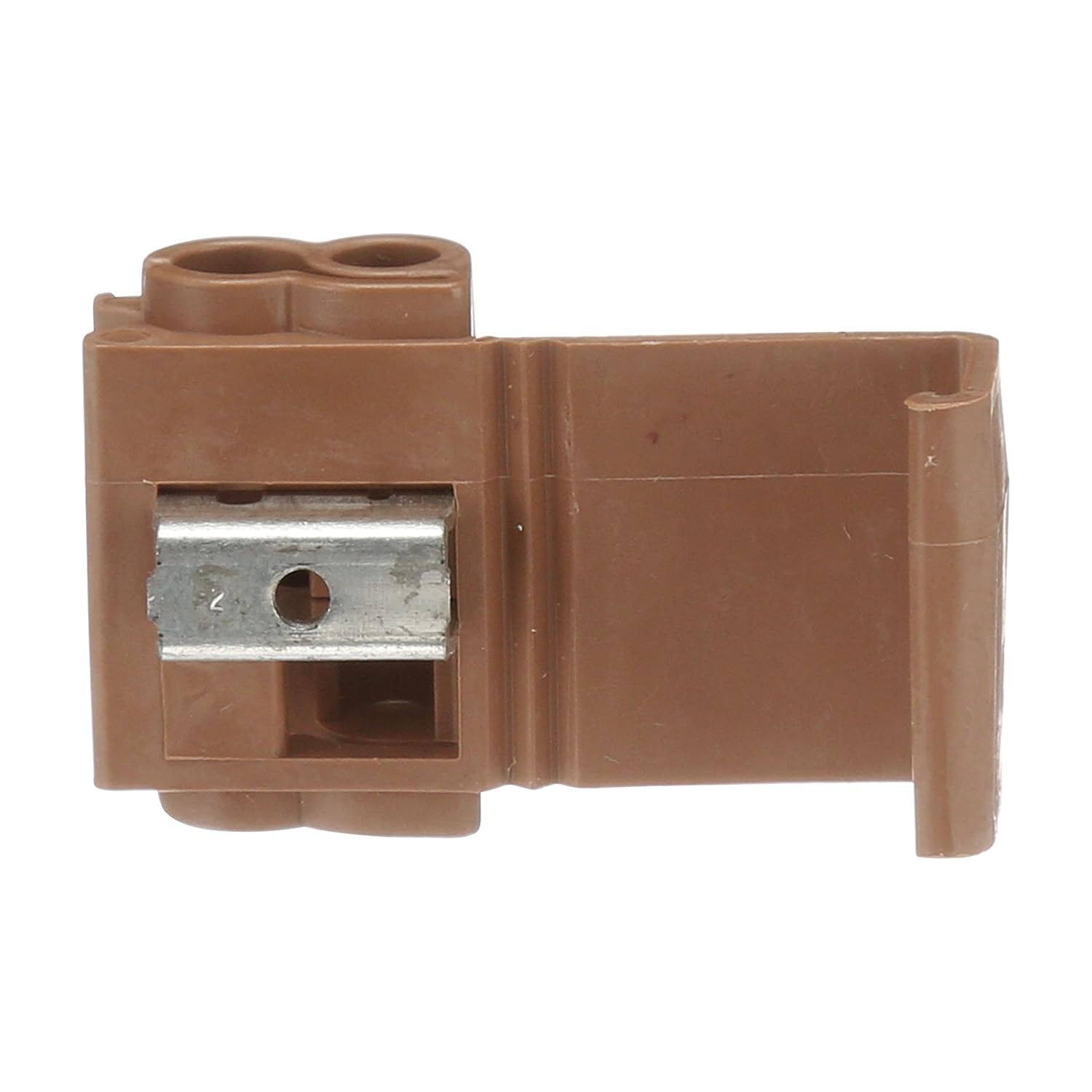

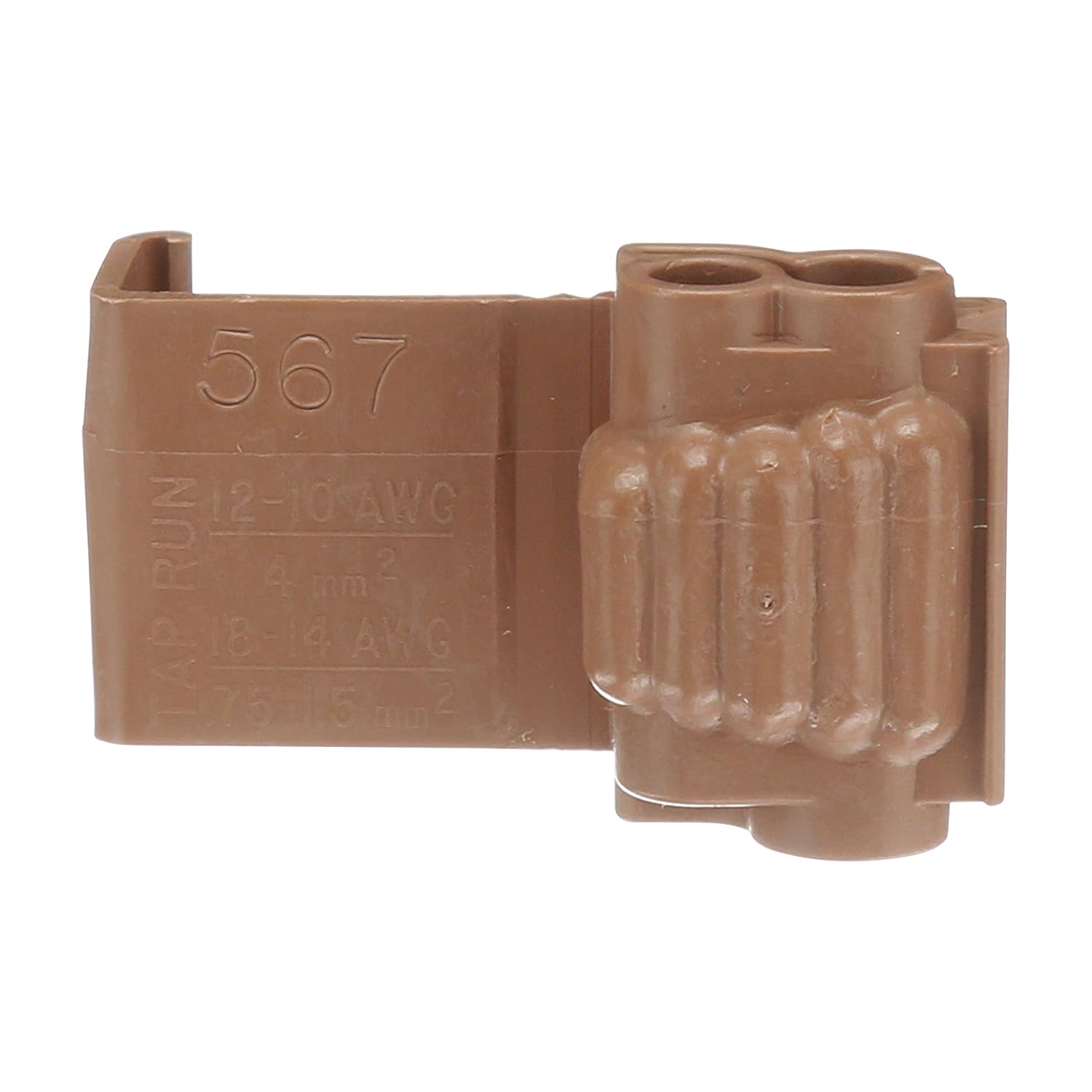

The 3M 567 Electrical IDC is an insulation displacement connector designed for run and tap electrical connections. It electrically connects a tap wire (18-14 AWG) to a run wire (12-10 AWG) while providing insulation. This self-stripping connector is polypropylene insulated and flame retardant. It is rated for 600V building wire and 1000V for signs, fixtures, and luminaires, withstanding temperatures up to 221°F (105°C). It is suitable for control circuit, appliance, and automotive wiring.

• Electrically connects 18-14 AWG tap wires to 12-10 AWG run wires.
• Features polypropylene insulation, self-stripping design, and flame retardant properties.
• Rated for 600V building wire and 1000V for signs, fixtures, and luminaires.

Product Highlights

UL Listed, RoHS Compliant, and CSA Certified for various electrical applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 567
• Country of Origin: USA

Technical Specifications

• Color: Brown
• Contact Material: Brass
• Insulation Material: Flame Retardant Polypropylene
• Connector Type: IDC
• Connection Type: Run & Tap
• Wire Size (AWG): 18 to 14 (Tap), 12 to 10 (Run)
• Wire Size (Metric): 1 mm² (Tap), 2.5 mm² (Tap), 4 mm² (Run), 6 mm² (Run)
• Wire Type: Solid/Stranded Copper
• Voltage Rating: 600 VAC
• Operating Temperature: 105 °C
• Max Insulation OD Run: 0.19 in
• Max Insulation OD Tap: 0.145 in
• Finish: TiN Coated
• Insulation Type: Fully Insulated
• Max. Number of Cores: 2
• Moisture Resistant: No
• Voltage Application: Low Voltage
• CSA File Number: LR15503, LR32411
• UL File Number: E23438
• Thickness: 0.03 in
