Product Description

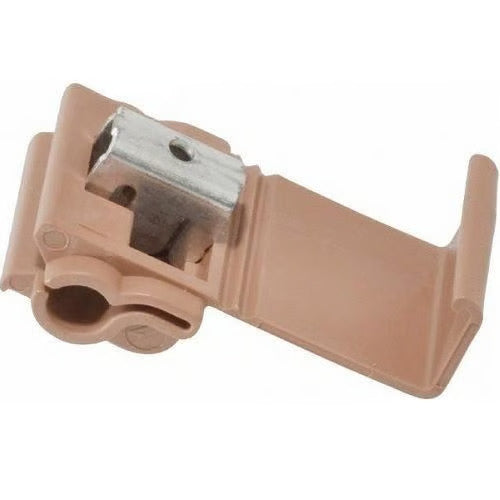

The 3M 567-BOX SLF-STRIP TAP Connector is designed to provide a reliable connection for tap wires to run wires while maintaining insulation. This insulation displacement connector is suitable for various wiring applications including control circuits, fixture connections, and appliance wiring.
- Self-stripping design for easy installation
- Compatible with wire sizes from eighteen to fourteen AWG for the tap and twelve to ten AWG for the run
- Flame retardant construction for enhanced safety
Product Highlights
This connector simplifies the wiring process by eliminating the need for additional stripping tools. Its dual element connection aids in secure electrical connections.
Product Information
Standard Information
Technical Specifications
-
Type: Insulation Displacement
-
Wire Size: 18 to 14 AWG (Tap) / 12 to 10 AWG (Run)
-
Voltage Rating: 600 VAC
-
Temperature Rating: 105 deg C
-
Material: Flame Retardant Polypropylene
-
Finish: Tin Plated
-
UL and CSA Standards: Certified
-
Dimensions: 0.03 inches thick
