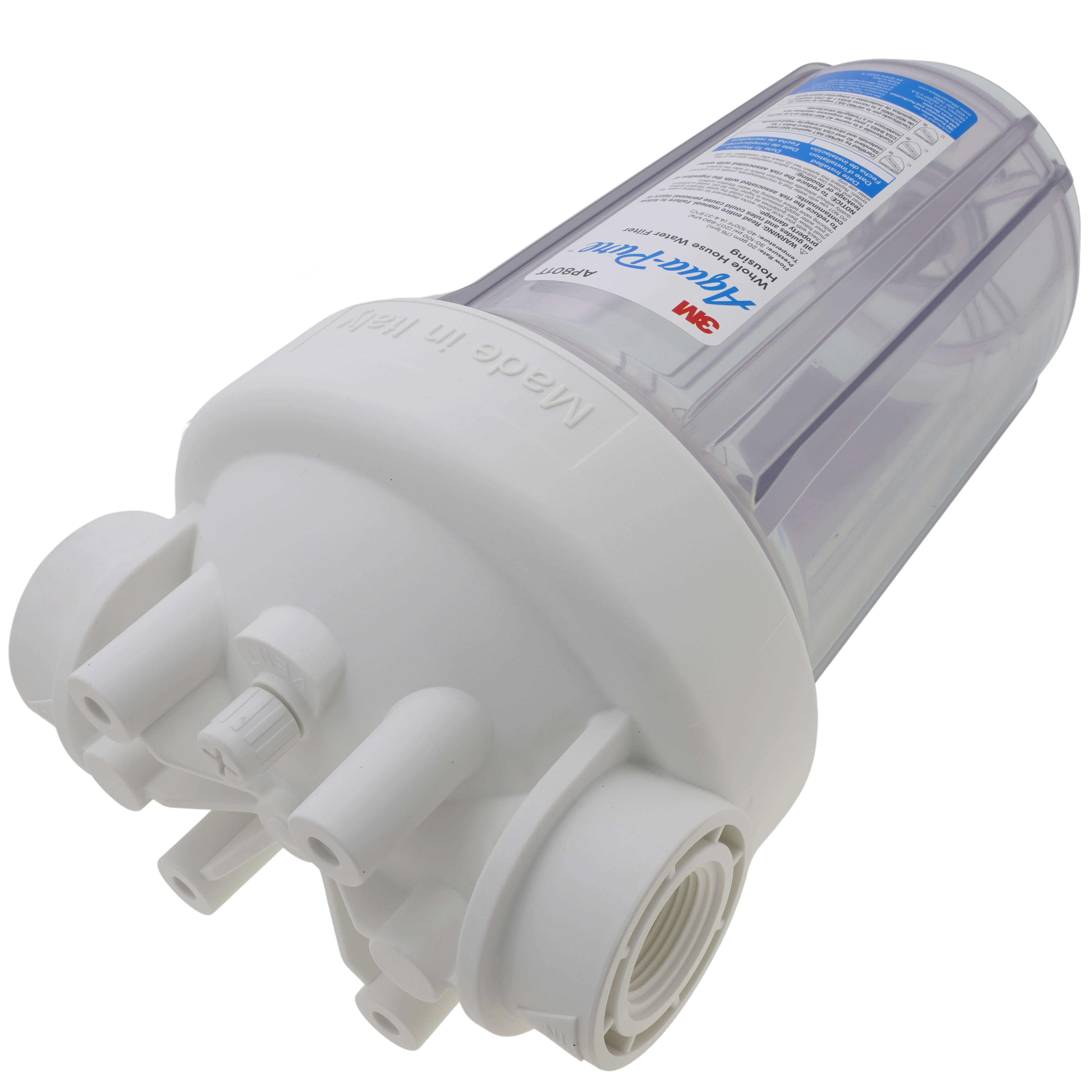

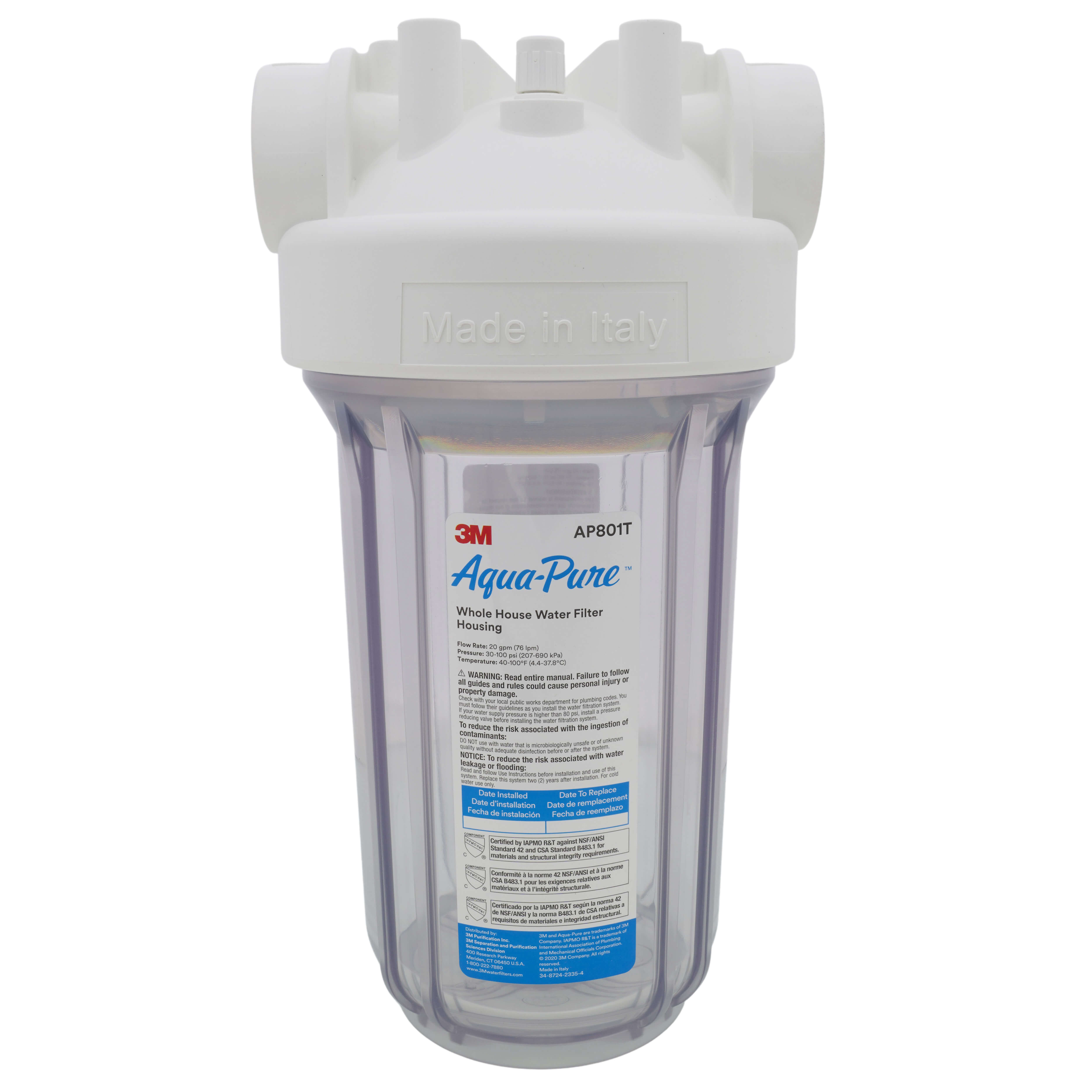

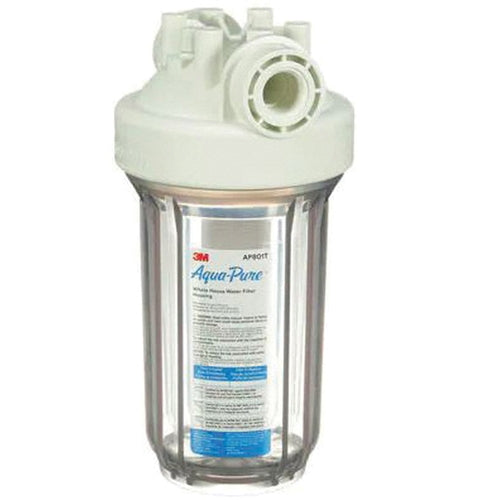

3M 5639203 Aqua-Pure AP800 Series Large Diameter Whole House Water Filter Housing 20 gpm

Product Description

The 3M Aqua-Pure 5639203 is a large diameter whole house water filter housing designed for effective filtration. This model is part of the AP800 series and features a one inch NPT inlet and outlet for easy installation. It operates at a flow rate of twenty gallons per minute.

• Includes single clear sump and mounting hardware.
• Compatible with long-life AP810 and AP811 series replacement cartridges.
• Constructed from clear plastic for easy monitoring.

Product Highlights

This filter housing protects plumbing fixtures and appliances by effectively reducing sediment, rust, and minerals.

Product Information

Standard Information

• Brand: 3M Purification
• Model Number: AP801T

Technical Specifications

• Flow Rate: 20 gpm
• Temperature Rating: 40 - 100 °F
• Pressure Rating: 30 - 100 psi
• Dimensions: 7.1875 inches diameter x 14.1875 inches height
• Material: Plastic
• Color: Clear
• Warranty: 2 year limited
• Standards/Approvals: CSA B483.1, IAPMO Certified, NSF/ANSI 42
