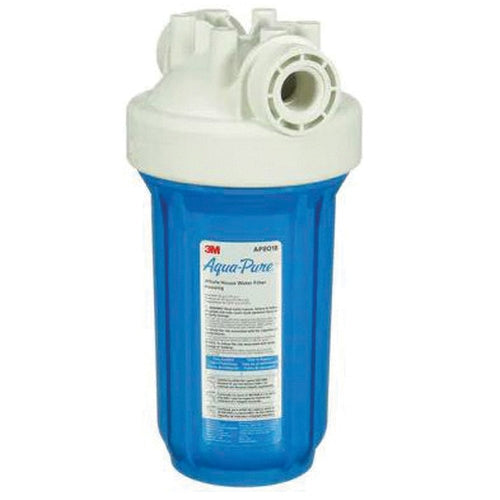

3M 5639201 Aqua-Pure AP800 Series Large Diameter Whole House Water Filter Housing 20 GPM

Product Description

The 3M Aqua-Pure 5639201 is a whole house water filter housing designed to accommodate a 1 inch NPT inlet and outlet. The housing is made of plastic and features a blue finish. It is ideal for large diameter filtration applications. It includes a single sump, along with a mounting bracket, screws, a housing wrench, and an O-ring kit with lubricant. The product supports a flow rate of twenty gallons per minute.

• Accepts AP810, AP811, and AP817 series replacement cartridges.
• Built-in pressure relief valve for easy cartridge changes.
• Temperature rated from forty to one hundred degrees Fahrenheit and pressure rated from thirty to one hundred psi.

Product Highlights

This filter housing provides a convenient solution for whole house water filtration, protecting plumbing and enhancing water quality throughout your home.

Product Information

Standard Information

• Brand: 3M Purification
• MPN: 5639201

Technical Specifications

• Model Number: AP801B
• Dimensions: 7-3/16 inches diameter x 14-3/16 inches height
• Flow Rate: 20 gpm
• Material: Plastic
• Pressure Rating: 30 - 100 psi
• Temperature Rating: 40 - 100 degrees Fahrenheit
• Warranty: 2 year limited
• Standards: CSA B483.1, IAPMO Certified, NSF/ANSI 42
