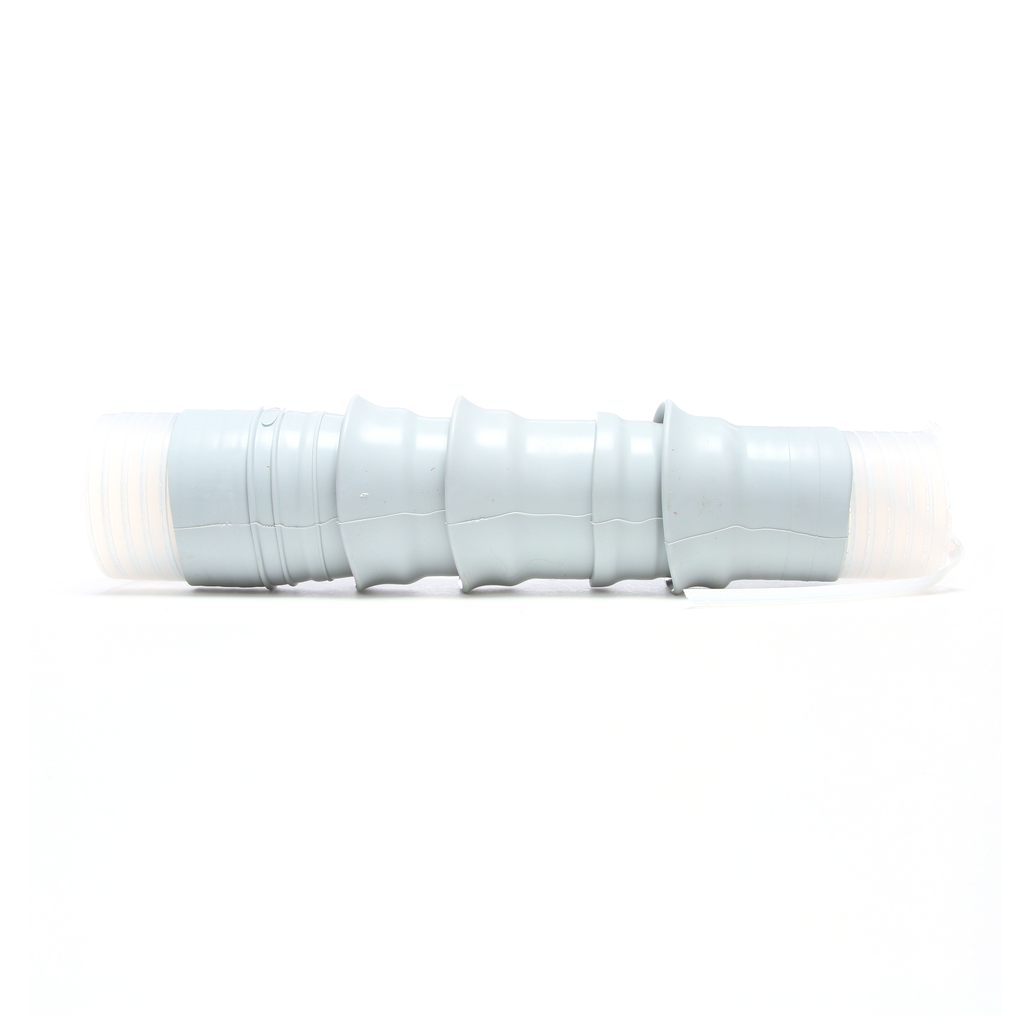

3M 5633K Cold Shrink QT-II Termination Kit (3 Terms/Kit)

Product Description

The 3M 5633K Cold Shrink QT-II Termination Kits provide easy installation for a broad spectrum of indoor and outdoor applications. When the terminator is slipped over a properly prepared cable and the core is removed, the terminator immediately shrinks to the cable's dimensions. The result is a void-free, flexible seal without special tools or torches. These kits are suitable for cable termination applications.

• Silicone cold shrink application provides constant radial pressure, "living seal"
• High dielectric-constant material regulates the distribution of electric field stress
• Silicone rubber insulation is track-resistance and hydrophobic

Product Highlights

The 3M Cold Shrink QT-II termination kits provide a void-free, flexible seal for easy cable termination in indoor and outdoor applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 5633K
• Country of Origin: US - United States

Technical Specifications

• Type: QT-II
• Brand: 3M
• Color: Gray
• Voltage: 8 kV
• Cable Type: Tape Shield; UniShield(R); Wire Shield
• Applications: Cable Termination
• Conductor Size: 2/0 AWG
• Indoor Outdoor: Outdoor Skirted
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 26121648
• Length: 12 in.
• Voltage Rating: 5 to 15 KV
• BIL Rating: 110 KV
• Number of Terminations: 3
• Insulator Material: Silicone Rubber
• Insulator Type: (4) Skirted
• Cable Insulation Outer Diameter: 0.64 to 0.9 Inch
• Connector Type: Lug (Not Included)
• Cable Jacket Outer Diameter: 0.8 to 1.2 Inch
• Applicable Standard: IEEE
• Number of Conductors: 1
• Application: For tape, wire, shield and unshield cable applications
• Includes: (3) 4-Skirt 1-Piece Cold Shrink Termination
• Material: Silicon Rubber
• Number of Pieces: 3
• Series: Quick Term-II 5630K
• Specifications: 0.64 to 0.9 in OD Insulation 12 in Max Installed Length
• Standards/Approvals: IEEE 48 Class I|OSHA Approved|TWA Approved
• Suitable For Use With: Single Core Tape Shield, Wire Shield and UniShield Cable
• Manufacturer Part Number: 7000031452
• Brand Name: 3M
• Family group: TAPE/INSULATING
• Manufacturer: 3M
• Cable Insulation Outside Diameter Range: 0.64-0.90 in
• Cable Insulation Outside Diameter Range (Metric): 16.3-22.9 mm
• Cable Shielding: Wire Shield, Tape Shield, UniShield®, Wire-Over-Tape Shield
• Case Quantity: 1
• Conductor Sizes (Imperial): 1 AWG, 2 AWG, 4 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil, 300 kcmil
• Insulation Level: 100 %, 133 %
• Insulation Outer Diameter (Imperial): 0.64 in, 0.65 in, 0.66 in, 0.67 in, 0.68 in, 0.69 in, 0.7 in, 0.71 in, 0.72 in, 0.73 in, 0.74 in, 0.75 in, 0.76 in, 0.77 in, 0.78 in, 0.79 in, 0.8 in, 0.81 in, 0.82 in, 0.83 in, 0.84 in, 0.85 in, 0.86 in, 0.87 in, 0.88 in, 0.89 in, 0.9 in
• Insulation Outer Diameter (Metric): 16.256 mm, 16.51 mm, 16.764 mm, 17.018 mm, 17.272 mm, 17.526 mm, 17.78 mm, 18.034 mm, 18.288 mm, 18.542 mm, 18.796 mm, 19.05 mm, 19.304 mm, 19.558 mm, 19.812 mm, 20.066 mm, 20.32 mm, 20.574 mm, 20.828 mm, 21.082 mm, 21.336 mm, 21.59 mm, 21.844 mm, 22.098 mm, 22.352 mm, 22.606 mm, 22.86 mm
• Insulation Rejacketing: No
• Lug/Stem Connector Included in Kit: No
• Maximum Installed Length: 12.00 in
• Number of Skirts: 4
• Product Color: Gray
• Product Series: 5630K
• Rated Voltage: 15 kV
• Color Family: Gray
• Allowable Gauge Range: 3/0 - 300
• Volts AC Range: 5kV - 15kV
• BIL: 110 kV
