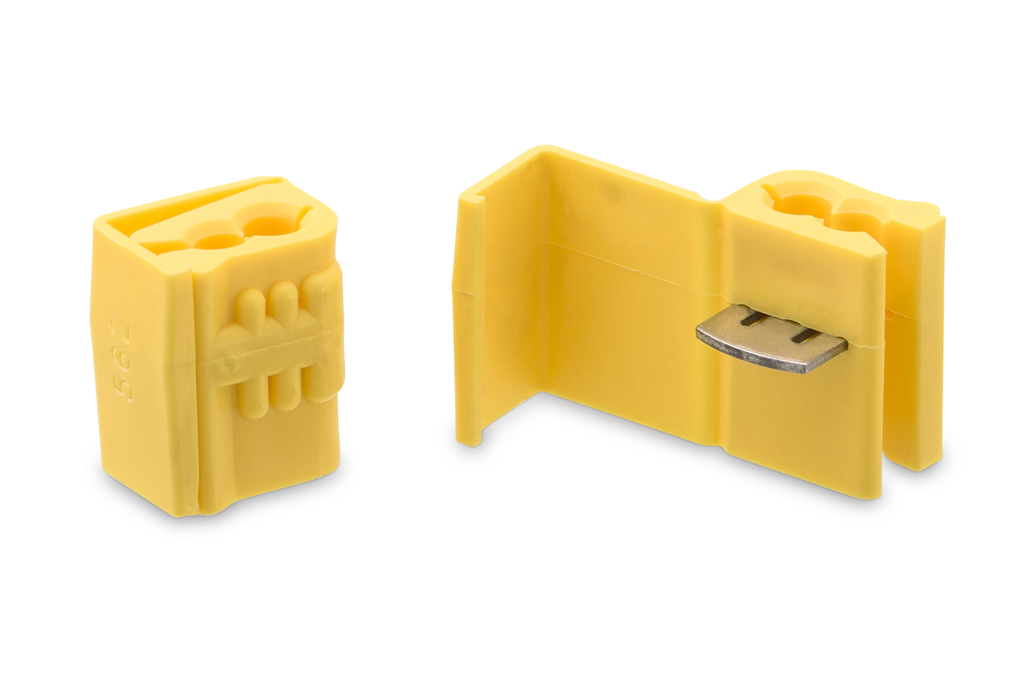

3M 562-POUCH 3M Scotchlok IDC C Insulation Displacement Connector 600 Volt Yellow 100 per pouch

Product Description

3M Scotchlok Insulation Displacement Connector 562-POUCH is designed for tap or parallel splicing. It is suitable for use with solid or stranded wire sizes ranging from twelve to ten AWG. With a polypropylene insulation, this connector is self-stripping and flame-retardant, ensuring safe and reliable connections.

• Rated for 600 volts, making it ideal for low-voltage applications.
• RoHS compliant and UL listed for safety standards.
• Connector accommodates wire sizes 12/10 AWG for versatile use.

Product Highlights

This product is engineered to ensure secure electrical connections, reducing the need for manual stripping and allowing for quick installations.

Product Information

Standard Information

• Application: For connecting a tap wire end to a through wire.
• Temperature Rating: 194 deg F.

Technical Specifications

• Type: Insulation Displacement Connector
• Voltage Rating: 600 VAC
• Color: Yellow
• Material: Polypropylene
• Flame Retardant: Yes
• Contact Material: Brass
• Specifications: 0.19 in Dia Max Insulation
• Standards/Approvals: RoHS Compliant, UL 486C Listed
