3M 562-BIN Electrical Insulation Displacement Connector 12/10 AWG

Product Description

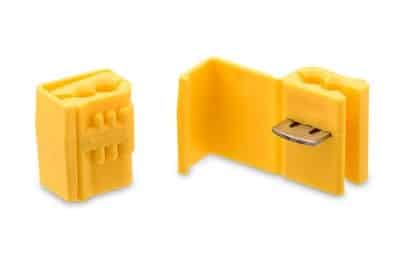

The 3M Scotchlok 562-BIN is an Electrical Insulation Displacement Connector designed for use with both twelve and ten gauge stranded wires. This connector is ideal for making insulated connections between wire ends and run wires, offering functionality for both tap and run applications. The connector features polypropylene insulation and a tin-plated brass u-contact, ensuring durability in high-temperature conditions. This connector is color-coded for easy identification of wire sizes, making setup quick and straightforward. It is compatible with the E-9BM crimping tool for efficient connection establishment.

• Rated for 600 VAC and suitable for temperatures up to 194 degrees Fahrenheit.
• Self-stripping design for easy and fast installation.
• UL approved and compliant with RoHS 2011/65/EU standards.

Product Highlights

Reliable electrical connection for both tap and run wires, suitable for use with stranded and solid wire.

Product Information

Standard Information

• Brand: 3M
• MPN: 562-BIN

Technical Specifications

• Wire Size: 12 AWG Solid/Stranded, 10 AWG Stranded
• Maximum Insulation Diameter: 0.19 inches
• Temperature Rating: 194 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Material: Polypropylene Insulation, Tin-Plated Brass
• Connection Type: Tap or Run
• Standard Package Quantity: 1000 per bin
