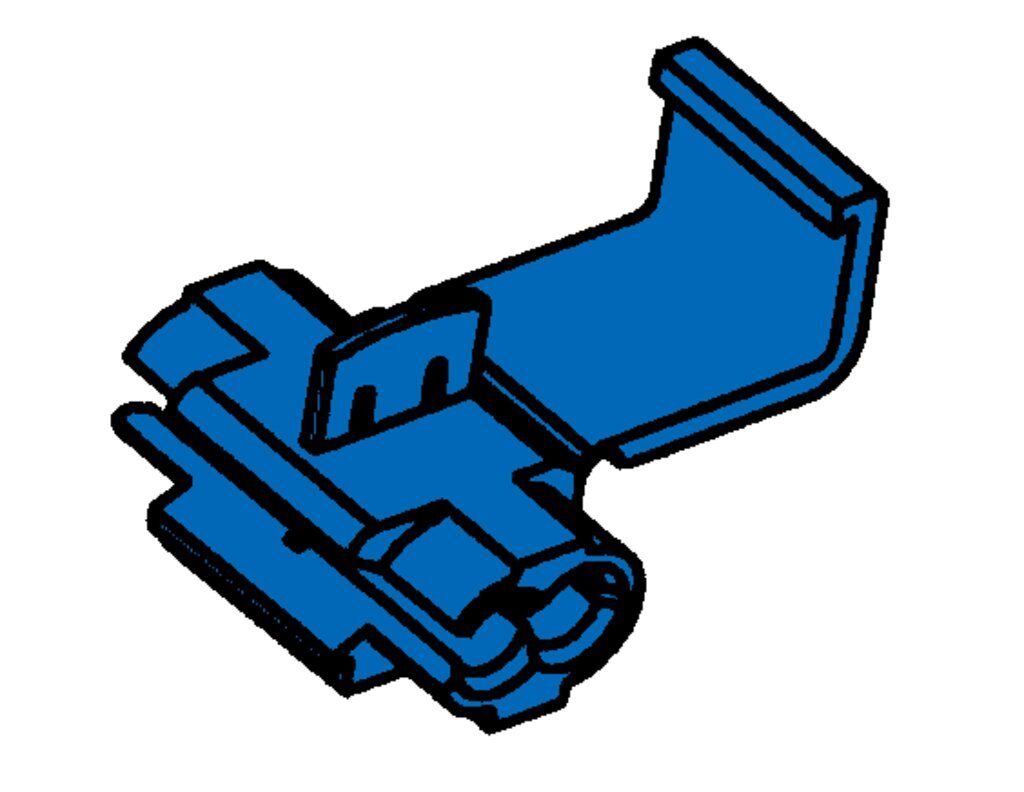

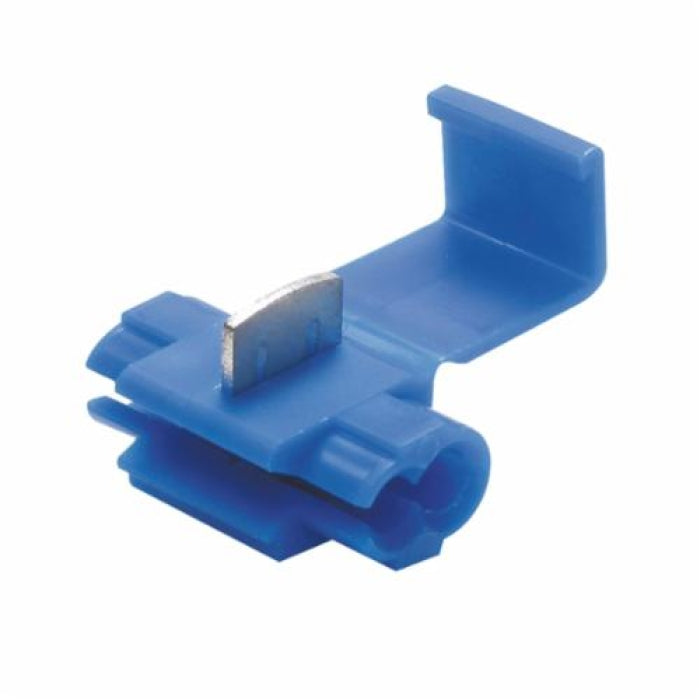

3M 560B-POUCH Flame-Retardant Tap Connector 14 AWG (Tap)/18 to 16 AWG (Run)

Product Description

3M Scotchlok 560B-POUCH is a tap connector that electrically connects a tap wire to a run wire while providing insulation. It uses a color-coded design to help easily identify wires during installation. The brass element self-penetrates the wire for a secure connection. This connector is suitable for various applications including industrial, automotive, and marine systems. It accommodates 18 to 16 AWG stranded and solid wire as taps or 14 AWG stranded wire in parallel splices. It's flame-retardant and can withstand temperatures up to one hundred ninety-four degrees Fahrenheit. The polypropylene shell provides durability and protection against shorts in complex circuits.

• Easy installation with self-sealing design
• UL Listed and RoHS compliant for safety
• Suitable for use in circuits rated up to 600V

Product Highlights

This connector is designed for reliable performance and safety in electrical wiring tasks.

Product Information

Standard Information

• Brand: 3M
• MPN: 560B-POUCH

Technical Specifications

• Color: Blue
• Material: Brass
• Voltage Rating: 600 VAC
• Temperature Rating: 194 degrees F
• Max Insulation Diameter: 0.145 inches
• Insulation Type: Polypropylene
• Compliance: UL Listed, RoHS Compliant
