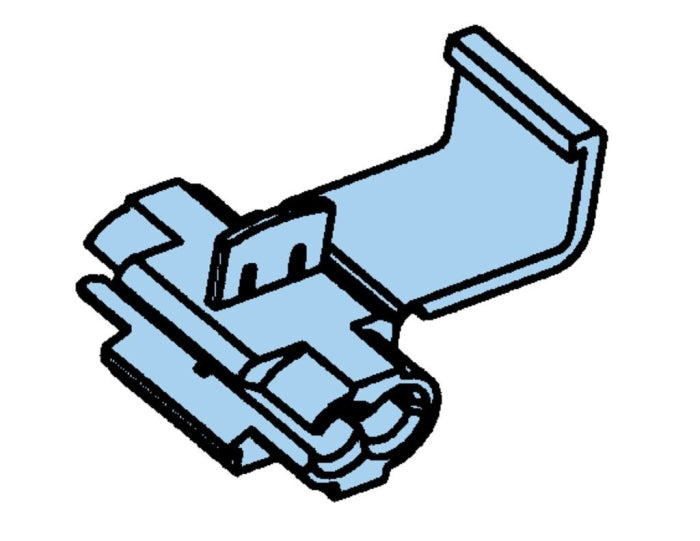

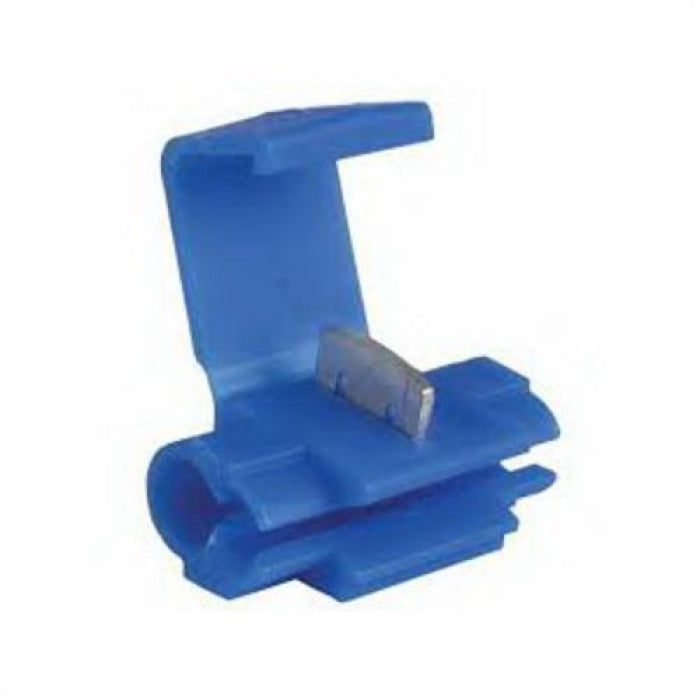

3M 560-POUCH Flame-Retardant Tap Connector 14 AWG (Tap)/18 to 16 AWG (Run)

Product Description

The 3M Scotchlok 560-POUCH is a flame-retardant tap connector designed for electrical connections. This connector works with 14 AWG stranded wire for tap and running connections. It is designed for solid and stranded wire sizes ranging from eighteen to sixteen AWG. The built-in brass element in the connector ensures excellent conductivity, while the tin plating provides corrosion resistance.

This connector is useful in various applications including automotive, marine, and trailer wiring. Its color-coded feature helps in managing wire sizes effectively. The connector is UL Listed, CSA Certified, and RoHS compliant.

• For use with 18 to 16 AWG solid and stranded wire
• UL Listed and RoHS compliant
• Brass components for good conductivity

Product Highlights

The 3M Scotchlok 560-POUCH is suitable for general-purpose electrical connections.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: 560-POUCH

Technical Specifications

• Max Voltage: 600 V
• Temperature Rating: 221 °F
• Wire Size Compatibility: 14 AWG (Tap), 18-16 AWG (Run)
• Material: Brass with tin plating
• Insulation Type: Polypropylene insulated
• Diameter: 0.145 in Max Insulation
