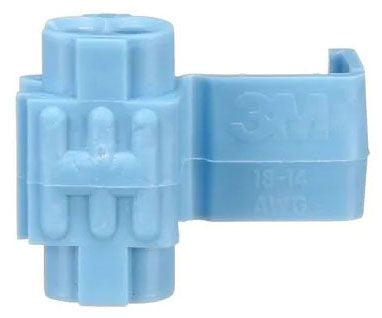

3M 560-BOX Self-Strip Tap Conn

Product Description

The 3M 560-BOX is a self-strip tap connector designed for electrical connections. This connector accommodates wire sizes ranging from 18 to 16 AWG solid or stranded for run connections and 14 AWG stranded for tap connections. It is made from flame-retardant polypropylene that ensures durability and safety in various applications.

• UL approved and CSA certified for enhanced safety.
• Features a maximum insulation thickness of zero point one four five inches.
• Temperature rating reaches up to two hundred twenty-one degrees Fahrenheit.

Product Highlights

This connector is suitable for use in automotive, marine, and general electrical applications. Its self-strip design allows for easy installation, making it ideal for both professionals and DIY enthusiasts.

Product Information

Standard Information

• Manufacturer: 3M
• Approval: UL 486C, CSA C22.2

Technical Specifications

• Wire Size: 18 to 16 AWG solid/stranded, 14 AWG stranded
• Voltage Rating: 600 Volt
• Color: Light Blue
• Connection Type: Self-Strip Run/Tap
• Standard Package: 100 per box
• RoHS Compliant: Yes
• Made in USA: Yes
