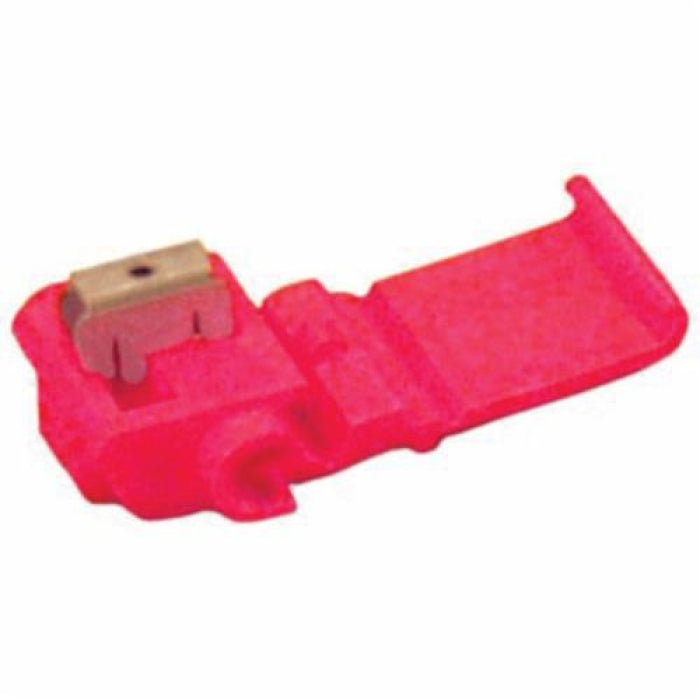

3M 557-POUCH Self-Stripping Electrical Insulation Displacement Connector 22 to 16 AWG

Product Description

3M 557-POUCH is a self-stripping electrical insulation displacement connector. This connector is suitable for wire sizes ranging from twenty-two to sixteen AWG. It effectively connects wires while providing insulation. The device is moisture-resistant and flame-retardant, ensuring safety and durability in various conditions.

• Self-stripping design for ease of use
• Accommodates wire sizes from 22 to 16 AWG
• UL Listed and CSA Certified for reliability

Product Highlights

The 3M 557-POUCH connector is designed for straightforward installation. It is colored red for easy identification of its compatible wire range. Made with polypropylene insulation, this connector minimizes the risk of corrosion with its brass and tin elements.

Product Information

Standard Information

• Manufacturer: 3M
• Part Number: 557-POUCH

Technical Specifications

• Wire Size Compatibility: 22 to 16 AWG
• Max Insulation Diameter: 0.12 inches
• Temperature Rating: 221 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Color: Red
• Standards/Approvals: UL Listed, CSA Certified, RoHS Compliant
