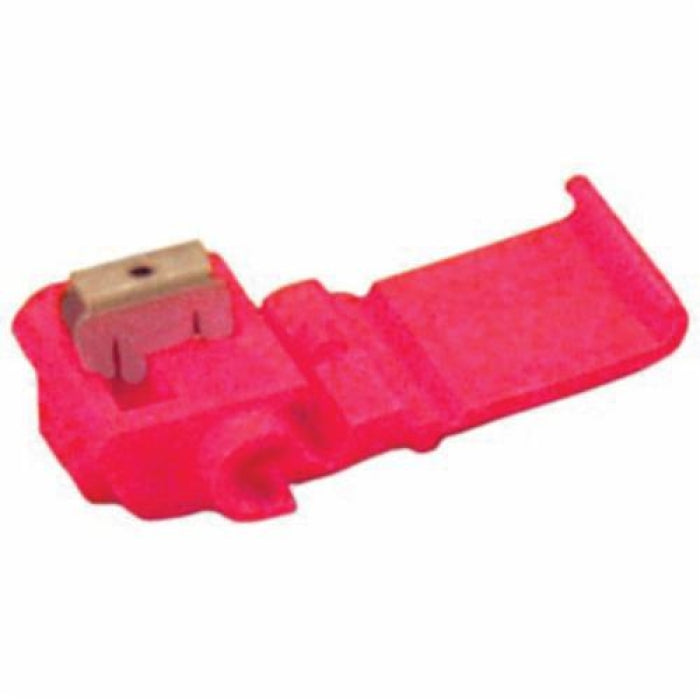

3M 557-BULK Scotchlok Electrical Idc Pigtail Self-Stripping 22 to 16 AWG

Product Description

The 3M Scotchlok 557-BULK is a self-stripping electrical insulation displacement connector designed for use with wires sized from twenty-two to sixteen AWG. This connector simplifies wire connection tasks with its easy color-coding system, allowing for quick identification of wire sizes. It holds both solid and stranded wires securely and ensures reliable electrical connections.

The brass component of this connector is tin-plated to resist corrosion and enhance conductivity. This connector is compliant with UL standards and CSA certifications, ensuring a high quality and reliable product for all electrical applications.

• Moisture-resistant insulation for enhanced protection.
• Compatible with the E-9BM crimping tool for effortless application.
• Works with various wire types including solid and stranded.

Product Highlights

The 3M 557-BULK connector offers a dual-element connection while insulating wires, providing safety and reliability in electrical applications.

Product Information

Standard Information

• Brand: 3M
• MPN: 557-BULK

Technical Specifications

• Wire Size: 22 to 16 AWG Solid/Stranded
• Voltage Rating: 600 V
• Temperature Rating: 221 deg F
• Maximum Insulation Diameter: 0.12 inches
• Connection Type: Pigtail
• Standard Package: 5000 Bulk
• Approval: UL, CSA
• Material: Flame Retardant Polypropylene
