3M 5553 Cold Shrink 5 KV (3 Splices/Kit) Rubber Splice Kit

Product Description

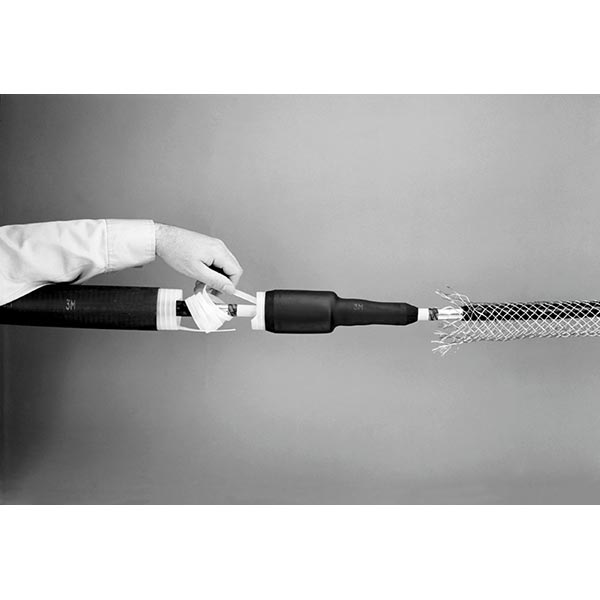

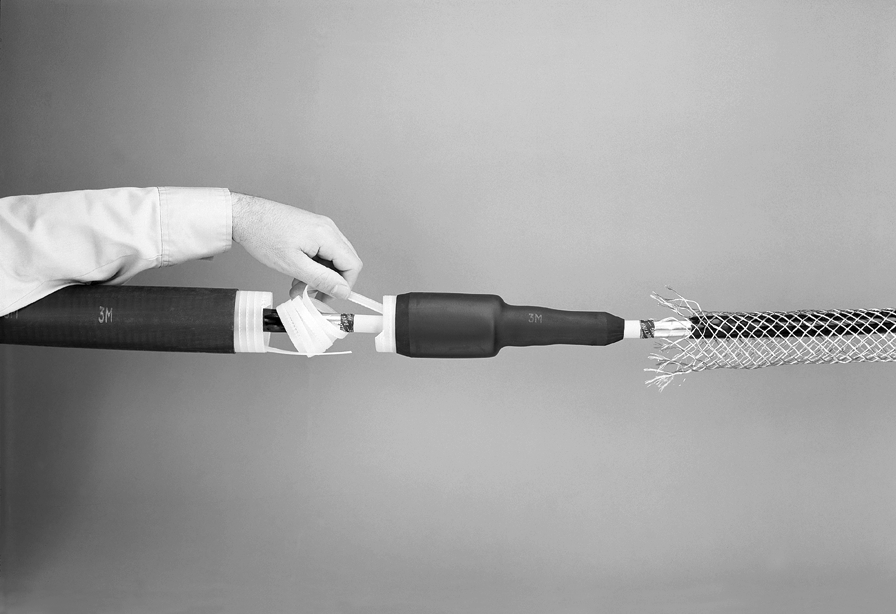

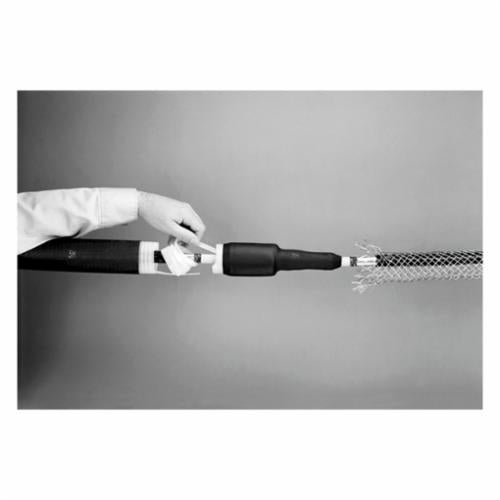

The 3M Cold Shrink Rubber Splice Kit, MPN 5553, is designed for creating splices on insulated cables. This kit contains all required materials to perform three single conductor splices on tape shield, wire shield, or UniShield cables. This splice kit is widely used in electric, construction, and repair applications.

• Rated for five/eight kV applications
• Manufactured using EPDM rubber for flexibility
• Ideal for solid dielectric cables in indoor and outdoor locations

Product Highlights

This kit meets IEEE 404 standards, making it reliable for splicing needs. It can be used directly underground as well as in overhead applications.

Product Information

Standard Information

• Catalog Number: 5553
• Brand: 3M Electrical Products

Technical Specifications

• Voltage Rating: 5/8 kV
• Conductor Size: 500 to 1000 kcmil (Copper/Aluminum)
• Splice Length: 23 inches
• Material: EPDM rubber
• Number of Conductors: 1
• Temperature Rating: 90 to 130 degrees Celsius
• Application: Cable connection for solid dielectric and direct burial
• Contents: (3) Cold Shrink Insulator, (3) Cold Shrink Splice Jacket, (6) Constant Force Spring
