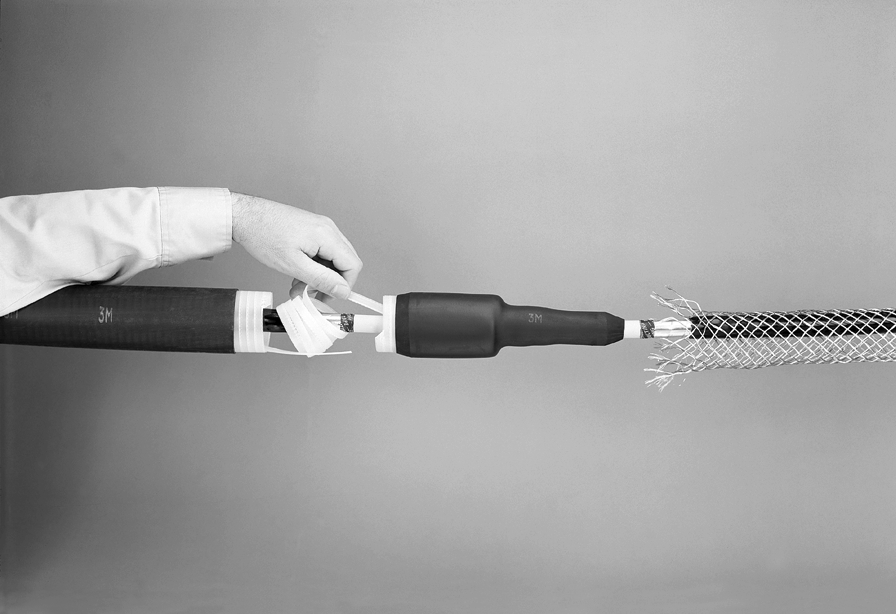

3M 5551 Cold Shrink 5 kV (3 Splices/Kit) Rubber Splice Kit

Product Description

The 3M Cold Shrink Rubber Splice Kit with MPN 5551 is designed for splicing applications on shielded cables. This kit includes everything required to make three splices on tape shield, wire shield or UniShield cables. It is suitable for conductor sizes of one AWG to four AWG. The insulator and jacket are made from durable EPDM material.

• Includes materials for three splices.
• Compatible with solid dielectric cables, both indoor and outdoor.
• Meets IEEE standards for cable splicing applications.

Product Highlights

This splice kit is essential for ensuring reliable and effective connections in various cable situations, offering insulation as well as protection.

Product Information

Standard Information

• Manufacturer: 3M Electrical Products
• Catalog Number: 5551

Technical Specifications

• Voltage Rating: 5/8 kV
• Splice Length: 19 inches
• Cable Size Compatibility: 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 3/0 AWG; 4 AWG; 4/0 AWG (Copper Only); 6 AWG
• Material: EPDM Rubber
• Number of Conductors: 1
• Temperature Rating: 90 to 130 degrees Celsius
• GTIN: 00054007090892
• UPC: 054007090892
