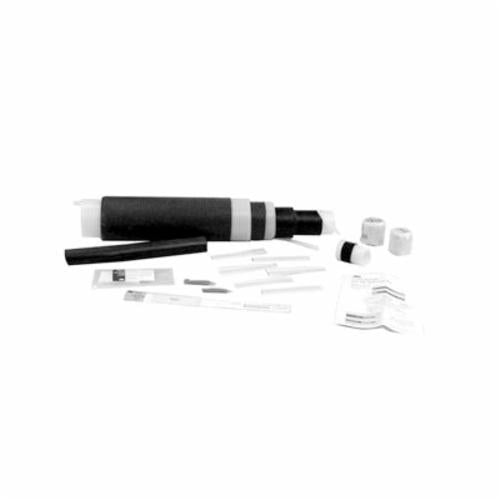

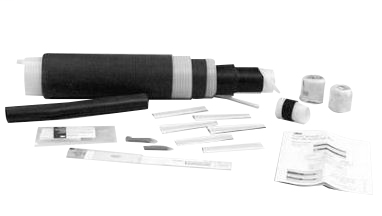

3M 5536A QS-III Splice Kit 35 kV 350-1000 kcmil

Product Description

The 3M Cold Shrink QS-III Splice Kit 5536A is designed for joining 35 kV tape shield, wire shield, UniShield, or longitudinally corrugated shielded power cables. The kit fits type MV-90/MV-105 cables with copper or aluminum conductors. It allows for quick installation with excellent cable size transitions. Rated at 15,000 amps, it provides effective fault current protection.

• Special electrode design reduces electrical stress at the splice interface.
• Suitable for inline splicing, feeder circuits, and submerged installations.
• High-voltage production tested for reliability and performance.

Product Highlights

Engineered for high performance in harsh environments, the 5536A splice kit is suitable for various cable types and applications.

Product Information

Standard Information

• Brand: 3M
• MPN: 5536A

Technical Specifications

• Voltage Rating: 35 kV
• Conductor Size: 350 to 1000 KCMIL
• Cable Insulation Outer Diameter: 1.24 to 2.07 inches
• Cable Type: Longitudinally Corrugated, Tape Shield, UniShield, Wire Shield
• Insulator Type: Cold Shrink Tube, Molded Silicon Rubber
• Number of Conductors: 1
• Application: Inline Splicing, Feeder and Distribution Circuits, Direct Burial Installations, Submerged Locations
• Operating Temperature: 105 degrees C
