3M 5514A QS-III Splice Kit 15 kV 4/0 AWG-500 kcmil

Product Description

The 3M Cold Shrink QS-III Splice Kit 5514A is designed for splicing tape shield, wire shield, UniShield or longitudinally corrugated shielded power cables. This kit supports a voltage rating of fifteen thousand volts and is suitable for cables with copper conductors. It streamlines installation with a factory-tested construction ensuring reliability.

• Rated for fifteen kV class cables
• Special electrode design reduces electrical stress
• Compatible with cable sizes of four-aught AWG to five hundred kcmil

Product Highlights

The cold shrink design allows for quick application and adapts well to various cable sizes, making it ideal for feeder and distribution circuits.

Product Information

Standard Information

• Manufacturer: 3M Electrical Products
• Voltage Rating: 15 kV

Technical Specifications

• Catalog Number: 5514A
• Conductor Size: 4/0 AWG to 500 kcmil
• Cable Type: Longitudinally Corrugated, Tape Shield, Wire Shield, UniShield
• Splice Length: 29 inches
• Temperature Rating: 105 to 140 degrees Celsius

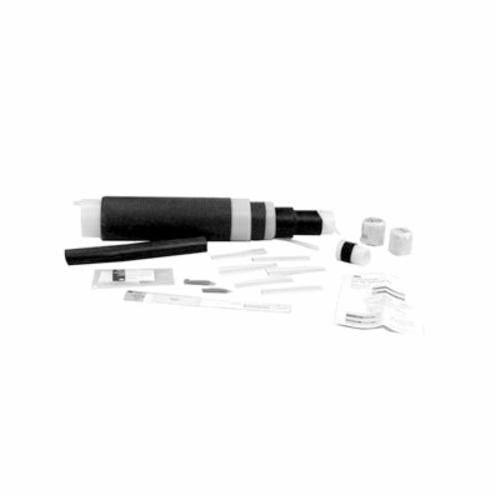

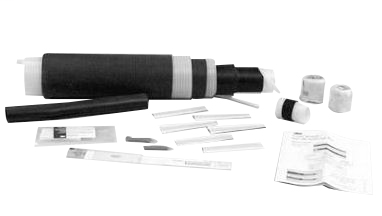

• Items Included: Cold Shrink Silicone Rubber Splice Body, Cold Shrink Adapter Tube, Cold Shrink Jacketing Tube, Red Compound Tubes, Mastic Sealing Strips, Rubber Mastic Tape, Cable Cleaning Pad, Cable Preparation Instructions
