3M 5513A QS-III Splice Kit 15 kV 2 AWG

Product Description

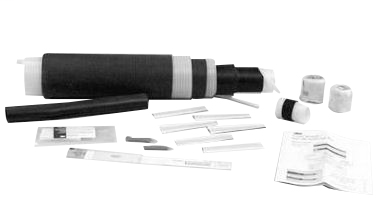

The 3M Cold Shrink QS-III Splice Kit, identified by MPN 5513A, is designed for use with shielded power cables at a voltage class of 15 kV. This kit provides components for joining tape shield, wire shield, UniShield, or longitudinally corrugated shielded cables. It accommodates conductor sizes from 2 AWG to 4/0 AWG, making it versatile for various applications.

• Suitable for 15 kV class splicing applications
• Designed for use with MV-90 and MV-105 cables
• Includes silicone rubber splice body for reliable performance

Product Highlights

This splice kit enables effective in-line splicing for feeder and distribution circuits. It features a simple installation process and is factory tested to ensure functionality and reliability in the field.

Product Information

Standard Information

• Brand: 3M
• MPN: 5513A

Technical Specifications

• Voltage Rating: 15 kV
• Cable Type: Longitudinally Corrugated, Tape Shield, UniShield, Wire Shield
• Conductor Size: 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
• Insulation Size: 0.64 in to 1.01 in OD
• Splice Length: 28 in
• Temperature Rating: 105 to 140 deg C
• Material: EPDM/Silicone Rubber
• Application: Direct Burial Installations, Feeder and Distribution Circuits
• Standards/Approvals: IEEE 404
