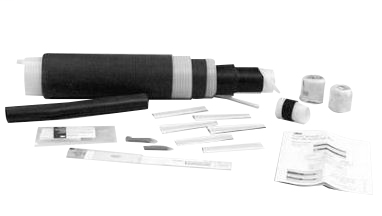

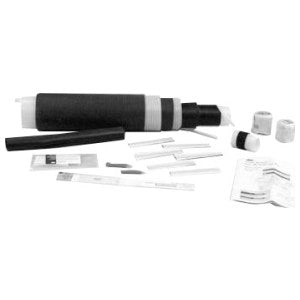

3M 5513A-2-CU QS-III Splice Kit 15 kV 2 AWG

Product Description

The 3M Cold Shrink QS-III Splice Kit, MPN 5513A-2-CU, is designed for splicing 15 kV class cables. This kit is suitable for joining tape shield, wire shield, UniShield, or longitudinally corrugated shields of power cables.

• Inline splice for connecting various cable types
• Rated for up to 15 kV voltage class
• Designed for easy installation with cold shrink technology

Product Highlights

This splice kit supports Type MV-90 and MV-105 cables, accommodating conductor sizes from 2 AWG to 1000 kcmil. It includes a factory-tested silicon rubber body for durability and EPDM rubber jacket for protection.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 5513A-2-CU

Technical Specifications

• Voltage: 15 kV
• Conductor Size: 2 AWG
• Number of Conductors: 1
• Application: Direct burial installations
• Material: EPDM/Silicone rubber
• Insulation Diameter: 0.64 inches to 1.01 inches
• Splice Length: 28 inches
• Standards/Approvals: IEEE 404
• Temperature Rating: 105 to 140 degrees Celsius
