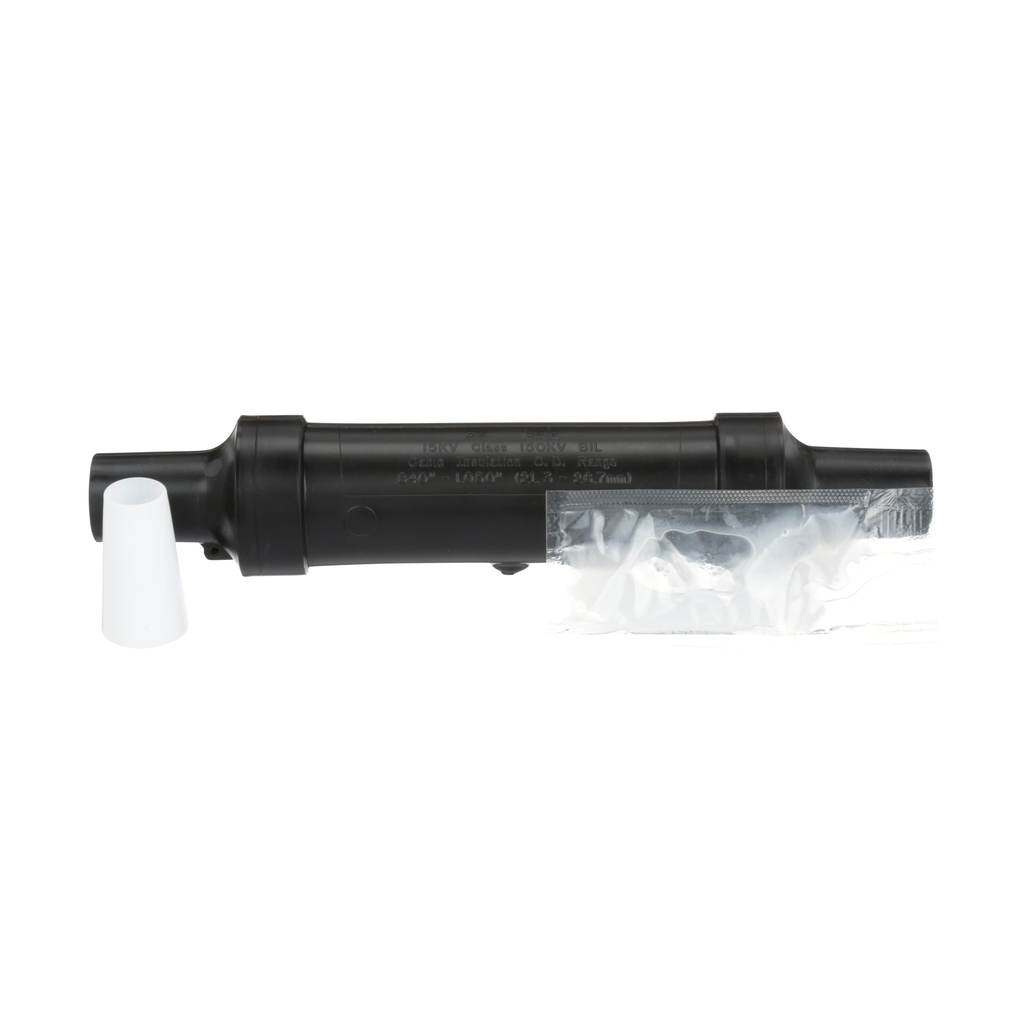

3M 5411-CI-1/0 Molded Rubber Inline 15 kV Splicing Kit

Product Description

3M 5411-CI-1/0 is a molded rubber inline splicing kit designed to work with 15 kV concentric neutral (CN) or jacketed concentric neutral (JCN) cables. This product features a cold shrink jacket made from peroxide-cured EPDM rubber for durability and moisture resistance.

• Factory tested for reliable performance.
• Electrical connection for the outer conducting jacket to the cable semi-conductive jacket.
• Rated for use on 1/0 AWG cables with an insulation outer diameter range of 0.637 to 0.90 inches.

Product Highlights

Ideal for applications requiring reliable splicing of high voltage cables in harsh environments.

Product Information

Standard Information

• Brand: 3M
• Type: Inline

Technical Specifications

• Voltage Rating: 15 kV
• Cable Type: Concentric Neutral, Jacketed Concentric Neutral
• Model: 5411

• UPC: 05400711855
• Number of Conductors: 1
• Splice Length: 9 inches
• Temperature Rating: 194 °F (90 °C)
• Color: Black
