3M 5406-CI-350 Molded Rubber Splice 15 kV 350 Kcmil

Product Description

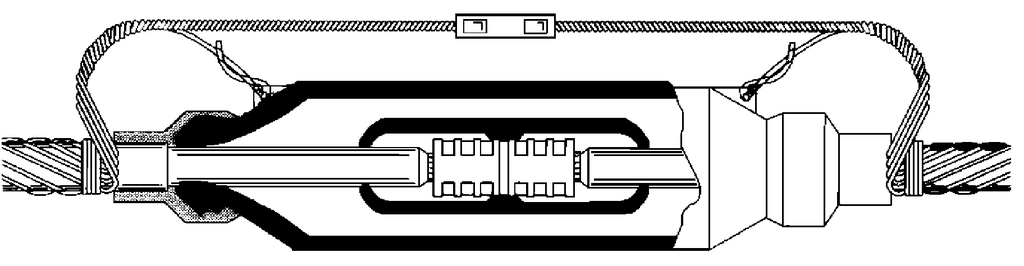

3M 5406-CI-350 is a molded rubber splice kit suitable for use on jacketed concentric neutral (JCN) or concentric neutral (CN) cables. Each kit accommodates a continuous current rating equal to the cable it is paired with. The splice meets IEEE 404 standards for cable joints, ensuring reliable connections in high voltage applications.

• Rated for 15 kV cables
• Designed for JCN and CN cable types
• Inline splice kit for quick and efficient installations

Product Highlights

The molded rubber construction provides durability and reliable performance. Ensure proper cable insulation outer diameter for optimal fit and performance.

Product Information

Standard Information

• Brand: 3M
• MPN: 5406-CI-350

Technical Specifications

• Voltage Rating: 15 kV
• Cable Type: Concentric Neutral, Jacketed Concentric Neutral
• Conductor Size: 350 KCMIL (Aluminum/Copper)
• Cable Insulation Outer Diameter: 1.06 to 1.21 inches
• Splice Type: Inline
• Number of Splices: 1
• Contents: Splice Body, End Cap, Semi-Conductive Jacket, Concentric Wires
• Applicable Standard: IEEE 404
