Product Description

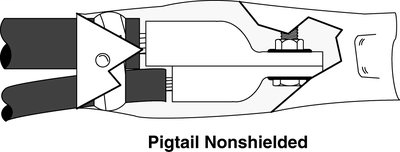

The 3M Motor Lead Pigtail Splice Kit, MPN 5319, is designed for creating pigtail splices in motor lead applications. This kit provides the necessary materials to make three splices and is intended for use with copper compression lugs, which are sold separately. The product is suitable for feeder cables from one hundred to two hundred fifty kcmil (sixty to one hundred twenty square millimeters) and motor leads ranging from two to two hundred fifty kcmil (thirty-five to one hundred twenty square millimeters).
- Includes materials for three splices.
- Compatible with copper compression lugs.
- Designed for use in both wet and dry conditions.
Product Highlights
This splicing kit is compliant with CSA standards and RoHS regulations, ensuring safety and reliability in electrical applications.
Product Information
Standard Information
Technical Specifications
-
Application: For splicing motor lead cables to incoming feeder cables
-
Conductor Size: 4/0 AWG to 500 kcmil
-
Voltage Rating: 5/8 kV
-
Operating Temperature: 90 degrees C
-
Contains: (3) Pigtail Lug Covers, (3) Locking Pins, (3) Tubes of Silicone Grease, (3) Bags of Solvent Cleaning Cloths, (3) Mastic Sealing Strips, (3) Tape Strips
-
Manufacturer: 3M Electrical Products
-
Made in USA: Yes
