3M 5318 Motor Lead Splicing Kit 5KV & 8KV (3 Splices/Kit)

Product Description

The 3M Motor Lead Splicing Kit, MPN 5318, is designed for making three connections in a single kit. This splicing kit facilitates easy insulation and sealing of motor lead connections used in electrical applications. It is compatible with feeders of one-ought American Wire Gauge to two hundred fifty thousand circular mils and motor leads ranging from two American Wire Gauge to two hundred fifty thousand circular mils.

• Designed for use with copper compression, one or two-hole lugs
• Constructed from durable EPDM rubber
• Rated for voltages up to eight kilovolts

Product Highlights

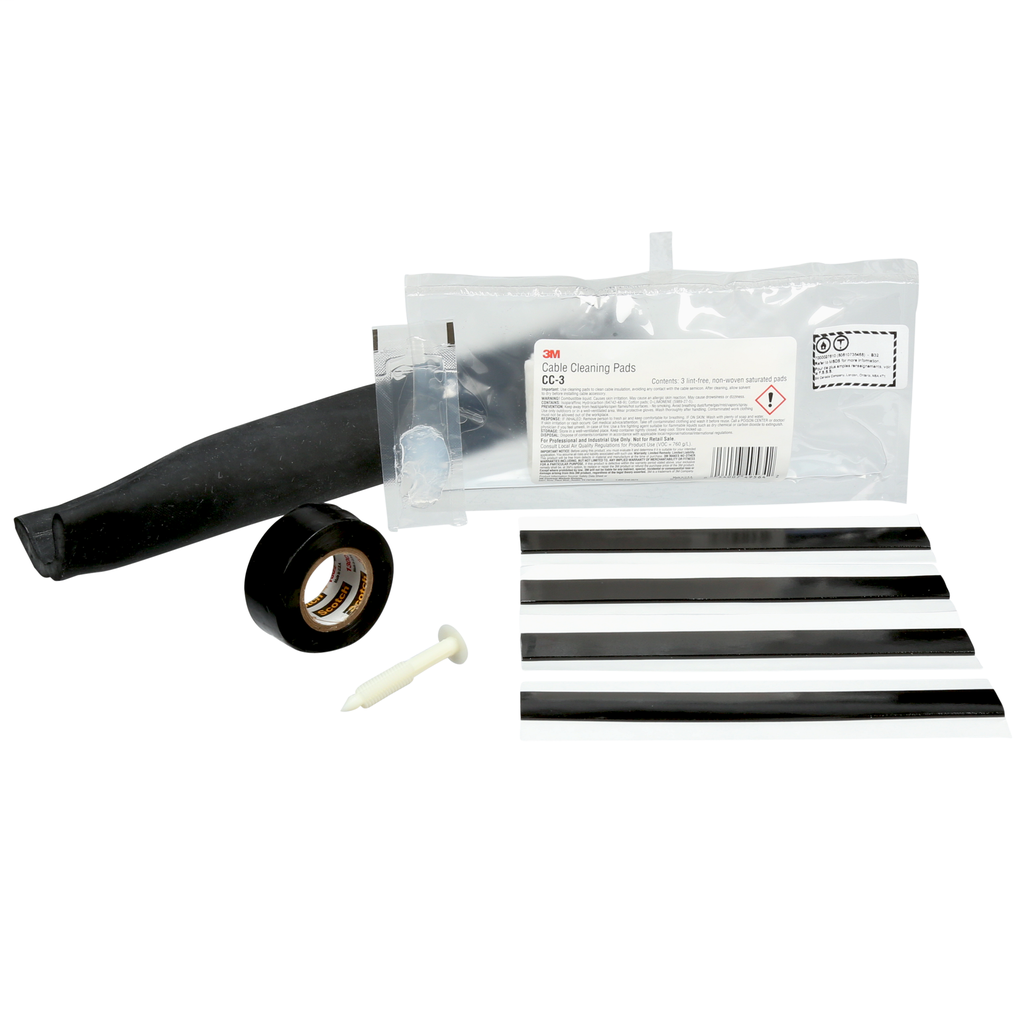

The splicing kit includes essential components such as pigtail lug covers, locking pins, mastic sealing strips, silicone grease tubes, and splicing tape. It is certified by CSA and RoHS compliant.

Product Information

Standard Information

• Brand: 3M
• MPN: 5318

Technical Specifications

• Catalog Number: 5318
• Voltage Rating: 5/8 kV
• Conductor Size: 2 AWG to 250 kcmil
• Operating Temperature: 90 degrees C
• Material: EPDM Rubber
• Dimensions: 11 inches long
• Application: For splicing polyethylene/cross-linked cable, ethylene propylene rubber cable, and copper conductors
