3M 5316 Motor Lead Pigtail Splice Kit, 5/8 kV, 8 to 4 AWG Feeder, 10 to 4 AWG Motor Lead

Product Description

3M 5316 Motor Lead Pigtail Splice Kit allows for splicing of motor lead cables to incoming feeder cables. This kit can accommodate three splices. It includes necessary components for effective moisture sealing and connection. The splice kit is compatible with feeder cables sized from eight to four AWG and motor leads sized from ten to four AWG.

• Includes three pigtail lug covers, locking pins, and sealing materials.
• Operates at voltage ratings of five to eight kV.
• Made from durable EPDM rubber for long lasting use.

Product Highlights

This splice kit is designed for both wet and dry applications, providing reliable connections. It is sold with necessary installation components and tools for straightforward setup.

Product Information

Standard Information

• Brand: 3M
• MPN: 5316

Technical Specifications

• Voltage Rating: 5/8 kV
• Conductor Size: 8 to 4 AWG feeder, 10 to 4 AWG motor lead
• Splice Length: 8 inches
• Material: EPDM rubber
• Connection Type: Pigtail
• Temperature Rating: 90 degrees Celsius

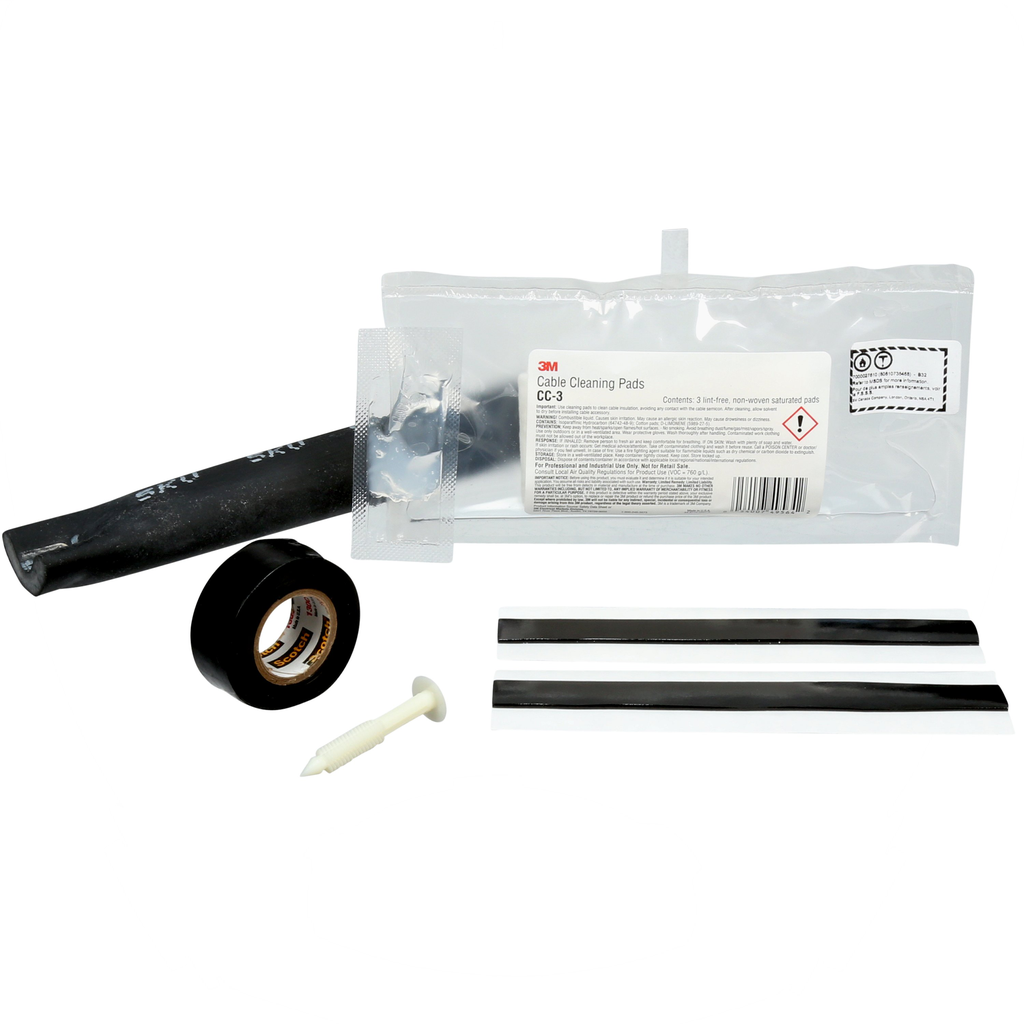

• Includes: 3 pigtail lug covers, 3 locking pins, 3 tubes of silicone grease, 3 bags of solvent cleaning cloths, 3 mastic sealing strips, 3 rubber splicing tape strips, instruction sheets
