3M 5304 Motor Lead Pigtail Splice 1 Kv 3 Splices/Kit

Product Description

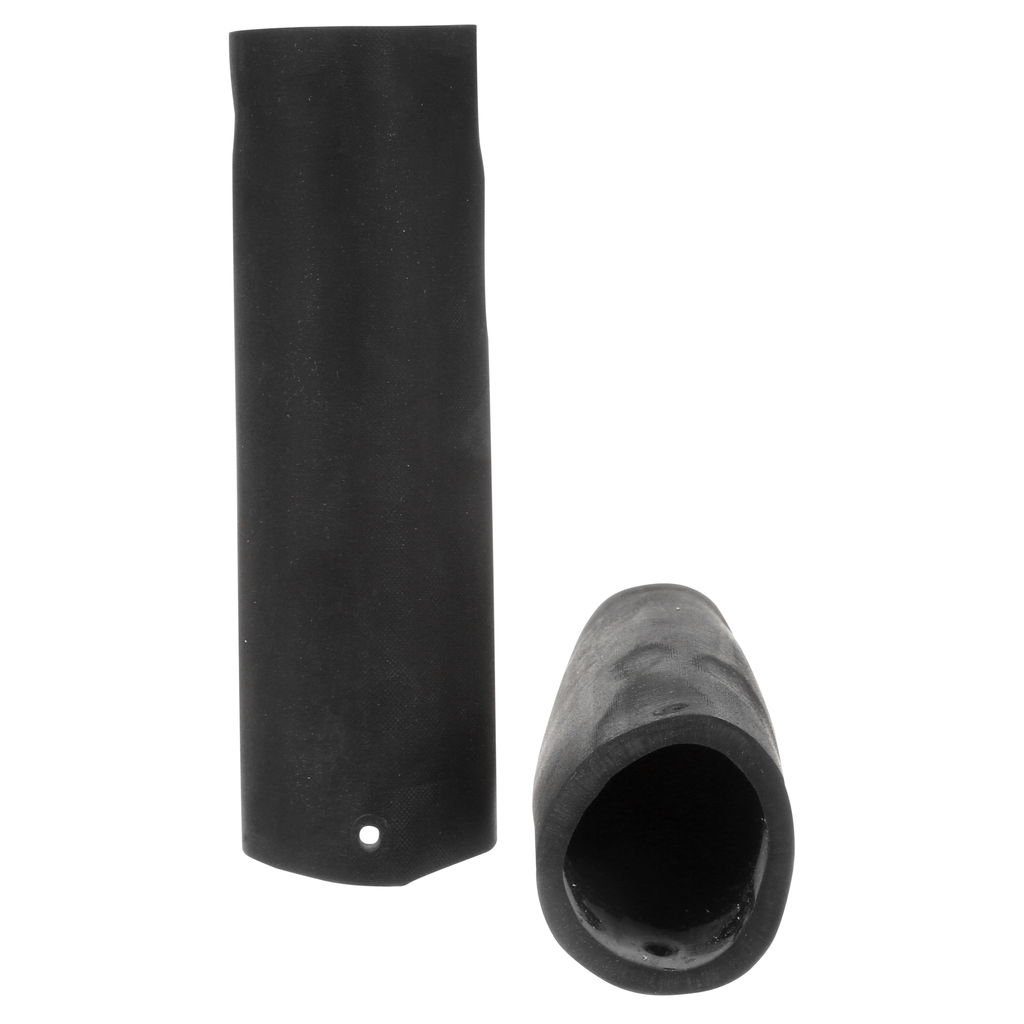

3M 5304 is a motor lead pigtail splicing kit designed for splicing motor lead cables to incoming feeder cables up to 1000 volts. This kit includes materials to make three splices. The main component is a slip-on lug cover made from EPDM rubber. Mastic strips provide a moisture seal. This splicing kit requires copper compression one-hole lugs, which are sold separately. Each kit contains necessary materials such as locking pins and silicone grease for insulation and sealing.

• Includes three pigtail lug covers and three mastic sealing strips
• Designed for use with copper compression lugs
• Suitable for splicing applications up to 1000 volts

Product Highlights

This kit is suitable for quick installations and professional use in electrical work. Ideal for connecting motor lead cables and ensuring a secure, insulated splice.

Product Information

Standard Information

• Brand: 3M
• MPN: 5304

Technical Specifications

• Voltage Rating: 1000 Volt
• Feeder Cable Size: 250 to 500 KCMIL
• Motor Lead Cable Size: 4/0 AWG to 500 KCMIL
• Type: Pigtail (1 Hole Lug)
• Insulation Size: 0.67 to 1.05 inches OD
• Contents: 3 Pigtail Lug Covers, 3 Mastic Sealing Strips, 3 Locking Pins, 3 Tubes of Silicone Grease, 1 Instruction Sheet
• Temperature Rating: 90 to 130 degrees Celsius
• Certification: UL, CSA
