3M 5302 Motor Lead Pigtail Splice Kit 1 Kv (3 Splices/Kit) Replacement MPN

Product Description

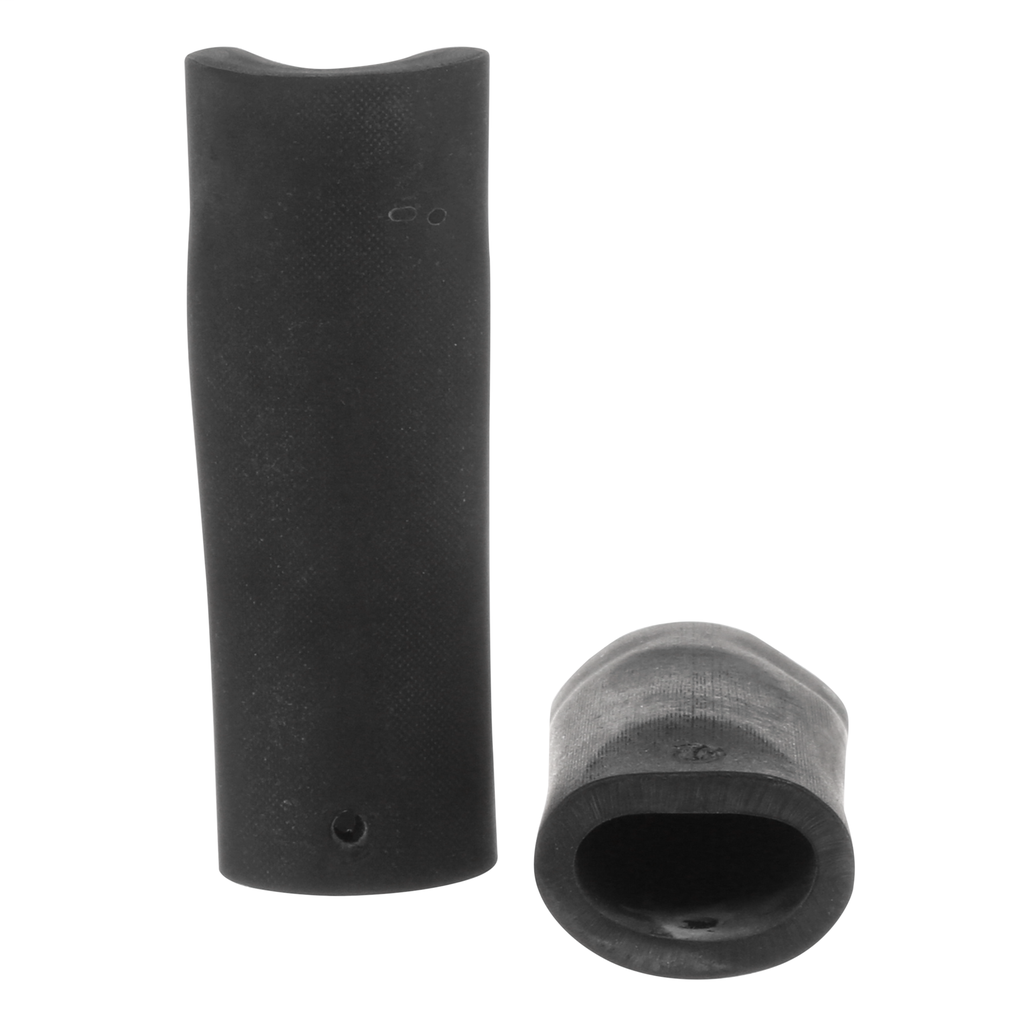

3M 5302 Motor Lead Pigtail Splice Kit is suitable for splicing motor lead cables to feeder cables. It accommodates pigtail connections at voltage ratings of 1000 volts or less. The kit's main component is a slip-on lug cover made from EPDM rubber. Mastic strips provide moisture sealing. Each kit supports three splices and includes necessary materials except for lugs, which must be purchased separately. This kit is designed for use with copper compression lugs for reliable connections.

• Includes three pigtail lug covers, mastic sealing strips, and tubes of silicone grease.
• Supports connections for feeder cables sized between two to one/0 AWG and motor leads sized four to one/0 AWG.
• Made for easy installation without the need for special tools or heat sources.

Product Highlights

The 3M 5302 kit effectively seals and insulates motor lead connections. Its design simplifies the installation process while providing durable protection against moisture and abrasion.

Product Information

Standard Information

• Manufacturer: 3M Co.
• Manufacturer Part Number: 5302

Technical Specifications

• Voltage Rating: 1000 Volt
• Number of Splices: 3
• Feeder Cable Size: 2 to 1/0 AWG
• Motor Lead Cable Size: 4 to 1/0 AWG
• Material: EPDM Rubber
• Temperature Rating: 90 to 130 Degrees Celsius
• Connector Type: Pigtail
• Compliance: UL, CSA Certified, RoHS Compliant
