3M 5301 Motor Lead Pigtail Splice Kit 1 Kv 10-4 AWG

Product Description

The 3M Motor Lead Pigtail Splice Kit 5301 is designed for efficient splicing of motor lead cables to incoming feeder cables. This kit includes essential materials such as lug covers, mastic sealing strips, and silicone grease, making it suitable for 1000 volts and less. It works well with copper compression, 1-hole lugs.

• Moisture-proof with EPDM rubber components
• Kit includes materials for three splices
• Suitable for various industrial applications

Product Highlights

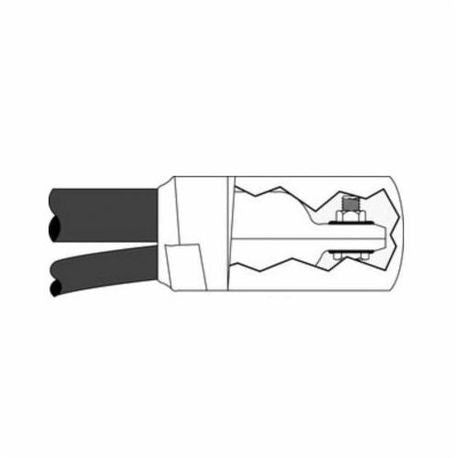

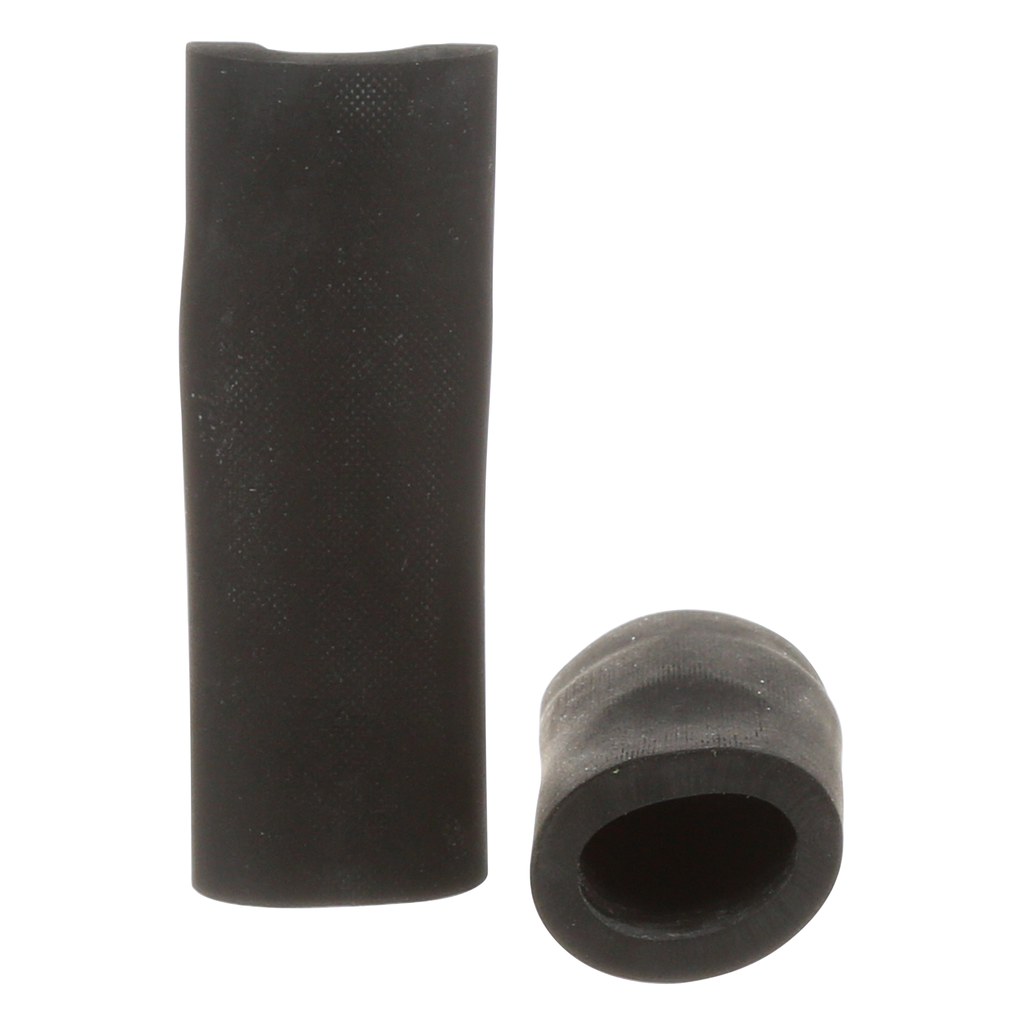

The 3M 5301 Splice Kit features a slip-on lug cover made of durable EPDM rubber, ensuring a secure fit and excellent insulation. Ideal for motor lead connections, it includes three pigtail lug covers, three mastic sealing strips, and three tubes of silicone grease, along with an instruction sheet for easy installation.

Product Information

Standard Information

• Brand: 3M
• Application: For splicing motor lead cables to incoming feeder cables

Technical Specifications

• MPN: 5301
• Voltage Rating: 1 kV
• Material: EPDM Rubber
• Cable Size: 10-4 AWG
• Maximum Operating Temperature: 194 degrees F (90 degrees C)
• Number of Splices: 3
