Description

Product Description

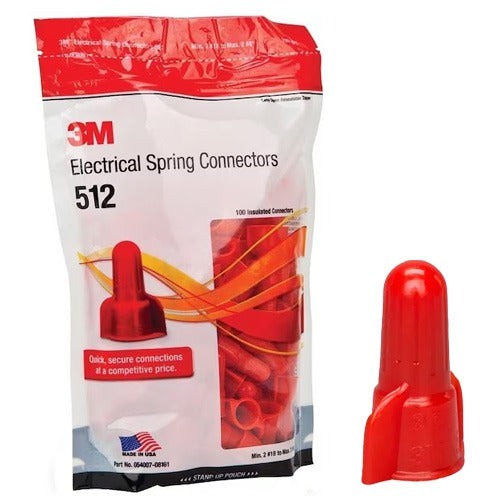

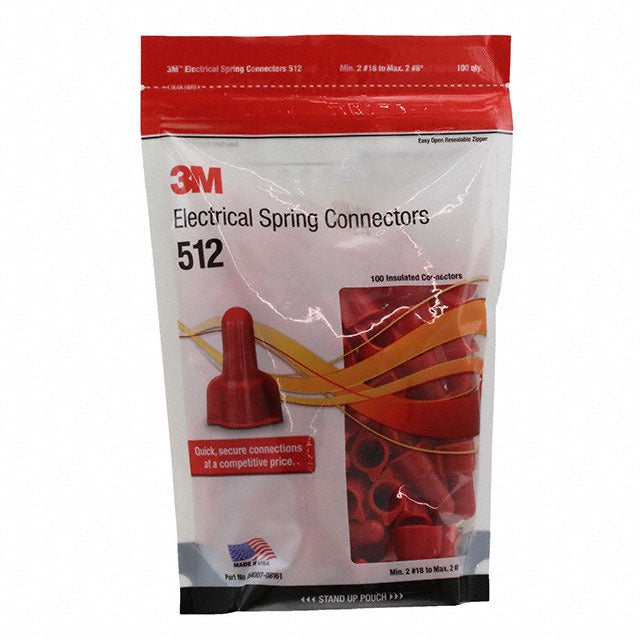

3M 512-POUCH is a wing-style twist-on wire connector used to join two or more conductors and insulate the connection. It accepts 22 to 8 AWG solid or stranded conductors, has a live inner square-wire spring and a spring-steel core, and features flame-retardant nylon insulation. The connector is rated 600 VAC (1000 V noted for signs/fixtures/luminaires in some listings) and 221°F (105°C) temperature rating, supplied 100 per pouch.

  • Accepts 22 to 8 AWG solid or stranded conductors; suitable for copper and aluminum combinations
  • Live inner square-wire spring with spring-steel core and nylon flame-retardant insulation
  • Rated 600 VAC (1000 V for some lighting applications as noted in listings), 221°F (105°C); sold 100 per pouch

Product Highlights

Wing-style twist-on connector; 22–8 AWG; 600 VAC; flame-retardant nylon; 100 per pouch

Product Information

Standard Information

  • Brand: 3M
  • Manufacturer Part Number: 512-POUCH
Technical Specifications
Brand
3M
MPN
512-POUCH
Product Name
Twist-On Wire Connector
Series
512
Type
Twist-On / Wire Connector
Style
Wing
Wire Size
22 to 8 AWG
Wire Compatibility
Copper and aluminum conductors; solid or stranded
Voltage Rating
600 VAC (note: some listings reference 1000 V for specific lighting/sign applications)
Temperature Rating
221 °F (105 °C)
Insulation Material
Nylon, flame retardant
Spring Type
Live inner square-wire spring
Spring Material
Spring steel
Construction
Spring steel core with nylon insulated shell
Height
1.22 in
Width
0.89 in
Flammability Rating
V-2 per UL94
Certifications
UL listed; CSA certified; RoHS compliant (IEC listing noted in some sources — medium confidence)
Package Quantity
100 per pouch
Intended Use
Connect two or more conductor ends in pigtail applications and insulate connections
