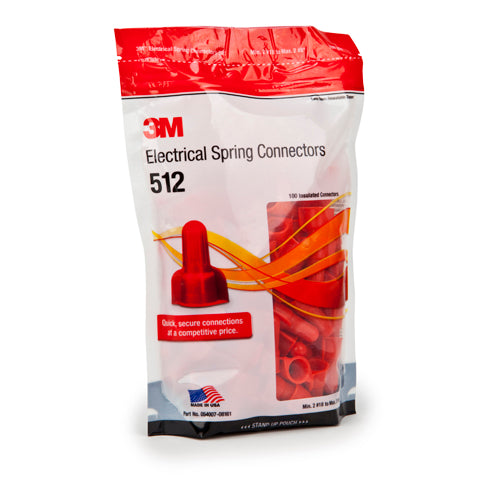

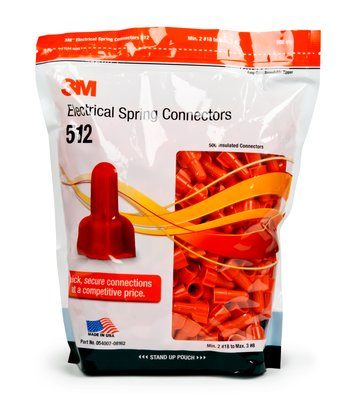

3M 512-BULK Electrical Spring Connector 600 V (22-8 AWG / 100 per pouch) 512-POUCH

Product Description

3M 512-BULK is an electrical spring twist-on connector used to join two or more copper conductors in pigtail applications. It accommodates 22�8 AWG copper conductors, uses a copper contact with flame-retardant nylon insulation, and is rated to 600 V and +221�F. The internal spring design allows spin-on installation and uniform holding power for appliances, fixtures, automotive, marine, commercial, industrial, and residential wiring.

• Accommodates 22�8 AWG copper conductors; twist-on spring design for quick spin-on connection and uniform holding power.
• Copper contact with flame-retardant nylon insulation; operating temperature up to +221�F and voltage rating 600 V.
• Packaged 100 per pouch; certified to CSA and UL standards; suitable for appliances, fixtures, automotive, marine, and building wiring.

Product Highlights

Twist-on spring connector for 22�8 AWG copper, 600 V, +221�F; flame-retardant nylon insulation; 100 per pouch; CSA and UL certified.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 512-BULK

Technical Specifications

• Brand: 3M
• Manufacturer Part Number: 512-BULK
• Alternate Part Number: 512-POUCH
• Model: 80611467442
• Conductor Range: 22-8 AWG
• Connector Type: Twist-on, spring
• Contact Material: Copper
• Insulation Material: Nylon (flame-retardant)
• Voltage Rating: 600 V
• Operating Temperature: +221 F
• Certifications: CSA, UL
• Pack Quantity: 100 per pouch
• Number of Items: 100
• Application: Pigtail connections; appliances and fixtures; automotive and marine; commercial, industrial, and residential wiring
• UNSPSC/Classification: 39121445 - Twist on wire connector
• UPC/GTIN: 054007081616 / 00054007081616
• Weight per unit: 0.008 lb
