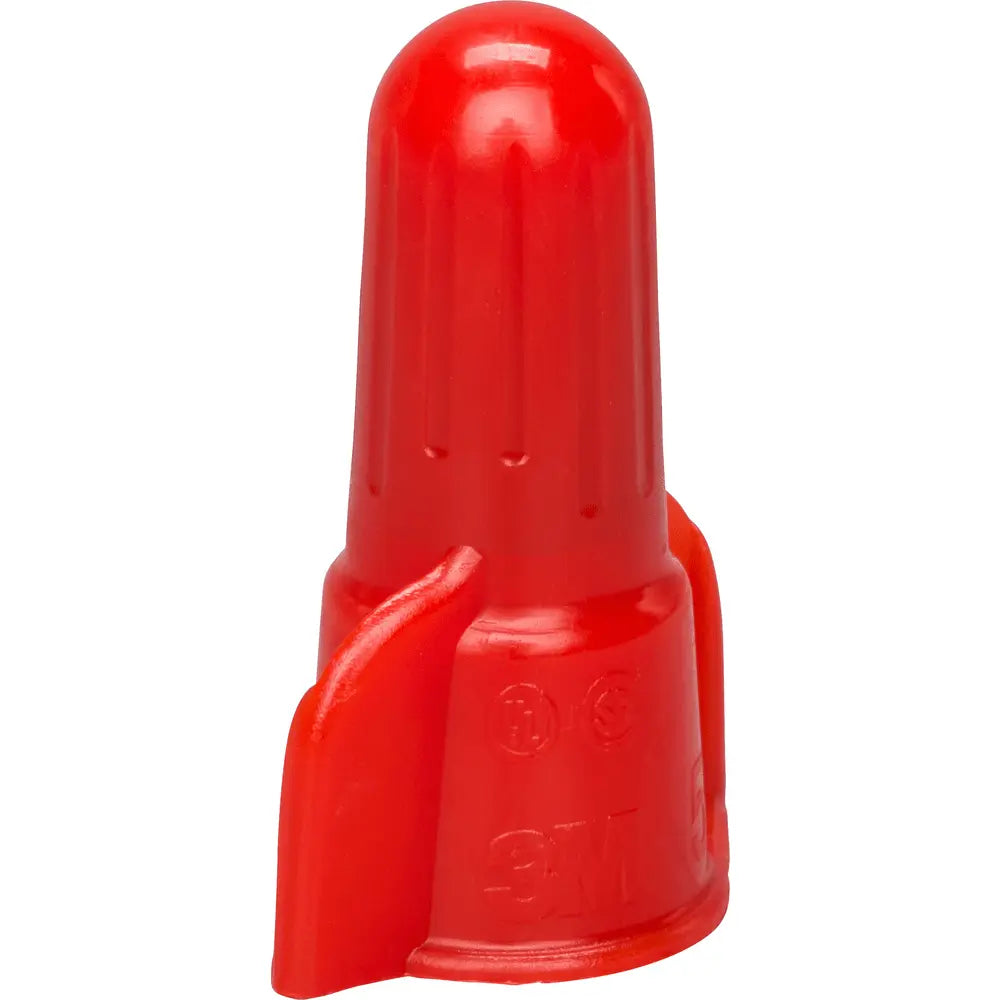

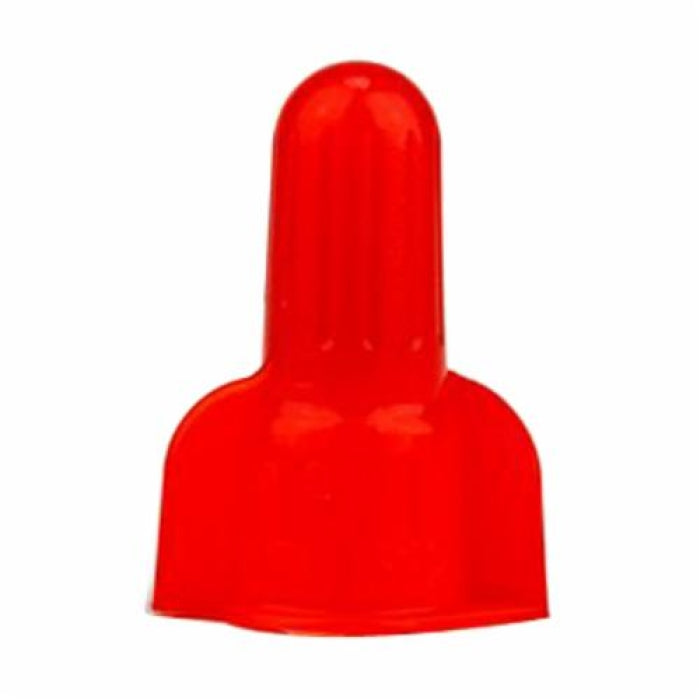

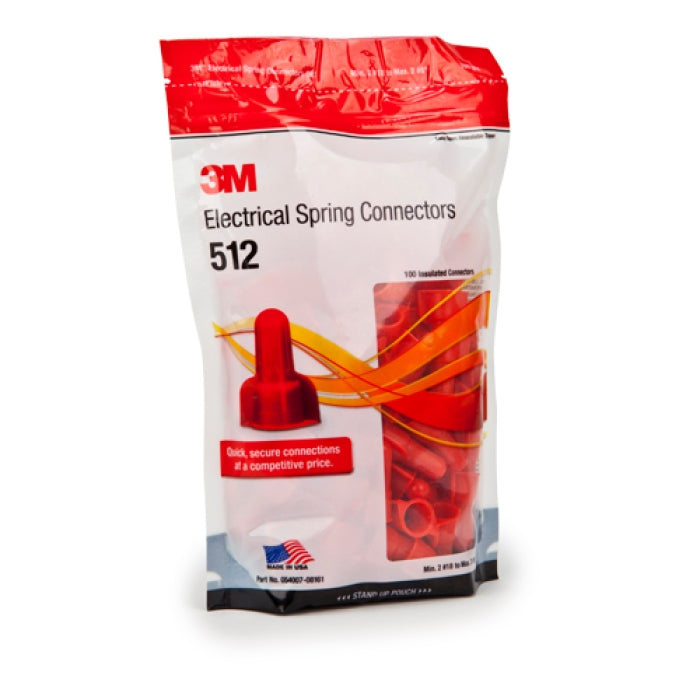

3M 512-Bag Wire Connector (500/Bag)

Product Description

The 3M 512-BAG wire connectors are designed for speed and efficiency, spinning on quickly and tightening down easily. Engineered for easy back-off, the live inner spring action delivers uniform holding power. These connectors accommodate a wide range of solid or stranded wire. They are UL Listed and CSA Certified.

• Nylon insulated
• Corrosion resistant coating
• Designed for speed and efficiency, spin-on quickly and tighten-down easily

Product Highlights

The 3M 512-BAG wire connectors offer quick, secure connections for a variety of wiring applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 512-BAG
• Country of Origin: US

Technical Specifications

• Series: 512
• Shell Style: Winged
• Wire Type: Aluminum/Copper
• Wire Gauge: 22 to 8 AWG
• Voltage: 600 VAC
• Temperature Rating: 221 deg F
• Spring Material: Spring Steel
• Type: Twist On
• Material: Plastic
• Standard: UL, RoHS and CSA
• Insulated: Yes
• Connection: Twist-On
• ARRA Compliant: Y
• RoHS Indicator: Y
• Conductor Range: 22 to 8 AWG
• Country of Origin: US
• Environmental Conditions: Dry Location
• Application: For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection or to Insulate a Single Wire End
• Standards/Approvals: C22.2 #188-MI983 File No. LR15503 CSA|IEC|2011/65/EU RoHS Compliant|UL 486C UL File No. E23438
• Insulation Type: Nylon
• Termination: Spring
