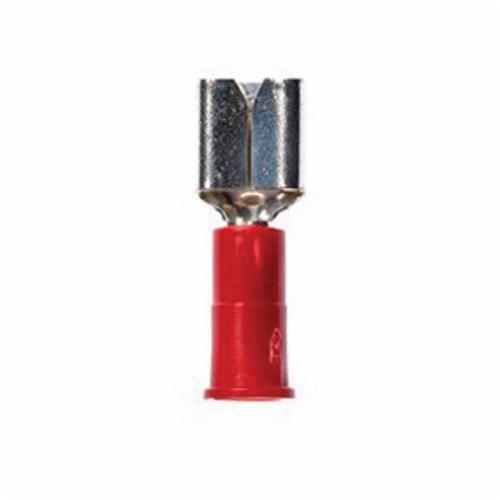

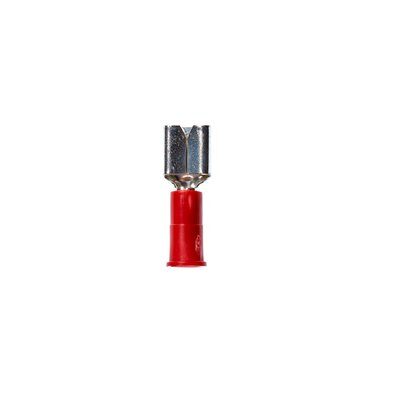

3M 3MIND-7000133356 Insulated Disconnect Terminal 600 VAC 22 to 18 AWG

Product Description

The 3M 3MIND-7000133356 is an insulated disconnect terminal designed for efficient connection and disconnection of wiring. It accommodates wire sizes from twenty-two to eighteen AWG and features a one-quarter inch tab. The butted barrel design has a temperature rating from negative forty to two hundred twenty-one degrees Fahrenheit. The terminal is made with ETP copper for good conductivity, and its vinyl insulation adds durability and corrosion resistance.

• Temperature range: -40 to 221 degrees F
• Voltage rating: 600 VAC
• Funnel-designed barrel for easy wire insertion

Product Highlights

Ideal for use in various electrical connections, the terminal provides reliability and ease of use in wiring applications.

Product Information

Standard Information

• Brand: 3M
• MPN: 3MIND-7000133356

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Tab Size: 1/4 in
• Dimensions: 1/4 in W x 0.032 in THK Pad
• Barrel Type: 0.08 in ID Butted
• Material: ETP Copper
• Color: Red
• Insulated: Yes
• Specifications: 0.87 in OAL
• Voltage Rating: 600 VAC
• Temperature Rating: -40 to 221 deg F
