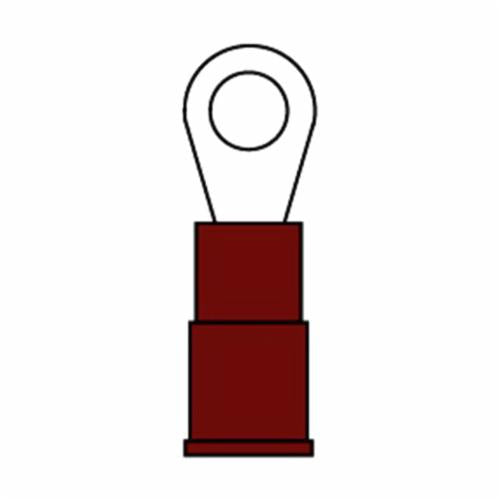

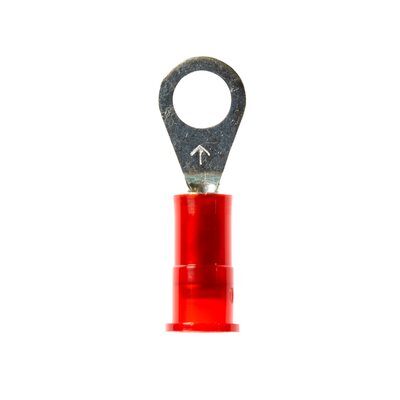

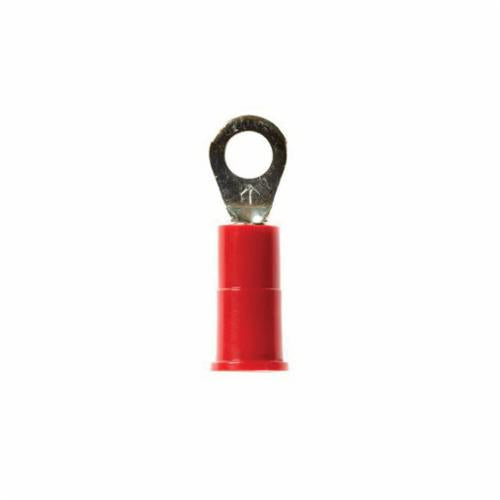

3M 3MIND-7000133272 Standard Terminal, 22 to 18 AWG Conductor, 0.92 in Length, 0.07 in ID Butted Barrel

Product Description

The 3M Standard Terminal, MPN 3MIND-7000133272, is designed for use with 22 to 18 AWG conductors. This terminal features a nylon-insulated, butted-seam barrel which provides both safety and reliable performance. It is suitable for a wide range of electrical applications and can withstand temperatures from -40 to 221 degrees Fahrenheit.

• Compatible with wire sizes from 22 to 18 AWG
• Constructed from electrolytic copper for effective conductivity
• Rated for up to 600 to 1000 VAC

Product Highlights

Ideal for building wire applications, this terminal connects securely to a #10 stud.

Product Information

Standard Information

• Brand: 3M
• MPN: 3MIND-7000133272

Technical Specifications

• Dimensions: 0.31 in W x 0.03 in THK
• Stud Size: #10
• Temperature Rating: -40 to 221 deg F
• Voltage Rating: 600 to 1000 VAC
• Conductor Size: 22 to 18 AWG
• Length: 0.92 in
• Barrel Type: 0.07 in ID Butted
• Material: ETP Copper
• Color: Red
