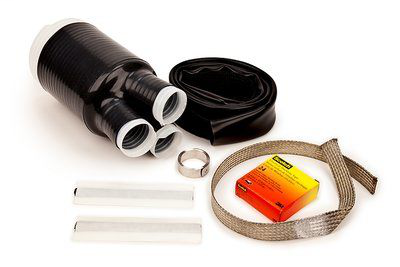

3M 3C-BOK-4 Cold Shrink 3 Conductor Breakout Kit 5 to 35 kV

Product Description

The 3M 3C-BOK-4 Cold Shrink 3 Conductor Breakout Kit is designed to allow the use of single conductor accessories on three conductor cables. This kit is suitable for medium voltage applications where space is limited. It simplifies installation without the need for special tools, making it efficient for professionals working in tight locations.

• Fits medium voltage applications
• Compatible with various conductor types
• Easy installation without tools

Product Highlights

This Cold Shrink 3 Conductor Breakout Kit is essential for those needing flexibility in installation and provides all necessary components for a complete setup.

Product Information

Standard Information

• Brand: 3M
• MPN: 3C-BOK-4

Technical Specifications

• Rated Voltage: 5 to 35 kV
• Conductor Size Compatibility: 1 AWG to 500 kcmil
• Insulation Diameter: 0.92 to 1.18 inches
• Maximum Cable Diameter: 3.9 inches
• Includes: Cold shrink silicone rubber breakout boot, silicone rubber phase rejacketing sleeves, constant force spring, and various Scotch tapes
• Application: Suitable for Type G cable, copper tape shield cable, armored cable, and tray cable without armor
• Standards/Approvals: IEEE 48, Cenelec 0278, IEC 502/GB
