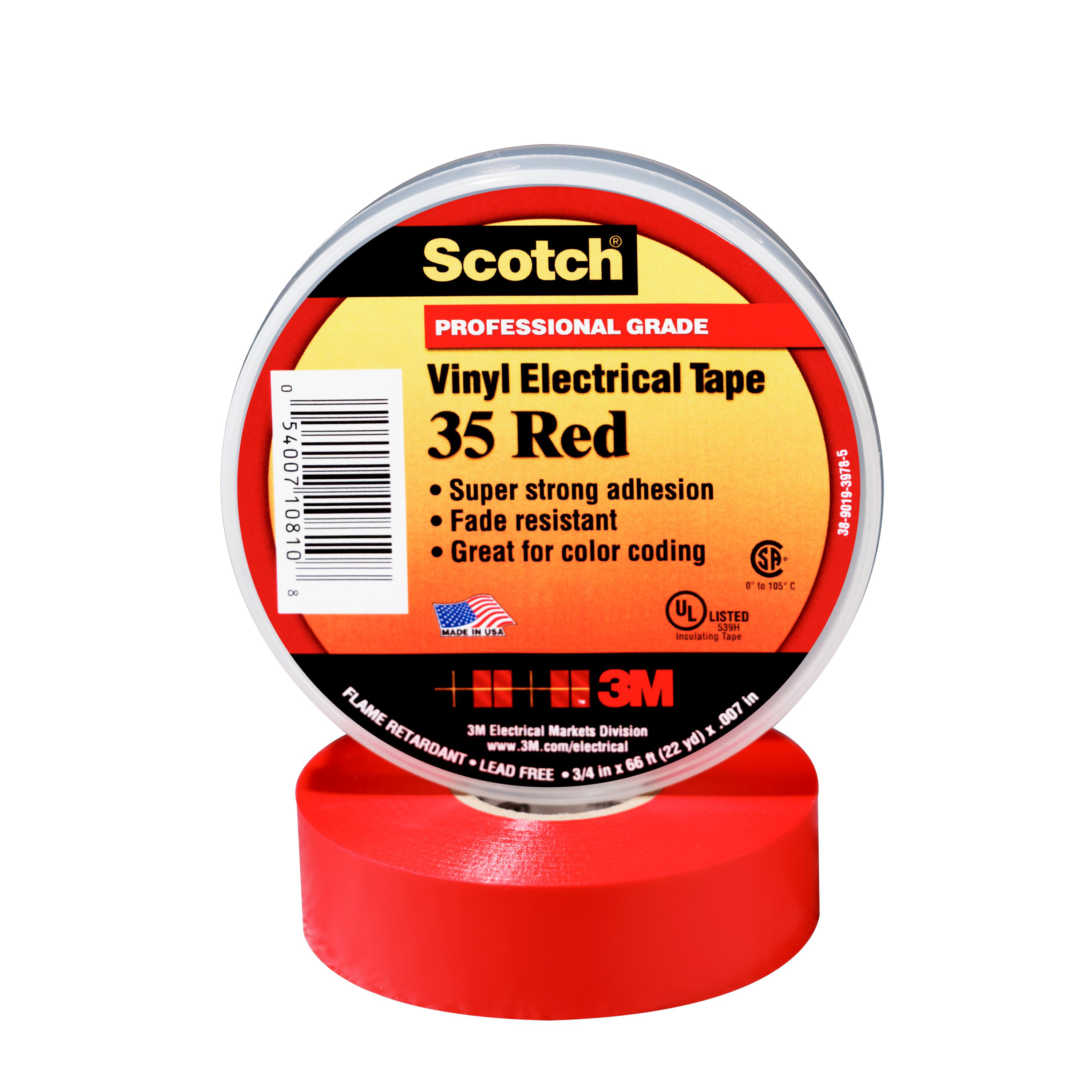

3M 35RD3/4 Vinyl Electrical Tape Red 3/4 Inch X 66 Ft

Product Description

The 3M 35RD3/4 is a 7 mil thick vinyl color coding electrical tape designed for phase identification, motor lead marking, piping system color coding, and safety area designation. Rated at 600 volts and flame retardant, it handles a temperature range of 32 to 221 degrees F. The red color provides clear, immediate visual identification in panel work, conduit runs, and mechanical systems. Licensed electricians, HVAC techs, and industrial maintenance crews use this tape wherever a durable, code-compatible color mark is required.

This tape is suited for residential, commercial, and light industrial applications. Common uses include three-phase circuit identification at distribution panels, color coding of motor leads during installation or service, marking piping systems by fluid type or pressure zone, and flagging safety boundaries in equipment rooms. The 3/4 inch width fits standard tape dispensers and seats cleanly under wire nuts and terminal lugs. Each roll delivers 66 feet of usable length, and the carton contains 10 rolls for job-site or truck-stock use.

Key Features

• 7 mil thick vinyl construction resists abrasion, moisture, and corrosion
• 600 volt rating suitable for low-voltage and branch-circuit identification work
• Flame retardant formulation meets electrical tape safety requirements
• Temperature range of 32 to 221 degrees F for use in varied environments
• Red color provides high-contrast phase and safety marking
• 3/4 inch x 66 ft roll size compatible with standard tape dispensers

Compatibility

Designed as a color coding and phase identification tape for use on electrical wiring, motor leads, conduit, and piping systems in residential, commercial, and industrial settings where 600 volt rated vinyl tape is appropriate.

Installation Notes

Applied by licensed electricians and qualified maintenance technicians. De-energize all circuits and follow NFPA 70 lockout/tagout procedures before accessing panels or motor junction boxes. Clean and dry the surface before applying tape to ensure full adhesion. Do not use this tape as primary insulation in place of listed wire insulation materials.

Technical Specifications

• Thickness: 7 mil
• Voltage Rating: 600 volts
• Temperature Range: 32 to 221 degrees F
• Width: 3/4 inches
• Length Per Roll: 66 ft
• Color: Red
• Material: Vinyl
• Flame Retardant: Yes
• Rolls Per Carton: 10
• UPC: 00054007108108

Standard Information

• Brand: 3M
• Manufacturer Part Number: 35RD3/4
