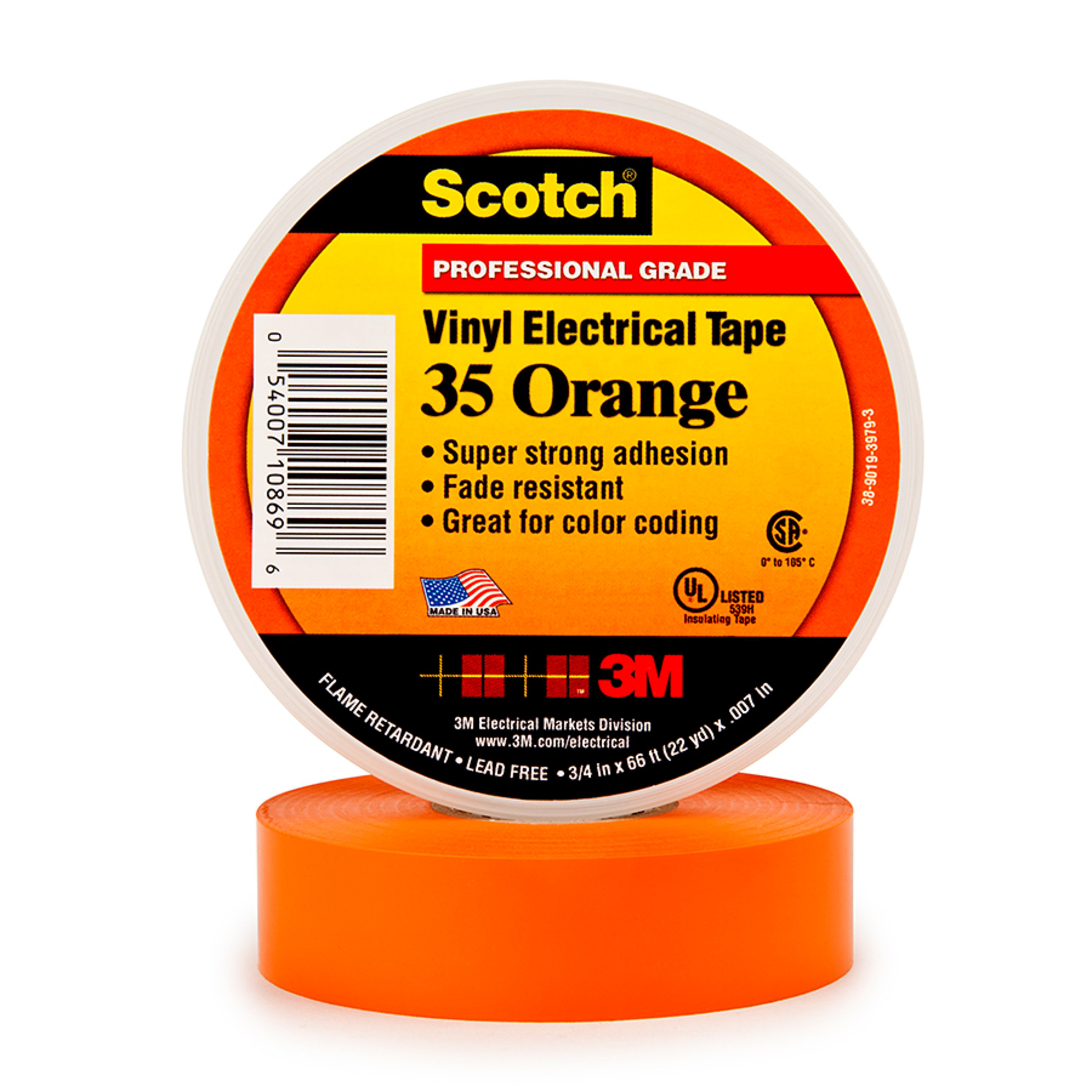

3M 35OR3/4 Vinyl Color Coding Electrical Tape Orange 3/4in X 66ft

Product Description

The 3M 35OR3/4 is a 7 mil thick, flame-retardant vinyl electrical tape designed for color coding and phase identification in electrical systems. Rated at 600 volts and suitable for continuous use between 32 degrees F and 221 degrees F, this orange tape meets the demands of professional electrical work. Licensed electricians and maintenance technicians use it for marking motor leads, coding piping systems, and designating safety areas. The vinyl construction provides durable, conformable coverage on irregular surfaces and resists moisture and abrasion under normal service conditions.

This tape is well suited for residential, commercial, and light industrial electrical applications. Common uses include phase identification on service panels and switchgear, color coding of motor leads during installation or maintenance, and marking piping systems according to trade or facility color standards. Each roll measures 3/4 inch wide by 66 feet long. The carton contains 10 rolls, and the case contains 100 rolls, making it a practical stocking item for service vans and shop inventory.

Key Features

• 7 mil thick vinyl construction for durable, conformable coverage
• Flame retardant formulation meets standard electrical tape safety requirements
• 600-volt rating for low-voltage electrical identification applications
• Temperature range of 32 degrees F to 221 degrees F (0 to 105 degrees C)
• Orange color for phase identification, safety marking, and system color coding
• Packaged 10 rolls per carton, 100 rolls per case for efficient jobsite supply

Compatibility

Designed as a color coding and identification tape for use in electrical, mechanical, and piping systems where phase marking, lead identification, or safety area designation is required per applicable standards.

Installation Notes

This tape is an identification and color coding product, not a primary insulation replacement. De-energize circuits and follow NFPA 70E arc flash safety procedures before working on any electrical equipment. Apply to clean, dry surfaces for best adhesion. Do not rely solely on color coding tape to meet insulation requirements where rated insulation is specified by the NEC or local electrical code.

Technical Specifications

• Thickness: 7 mil
• Voltage Rating: 600 volts
• Temperature Range: 32 to 221 degrees F (0 to 105 degrees C)
• Width: 3/4 inch
• Length per Roll: 66 ft
• Color: Orange
• Flame Retardant: Yes
• Rolls per Carton: 10
• Rolls per Case: 100
• UPC: 00054007108696

Standard Information

• Brand: 3M
• Manufacturer Part Number: 35OR3/4
