3M 3590046 Protecta Edge Self Retracting Lifeline, Galvanized Cable & Steel Swivel Snap Hook, 20 feetL

Product Description

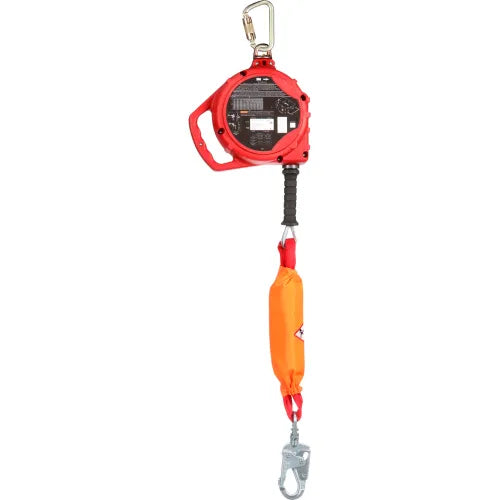

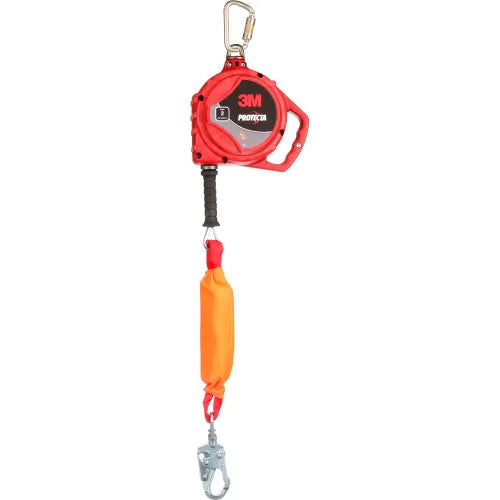

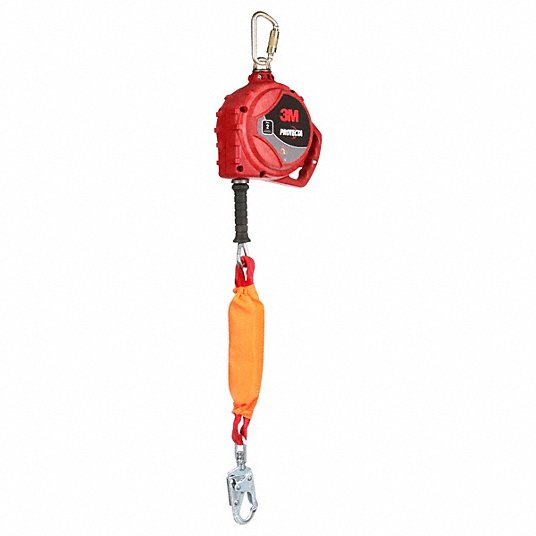

The 3M Protecta Self-Retracting Lifeline (SRL) 3590046 is durable yet lightweight, providing an economical fall protection solution without compromising performance or safety. It extends and retracts with the user and features a speed-sensing brake system that activates upon a fall. Tension is always kept on the lifeline, which helps reduce dragging, snagging, trips, and falls.

• Swiveling anchorage connector loop and carabiner
• Compact, lightweight design
• Features impact-indicating external energy absorber (for models with external shock pack)

Product Highlights

This self-retracting lifeline is designed for leading edge applications and features a stackable housing design and an integrated carrying handle.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 3590046
• Country of Origin: USA

Technical Specifications

• Brand: 3M
• Manufacturers Part Number: 3590046
• Cable Material: Galvanized
• Number of Legs: 1
• ANSI SRL TYPE: SRL
• Housing Material: Nylon Thermoplastic
• Package Quantity: 1
• ANSI SRL Class: Class 2
• Mounting Location: Block to Anchor Point
• Harness Connection: Swivel Snap Hook
• Lifeline Material: Galvanized Steel
• Anchorage Connection: Carabiner
• Lifeline Length: 20 ft
• Weight Capacity: 310 lb
• Certifications: 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, ANSI/ASSP Z359.14-2021
• Harness Connection Material: Steel
• Anchorage Connection Material: Zinc Plated Steel
• Anchoring Location: Overhead or Foot Level
• Minimum User Weight: 130 lb
• SRL Housing Material: Thermoplastic
• Minimum Weight Capacity: 130 lb
• Lifeline Diameter: 1/4 in
• OSHA Standards Met: OSHA 1910.140; OSHA 1926.502
• Replaceable Lifeline: No
