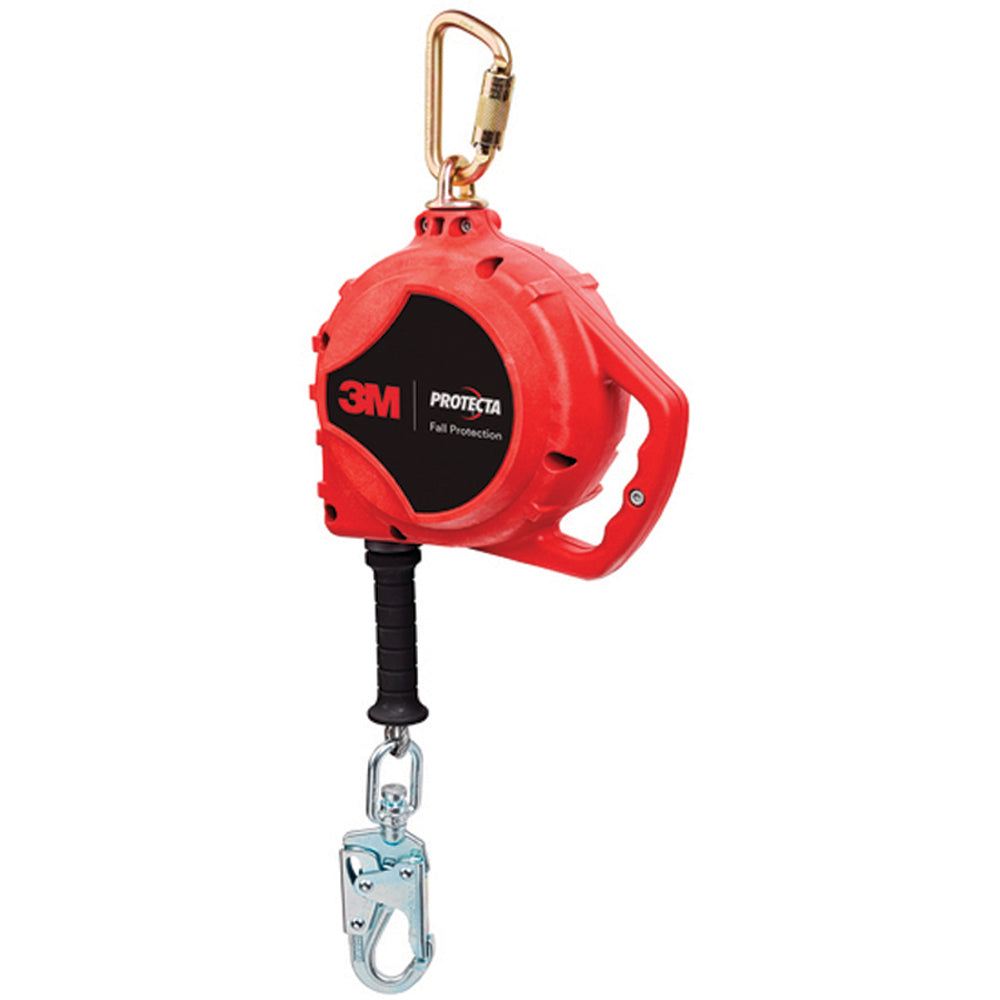

3M 3590036 Protecta Self Retracting Lifeline, Galvanized Cable & Steel Swivel Snap Hook, 33 feetL

Product Description

The 3M Protecta Self-Retracting Lifeline (SRL) is durable yet lightweight and built to last, providing an economical fall protection solution without compromising performance or safety. Available in multiple lifeline lengths and materials, the 3M 3590036 features a design to help ensure longevity. It extends and retracts with the user and has a speed-sensing brake system that activates in the event of a fall.

• Features a swiveling anchorage connector loop and carabiner.
• Compact, lightweight design with aluminum or thermoplastic housing.
• Equipped with a self-locking snap hook on the lifeline and a quick-activating speed-sensing locking system.

Product Highlights

This self-retracting lifeline includes corrosion-resistant components and a reliable fall arrest energy dissipation system. It is ideal for assembly, climbing, inspection, maintenance, and welding applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 3590036
• Country of Origin: United States

Technical Specifications

• Brand: 3M
• Manufacturers Part Number: 3590036
• Description: Self-Retracting Lifeline, Galvanized Cable, Steel Swivel Snap Hook
• Cable Material: Galvanized
• Number of Legs: 1
• ANSI SRL TYPE: SRL
• Housing Material: Nylon Thermoplastic
• Package Quantity: 1
• ANSI SRL Class: Class 1
• Mounting Location: Block to Anchor Point
• Harness Connection: Swivel Snap Hook
• Lifeline Material: Steel
• Anchorage Connection: Carabiner
• Lifeline Length: 33 ft
• Weight Capacity: 420 lbs
• Harness Connection Material: Steel
• Anchorage Connection Material: Zinc Plated Steel
• Lifeline Diameter: 1/4 in
• Anchoring Location: Overhead Only
• Minimum User Weight: 130 lbs.
• Replaceable Lifeline: No
• SRL Housing Material: Thermoplastic
• Anchor Connection Type: Carabiner
• Lifeline Length (Metric): 10.1 m
• Lifeline Length (Imperial): 33 ft
• Weight Capacity (Metric): 190 kg
• Weight Capacity (Imperial): 420 lb
• Anchor Hook Material: Zinc Plated Steel
• Leg Count: Single-Leg
• Lifeline Connection Type: Swivel Snap Hook
• Maximum Number of Users: One
• Mounting Type: Block to Anchor Point
• Specifications Met: ANSI Class Level 1, ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502
• Style: Single-leg
• Overall Length (Imperial): 33 ft
• Overall Length (Metric): 10.1 m
• Standards: 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, ANSI/ASSP Z359.14-2021
• Type: ANSI Class 1 SRL Compliant
• Capacity: 420 lbs.
• Lifeline Dia.: 1/4"
• No. Of Legs: 1
• Rescue Method: Assisted
• Rescue Mode: Lower, Raise
• Install Type: Removable
