Product Description

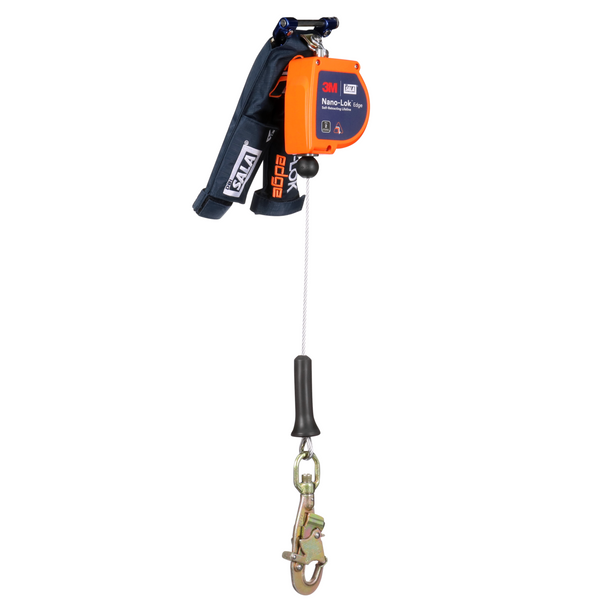

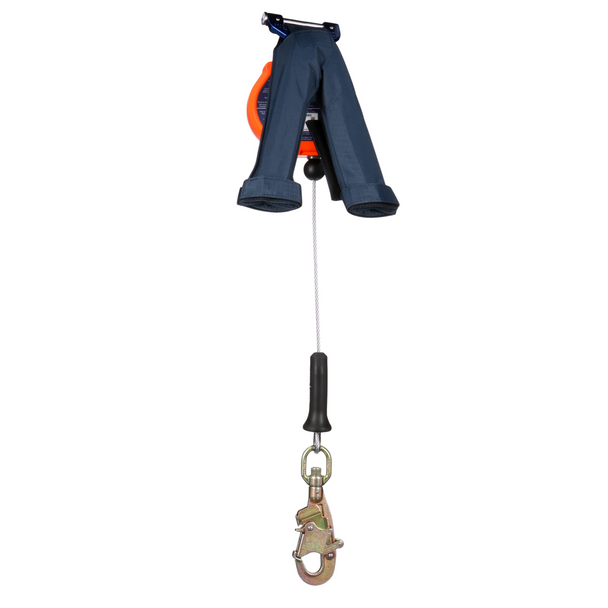

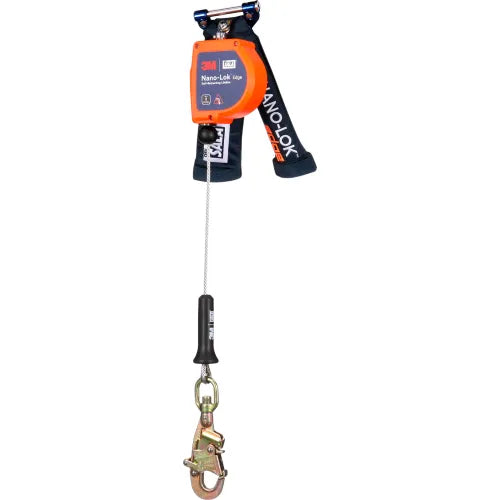

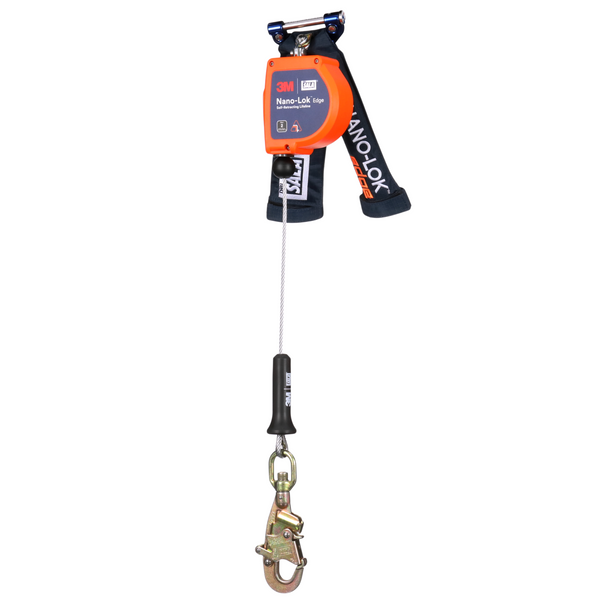

The 3M 3500293 DBI-SALA Nano-Lok Edge Self-Retracting Lifeline (SRL) is designed for ANSI Class 2 foot-level tie-off and leading edge applications. This SRL is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. It features an 8 ft. galvanized cable lifeline with a swivel snap hook at the lifeline's end. Designed to lock quickly, stopping a fall within inches.
- Designed for foot-level tie-off and leading edge applications
- Durable thermoplastic housing
- RFID equipped and compatible with inventory management system
Product Highlights
Compact design is easily worn on the user's back and stays out of the way. Tension is maintained on the lifeline, which helps reduce potential dragging and trip falls.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: 3500293
-
Country of Origin: USA
Technical Specifications
-
Brand: 3M
-
Manufacturers Part Number: 3500293
-
Description: Self-Retracting Lifeline
-
Install Type: Portable & Removable
-
Cable Material: Galvanized Cable
-
Number of Legs: 1
-
ANSI SRL TYPE: SRL
-
Housing Material: Nylon Thermoplastic
-
ANSI SRL Class: Class 2
-
Mounting Location: Direct to Harness Back
-
Hook Opening: 3/4 in
-
Harness Connection: Steel Quick-Connect
-
Lifeline Material: Galvanized Cable
-
Anchorage Connection: Pin Connector
-
Lifeline Length: 8 ft
-
Weight Capacity: 420 lbs
-
Certifications: 29 CFR OSHA 1910.140, OSHA 29 CFR 1926.502, ANSI/ASSP Z359.14-2021
-
Harness Connection Material: Zinc Plated Steel
-
Anchorage Connection Material: Zinc Plated Steel
-
Average Arrest Force (Imperial): 900 lbf (ANSI), 900 lbf (OSHA 130 lb - 310 lb)
-
Average Arrest Force (Metric): 4 kN (ANSI), 4 kN (OSHA 130 lb - 310 lb)
-
Connected Safety ID Equipped: Yes
-
Harness Connection Type: Single Pin Connector
-
Housing Type: Thermoplastic
-
Leg Count: Single-Leg
-
Lifeline Connection Type: Swivel Snap Hook
-
Lifeline Length (Metric): 2.4 m
-
Maximum Arrest Force (Imperial): 1350 lbf (ANSI), 1800 lbf (OSHA up to 420 lb), 1350 lbf (OSHA 130 lb - 310 lb)
-
Maximum Arrest Force (Metric): 6 kN (ANSI), 8 kN (OSHA up to 420 lb), 6 kN (OSHA 130 lb - 310 lb)
-
Maximum Number of Users: One
-
Product Series: Nano-Lok edge
-
Product Type: Edge Quick Connect Self-retracting Lifeline (Cable)
-
Recommended Application: Leading Edge
-
Recommended Industry: Construction
-
Specifications Met: ANSI Class Level 2, ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502
-
Style: Single Leg
-
Net Weight (Imperial): 4.25 lb
-
Net Weight (Metric): 1.92 kg
-
Overall Length (Imperial): 8 ft
-
Overall Length (Metric): 2.4 m
-
Weight Capacity (Imperial): 420 lb
-
Weight Capacity (Metric): 190 kg
-
Model Number: 3500293
-
ANSI Class Level: Class 2
-
Anchoring Location: Overhead or Foot Level
-
Anchorage End: Snap Hook
-
ANSI SRL Class (2021): Class 2
-
RFID Equipped: Yes
-
Brand & Series: 3M DBI-SALA Nano-Lok
-
Edge: Edge
-
ANSI Standards Met: ANSI Z359.14-2021
-
OSHA Standards Met: OSHA 1910.140; OSHA 1926.502
-
Weight Capacity - Leading Edge Application: 420 lb
-
Sub-brand: DBI-SALA
-
SRL Housing Material: Nylon Thermoplastic
-
Product Number: 3500293
-
Type: Class 2
-
3M ID: 7012828694
-
3M Part #: 3500293
