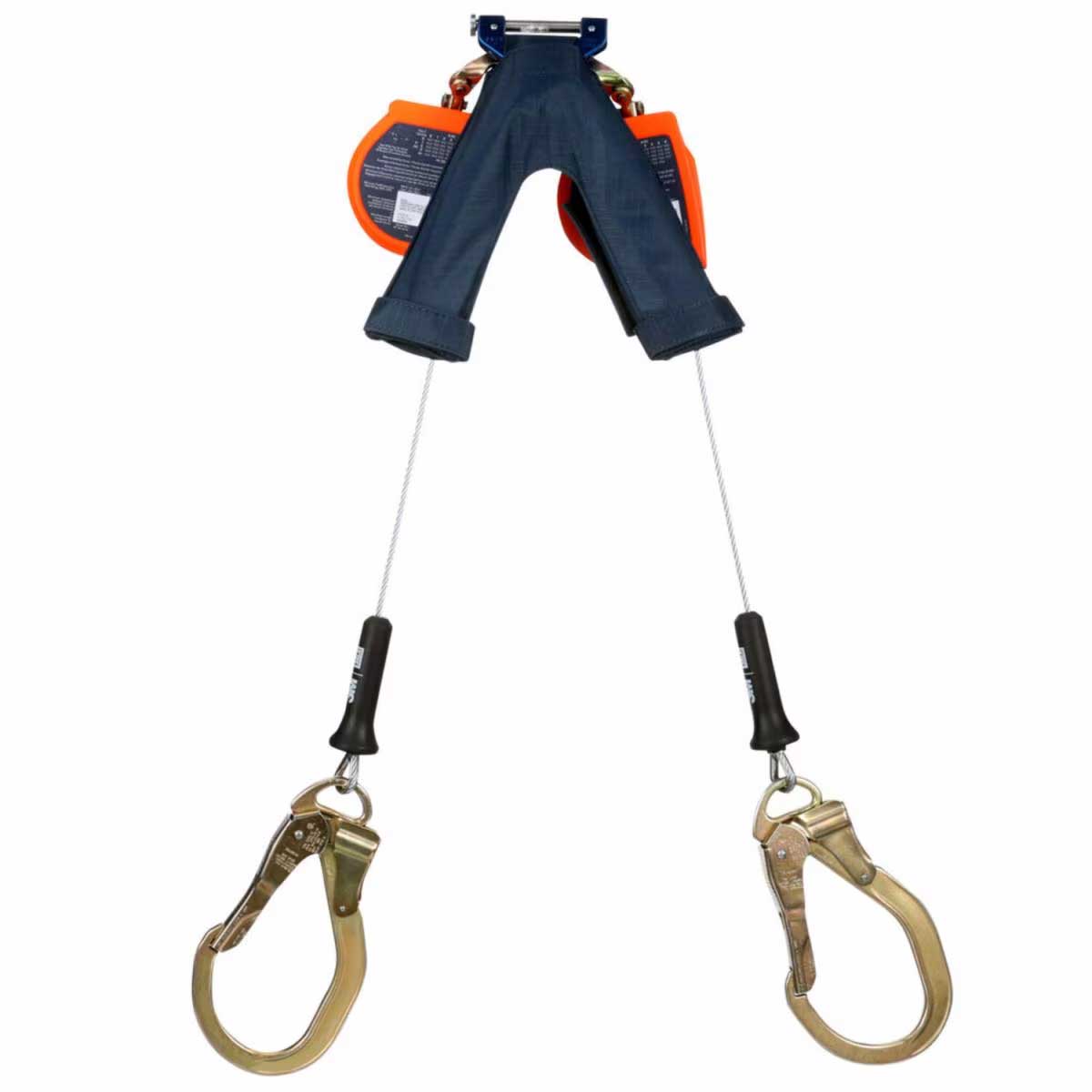

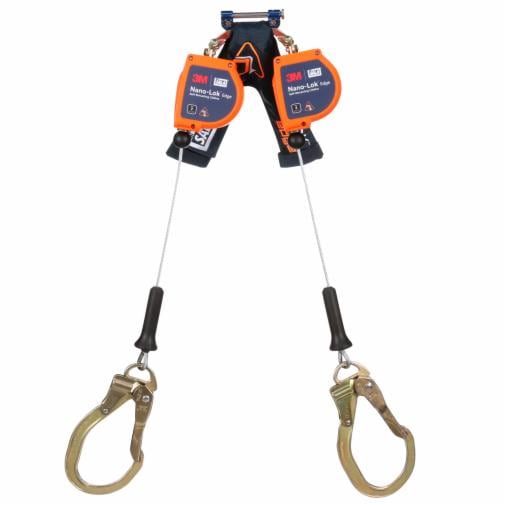

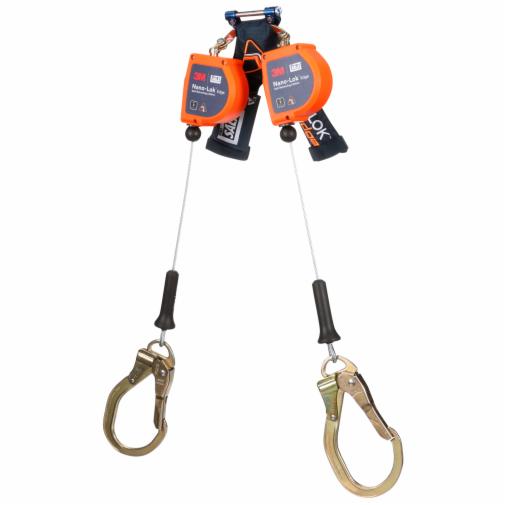

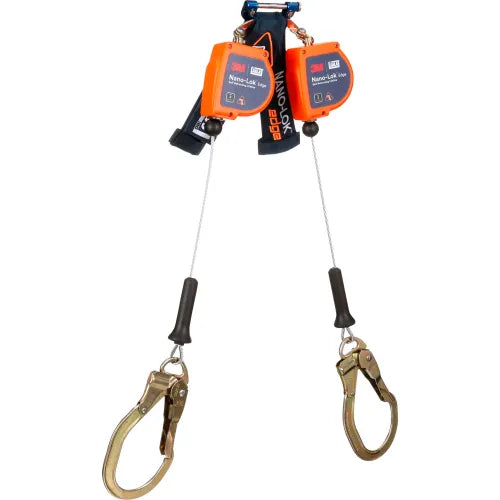

3M 3500276 DBI-SALA Nano-Lok Edge Twin-Leg Personal Self Retracting Lifeline, 8 feetL

Product Description

The 3M 3500276 DBI-SALA Nano-Lok Edge Self-Retracting Lifeline (SRL) is designed for ANSI Class 2 foot-level tie-off and leading edge applications, commonly found in construction. This SRL is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. It locks quickly, stopping a fall within inches, and maintains tension on the lifeline to reduce potential dragging and trip falls.

• Designed for foot-level tie-off and leading edge applications
• Compact Design
• Quick activating speed sensing brake system

Product Highlights

This twin-leg lifeline features galvanized steel wire rope and steel rebar locking hooks, along with a quick connector for harness mounting. It is suitable for construction, metal fabrication, and oil & gas industries.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 3500276

Technical Specifications

• Brand: 3M
• Description: Edge Twin-Leg Personal Self-Retracting Lifeline, Cable & Rebar Lock Hook
• Cable Material: Galvanized
• Number of Legs: 2
• ANSI SRL TYPE: SRL
• Housing Material: Nylon Thermoplastic
• Package Quantity: 1
• ANSI SRL Class: Class 2
• Mounting Location: Direct to Harness Back
• Harness Connection: Pin Connector
• Lifeline Material: 3/16" (5mm) galvanized steel cable
• Lifeline Length: 8 ft
• Weight Capacity: 420 lbs
• Manufacturers Part Number: 3500276
• Harness Connection Material: Stainless Steel
• Connected Safety ID Equipped: Yes
• Install Type: Portable & Removable
• Maximum Arrest Force (Imperial): 1425 lbf (ANSI)
• Maximum Arrest Force (Metric): 6.3 kN (ANSI)
• Maximum Number of Users: One
• Recommended Application: Leading Edge
• Recommended Industry: Oil & Gas, Construction, Metal Fabrication
• Style: Dual Leg
• Net Weight (Imperial): 8.6 lb
• Net Weight (Metric): 3.9 kg
• Overall Length (Imperial): 8 ft
• Overall Length (Metric): 2.44 m
• Average Arrest Force (Imperial): 900 lbf (ANSI), 900 lbf (OSHA 130 lb - 310 lb)
• Average Arrest Force (Metric): 4 kN (ANSI), 4 kN (OSHA 130 lb - 310 lb)
• Item Number: 3500276 (Replaces 3500227)
• ANSI Class Level: 2
• Lifeline Length (Imperial): 8 ft
• Lifeline Length (Metric): 2.44 m
• Lifeline Hook Material: Zinc Plated Steel
• Harness Connection Hook Material: Stainless Steel
• Harness Connection Type: Single Pin Connector
• Housing Type: Thermoplastic
• Leg Count: Twin-Leg
• Lifeline Connection Type: Rebar Snap Hook
• Product Series: Nano-Lok™ edge
• Smallest Saleable Unit: Each
• Specifications Met: ANSI Class Level 2, ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502
• Standards: 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, ANSI/ASSP Z359.14-2021
• Type: ANSI Class 2 SRL-P Compliant
• Additional Info: Weight Capacity: 420 lbs.
