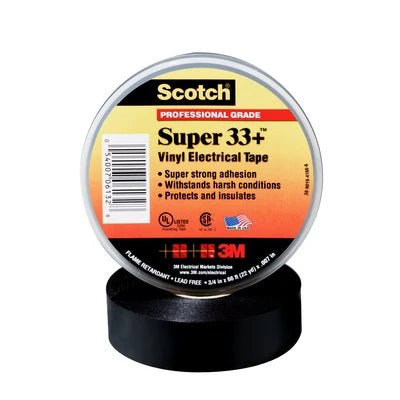

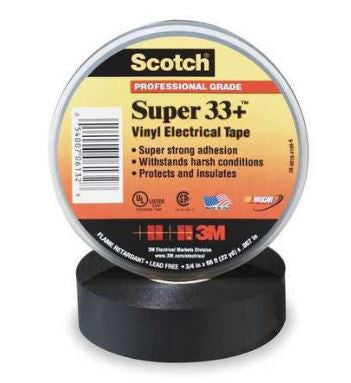

3M 33+SUPER-3/4X66FT Scotch Super 33+ Vinyl Electrical Tape 3/4 in x 66 ft

Product Description

The 3M 33+SUPER-3/4X66FT Scotch® Super 33+ Vinyl Electrical Tape provides electrical insulation for wires and cables rated up to 600V. The flame retardant tape withstands temperatures from 0 to 221 °F. It offers electrical and mechanical protection with its pressure-sensitive, rubber resin adhesive and elastic PVC backing.

• Offers electrical and mechanical protection with its pressure-sensitive, rubber-resin adhesive and the PVC backing
• Resists UV rays, abrasion, moisture, alkalis, solvents and acids
• Flame-retardant and inhibits the corrosion of electrical conductors

Product Highlights

This 7 mil thick, premium grade tape is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant. Compatible with rubber and synthetic splicing compounds.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 33+SUPER-3/4X66FT

Technical Specifications

• Color: Black
• Size: 3/4 in
• Length: 66 ft.
• Thickness: 7 mil
• Backing: PVC
• Adhesive Type: Rubber
• Dielectric Strength: 1150 V/mil
• Elongation at Break: 250.0 %
• Insulation Resistance: > 10^6 megohms
• Maximum Operating Temperature: 221 Degree Fahrenheit
• Minimum Operating Temperature: 0 Degree Fahrenheit
• Tensile Strength: 15.0 lb/in
• Voltage Rating: 600 V
• Material: Flame Retardant Vinyl
• Shape: Continuous Roll
• Adhesion Strength: 60 oz./in.
• Adhesive: Rubber Resin
• UV Resistance: Yes
• Performance Temp.: Up to 220 Degrees F
• Standards: UL Listed, UL 510, CSA Certified, RoHS 2011/65/EC, ASTM D1000
• Series: Super 33+(TM)
• Temperature Range: 0 Degrees to 220 Degrees F
• Brand: Scotch
• MPN: 33+SUPER-3/4X66FT
