Product Description

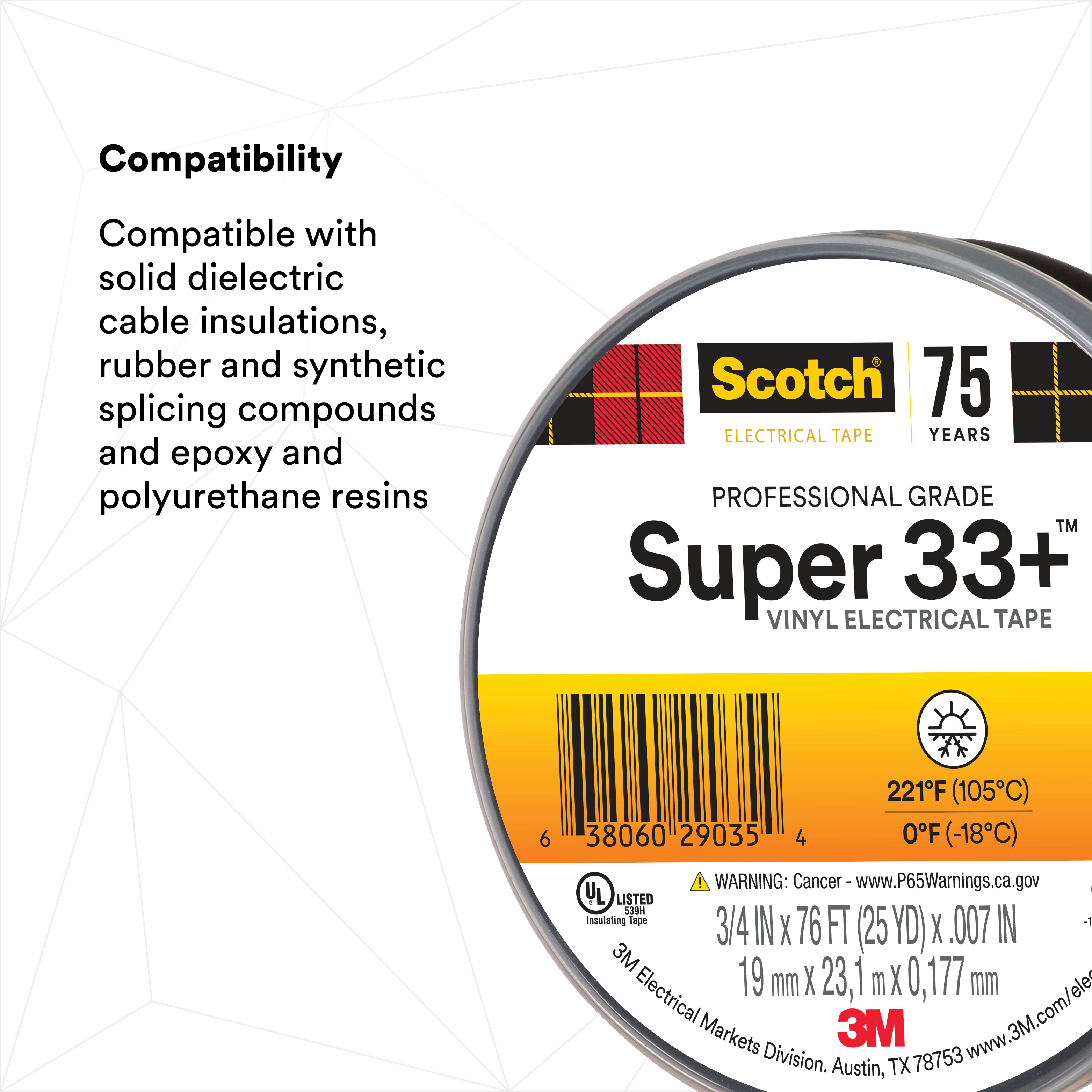

The 3M 33+-3/4X76FT-1 Scotch Super 33+ Vinyl Electrical Tape is a 7 mil thick, premium grade tape that provides electrical insulation for wires and cables up to 600V. This flame retardant tape withstands temperatures from 0 to 221 ��F. It is compatible with solid dielectric cable insulation, synthetic cable insulations, jackets, and splicing compounds.

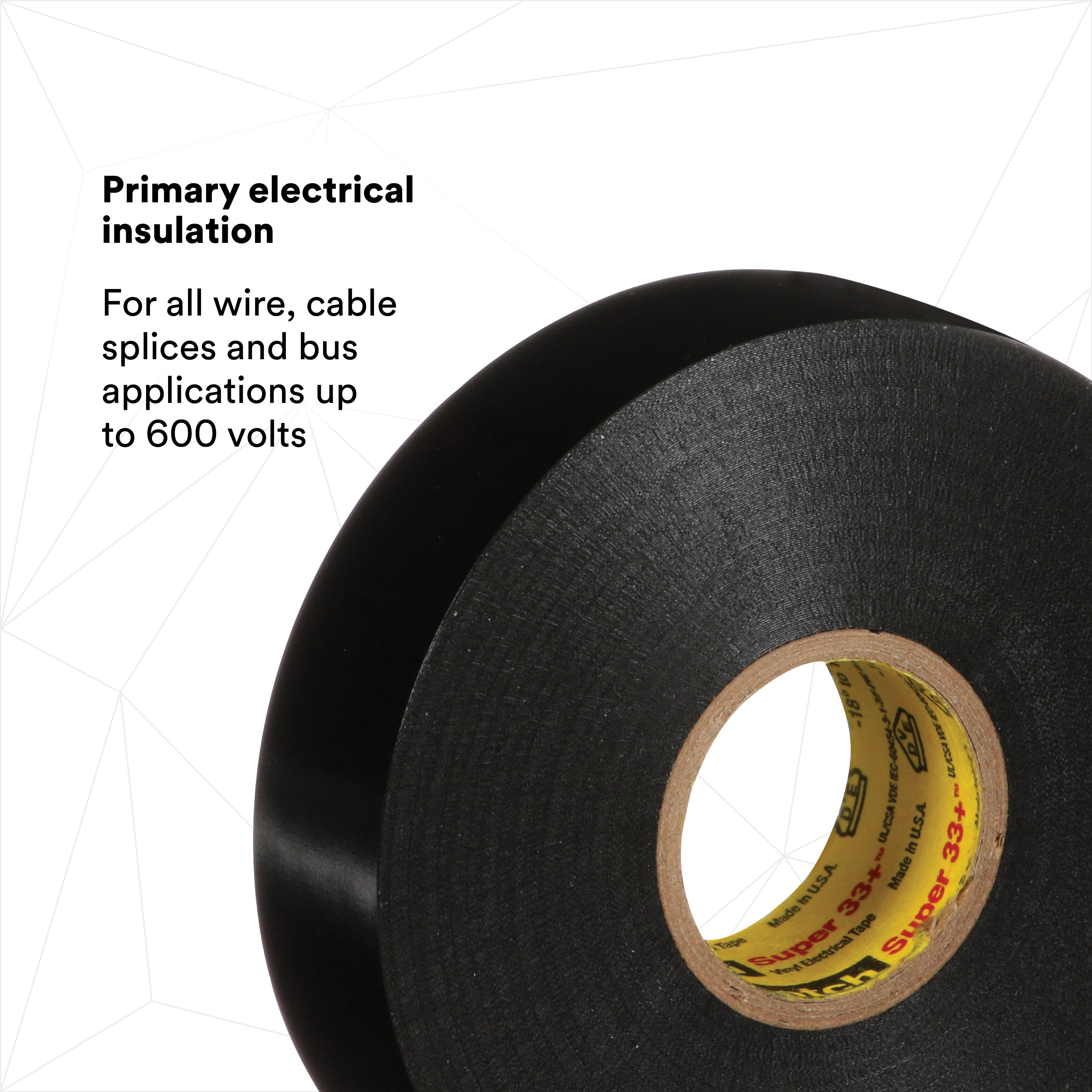

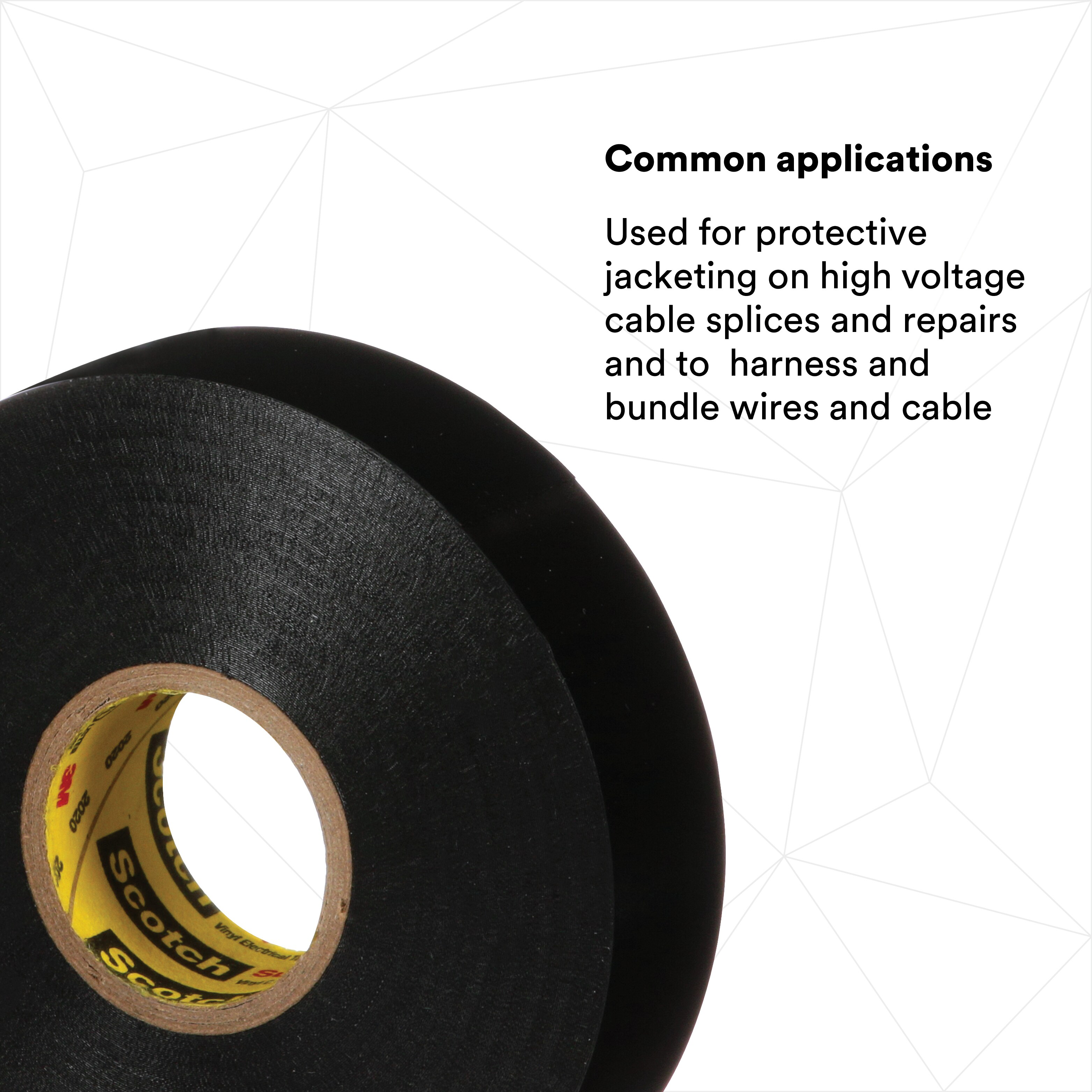

- Provides electrical insulation for all wires and cables rated up to 600V
- Flame retardant and inhibits the corrosion of electrical conductors
- Resists UV rays, abrasion, moisture, alkalies, solvents and acids
Product Highlights
This premium grade vinyl electrical tape offers all-weather performance and excellent resistance to abrasion, moisture, alkalies, acids, and corrosion. It is UL Listed and CSA Certified.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: 33+-3/4X76FT-1
-
Country of Origin: US
Technical Specifications
-
Type: Electrical Tape
-
Width: 0.75 Inches
-
Length: 76 Feet
-
Standard: UL, CSA
-
ARRA Compliant: Y
-
RoHS Indicator: Y
-
Backing Material: PVC
-
Tensile Strength: 15 Inch Pounds
-
Country of Origin: US
-
Temperature Range: 0��F to 221��F
-
Buy American Compliant: Y
-
Brand Name: Super 33+
-
Trade Size: 3/4IN
-
Thickness: 7
-
Application: Insulation
-
Dielectric Strength: 1150
-
Maximum Temperature: 221
-
Adhesive Type: Rubber
-
Tape Thickness: 7 mil
-
Voltage Rating: 600 V
-
Tape Grade: Premium Grade
-
Temperature Resistance: Up to 105��C (220��F)
-
Cold Weather Application: Down to -18��C (0��F)
-
Resistance: Abrasion, moisture, alkalies, acids, corrosion, varying weather conditions (including ultraviolet exposure)
-

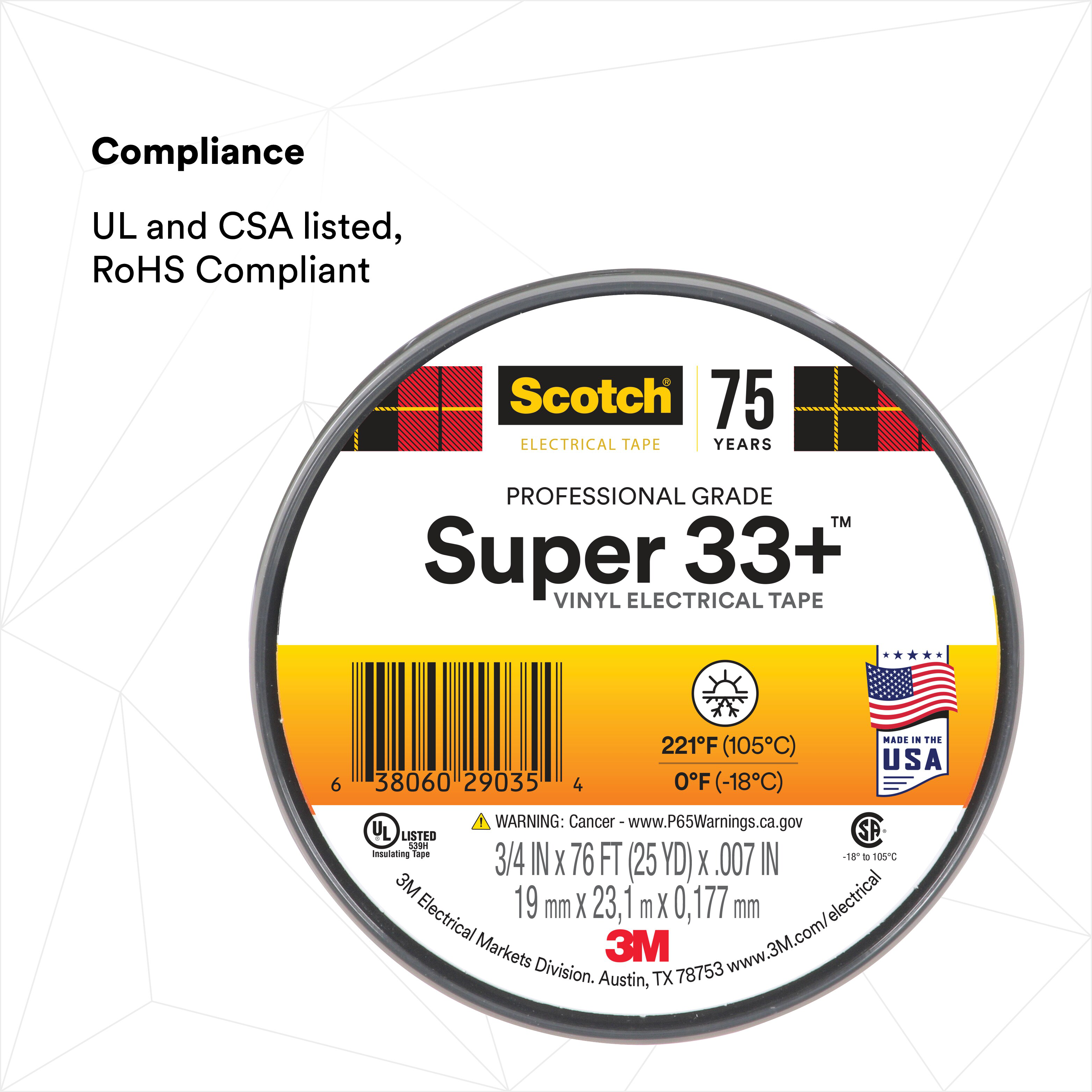

Certifications: UL Listed, CSA Certified
-
Adhesion Strength: 28 in-oz Steel, 28 in-oz Backing at 73 deg F
-
Adhesive Material: Rubber
-
Core Diameter: 1 in
-
Material Type: Super 33+��� Vinyl
-

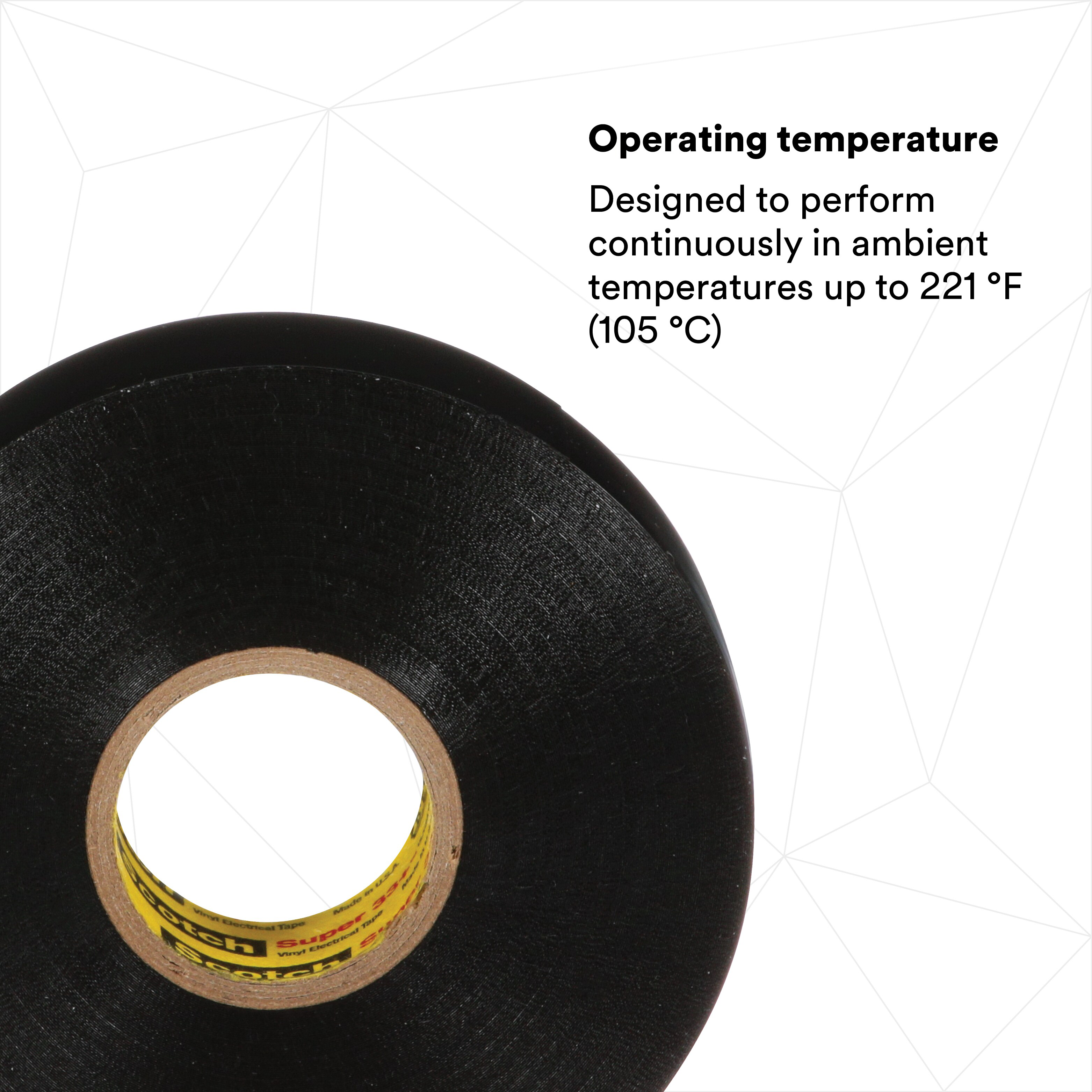

Maximum Operating Temperature: 221 deg F
-
Minimum Operating Temperature: 0 deg F
-
Series: Super 33+���
-
Specifications Met: CSA C22.2 File No. 197, File No. 048769 Class 9052-02, UL 510, Category OANZ, File No. E129200, VDE Marks License No. 130462 for Type 7: IEC 60454-3-1-7/F-PVC P/90
-
Standards/Approvals: 3M File No. E256906 Meets A-A-55809|ASTMD 1000/D1000|CSA C22.2 No. 197-M1983 File LR 48769|OANZ2|RoHS 2011/65/EU|UL 510 File No. E129200
-
Overall Width (Imperial): 0.75
-
Overall Width (Imperial) UOM: in
-
Overall Width (Metric): 19.0
-
Overall Width (Metric) UOM: mm
-
Product Color: Black
-
Total Tape Thickness without Liner (Imperial): 7.0
-
Total Tape Thickness without Liner (Imperial) UOM: mil
-
Total Tape Thickness without Liner (Metric): 0.178
-
Total Tape Thickness without Liner (Metric) UOM: mm
-
Elongation at Break: 250
-
Insulation Resistance: > 10^6��megohms
-
Maximum Operating Temperature (Celsius): 105.0
-
Maximum Operating Temperature (Celsius) UOM: Degree
-
Maximum Operating Temperature (Fahrenheit): 221.0
-
Maximum Operating Temperature (Fahrenheit) UOM: Degree
-
Minimum Operating Temperature (Celsius): -18.0
-
Minimum Operating Temperature (Celsius) UOM: Degree
-
Minimum Operating Temperature (Fahrenheit): 0.0
-
Minimum Operating Temperature (Fahrenheit) UOM: Degree
-
Overall Length (Imperial): 76.0
-
Overall Length (Imperial) UOM: ft
-
Overall Length (Metric): 23.1
-
Overall Length (Metric) UOM: m
-
Product Markets: Electrical Equipment Manufacturing
-
Tensile Strength (Imperial): 15.0
-
Tensile Strength (Imperial) UOM: lb/in
-
Tensile Strength (Metric): 26.0
-
Tensile Strength (Metric) UOM: N/cm
-
Item Width: 3/4 in
-
Item Length: 76 ft
