Product Description

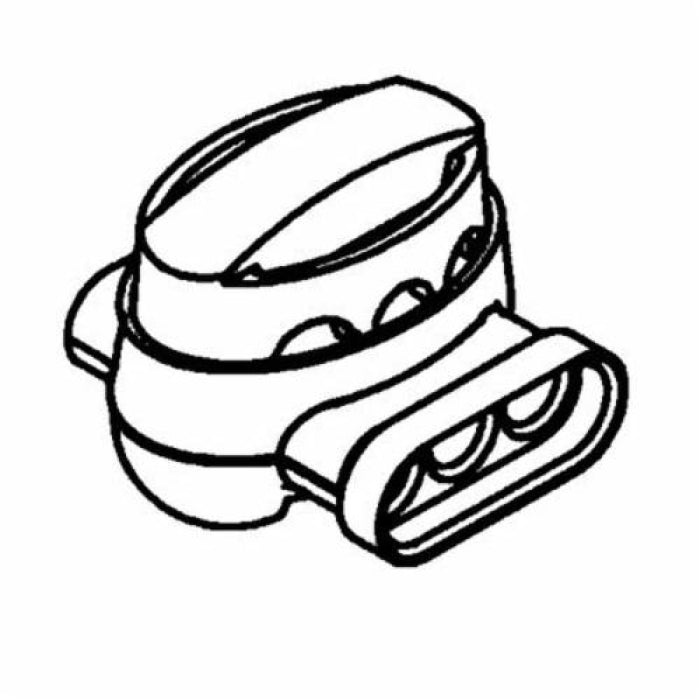

The 3M Scotchlok 314U-BIN is an electrical insulation displacement connector designed for use with 22 to 14 AWG wire. This connector is suitable for various applications including dry environments. It features a self-stripping design that allows for easy installation without the need for additional tools.
- Self-stripping design for quick connections
- Rated for 600V, suitable for various electrical applications
- Flame-retardant nylon construction for safety and durability
Product Highlights
This connector is ideal for connecting two or three wires in electrical setups. It is UL Listed, CSA Certified, and meets RoHS compliance. Its nylon insulation helps ensure secure connections.
Product Information
Standard Information
-
Manufacturer: 3M
-
Brand: 3M Electrical Products
Technical Specifications
-
MPN: 314U-BIN
-
Wire Size: 22 to 14 AWG
-
Voltage Rating: 600 V
-
Temperature Rating: 221 Deg F
-
Maximum Insulation Diameter: 0.155 Inches
-
Standard Package: 1000 per Bin
-
Connection Type: Pigtail
-
Approval: UL, CSA
