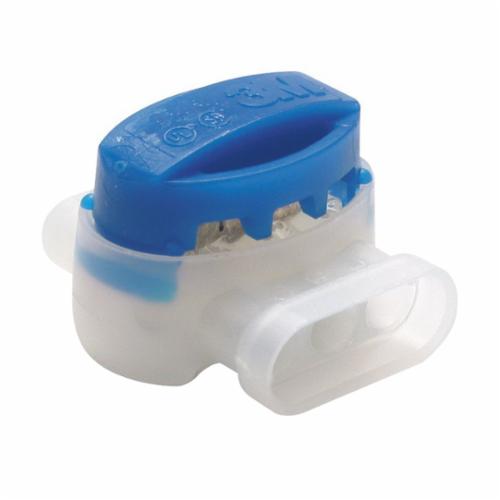

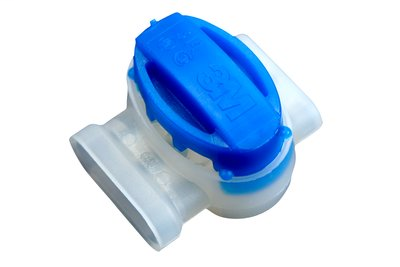

3M 314-POUCH Adhesive Connector 22-14 AWG Self-Stripping

Product Description

The 3M 314-POUCH is a self-stripping, moisture-resistant electrical connector designed for connecting two or three wires. This connector features a nylon insulation that provides a secure seal and ensures reliable connectivity in damp applications. It can handle wire sizes between twenty-two to fourteen AWG and supports a maximum insulation diameter of 0.155 inches. It is flame retardant and suitable for low voltage applications. The suggested application tool for this connector is the E-9BM crimping tool.

• Self-stripping design for easy use
• Moisture-resistant with a durable nylon construction
• Compatible with wire sizes 22 to 14 AWG

Product Highlights

This connector is ideal for connecting wires in environments where moisture resistance is necessary, such as in electrical installations that may face damp conditions.

Product Information

Standard Information

• Brand: 3M
• MPN: 314-POUCH

Technical Specifications

• Material: Nylon, Tin Plated Brass
• Voltage Rating: 600 VAC
• Flame Retardant: Yes
• Cable Size: 22-14 AWG
• Max Operating Temperature: 221 degrees F
• Connection Type: Pigtail
• Country of Origin: USA
• Standards/Approvals: UL Listed, CSA Certified
