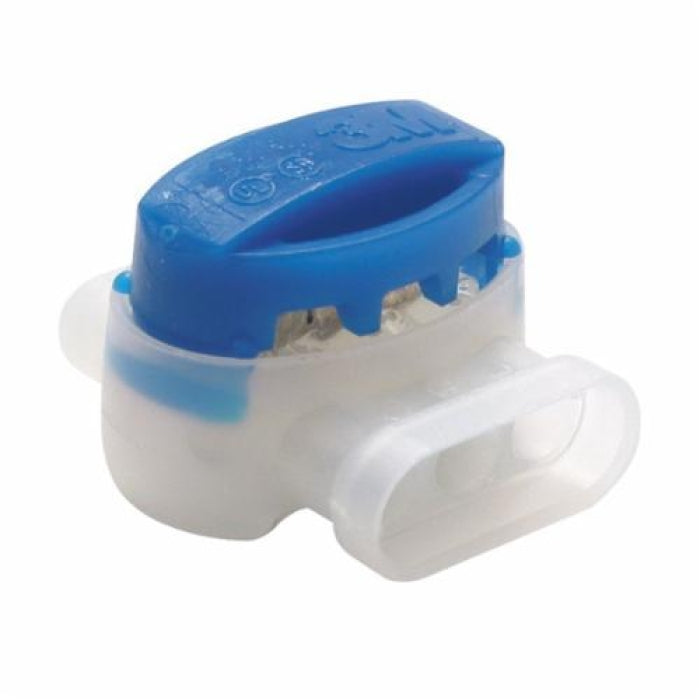

3M 314-BOX IDC Connector (50/Box) - 314-BOX

Product Description

The 3M 314-BOX is an insulation displacement connector designed for low-voltage electrical applications. This product is suitable for connecting and insulating two or three wires. It works with wire sizes from twenty-two to fourteen AWG and supports a voltage rating of six hundred VAC.

• Moisture-resistant seal
• Self-stripping design for easy installation
• Compatible with E-9BM crimping tool

Product Highlights

This connector is flame retardant and made from nylon material. The maximum insulation diameter is zero point one five five inches, and it operates effectively at a maximum temperature of two hundred twenty-one degrees Fahrenheit.

Product Information

Standard Information

• Brand: 3M
• Part Number: 314-BOX
• Wire Size: 22 to 14 AWG

Technical Specifications

• Type: Pigtail
• Voltage Rating: 600 VAC
• Material: Flame retardant nylon
• Insulation Type: Fully insulated
• Max Operating Temperature: 221 degrees F
• Finish: Tin plated
• Wire Type: Solid or stranded copper
• Standard & Approvals: CSA certified, RoHS compliant, UL listed
