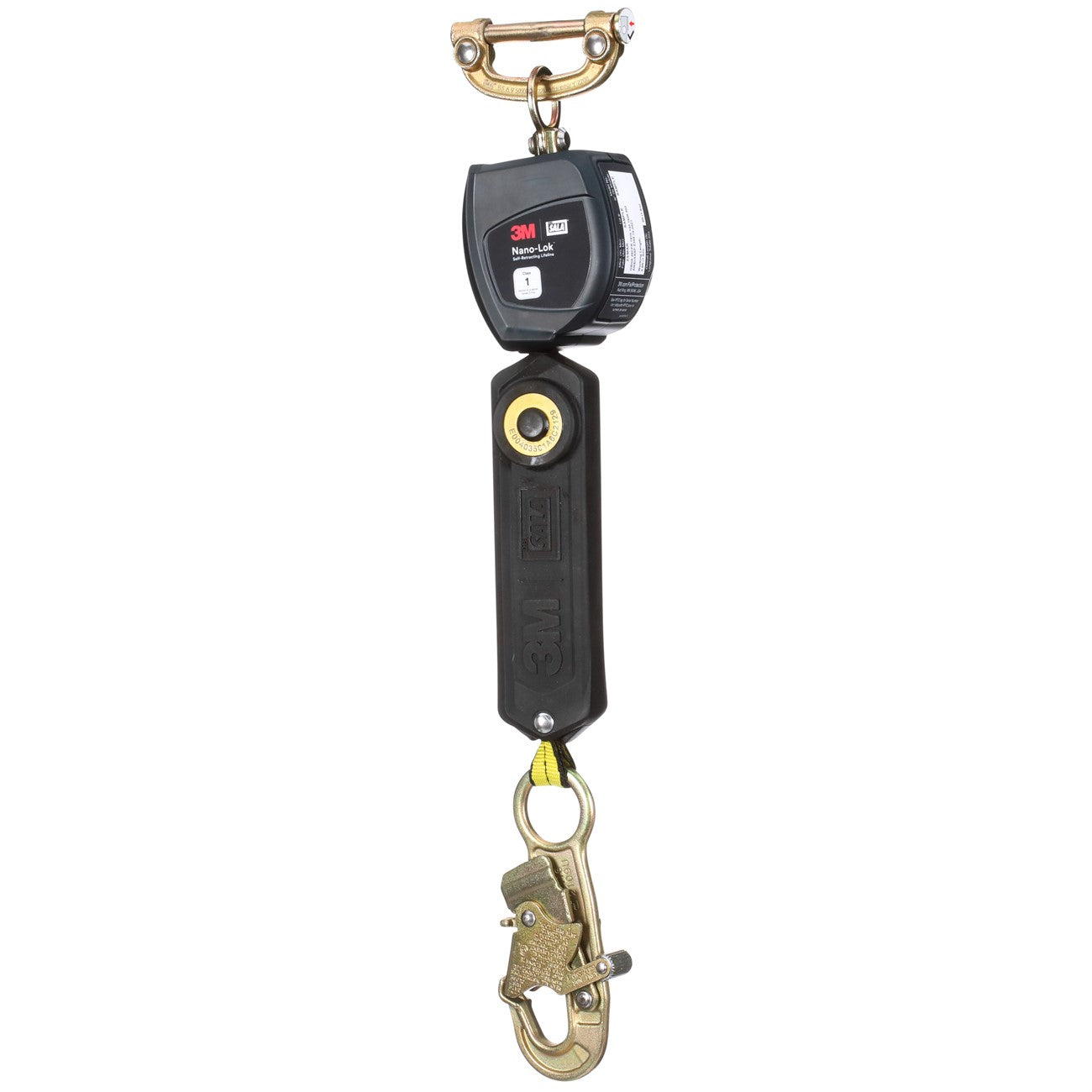

3M 3100526 Self Retracting Lifeline 6 Foot

Product Description

The 3M 3100526 is a personal self-retracting lifeline (SRL) designed for fall protection in industrial work environments. The unit features a webbing lanyard with a steel snap hook and a durable thermoplastic housing. A quick-activating, speed-sensing brake system arrests a fall within inches of drop, making it especially effective at low working heights. A high-capacity external energy absorber cushions arrest forces, and a built-in impact indicator provides a visible record of any fall event. Licensed fall protection professionals and site safety personnel are the primary installers and users of this equipment.

This SRL suits a range of industrial applications where overhead or direct-to-harness connection is required. The swiveling anchorage loop allows mounting to an overhead anchor point, and the built-in connector enables direct attachment to a compatible harness without a separate connector. Single-leg configurations like this unit are suited to tasks requiring freedom of movement across a work surface, elevated platforms, or structural steel. The unit is RFID equipped, making it compatible with electronic inventory and inspection management systems.

Key Features

• Speed-sensing brake system arrests falls within inches for added protection at low heights
• Compact, lightweight thermoplastic housing reduces worker fatigue
• Swiveling anchorage loop prevents line twist during movement
• Built-in connector allows direct attachment to harness dorsal ring
• High-capacity external energy absorber with integrated impact indicator
• RFID equipped for compatibility with inventory and inspection management systems

Compatibility

Designed for direct connection to most full-body harnesses with a standard dorsal or sternal D-ring attachment point. Consult the product documentation to confirm harness and anchor point compatibility before use.

Installation Notes

This equipment must be installed and inspected by a competent person as defined under applicable OSHA fall protection regulations. Before connecting, verify that the anchor point meets minimum strength requirements per OSHA 29 CFR 1926.502 and ANSI Z359 standards. Inspect the snap hook, webbing, housing, and impact indicator before each use and remove the unit from service immediately if the impact indicator has been activated. Do not attempt to disassemble, repair, or modify the self-retracting mechanism.

Technical Specifications

• Lifeline Length: 6 feet
• Snap Hook Type: Steel
• Lifeline Material: Web (webbing)
• Housing Material: Thermoplastic
• Weight: 3.045 pounds
• UPC: 648250242278

Standard Information

• Brand: 3M
• Manufacturer Part Number: 3100526
