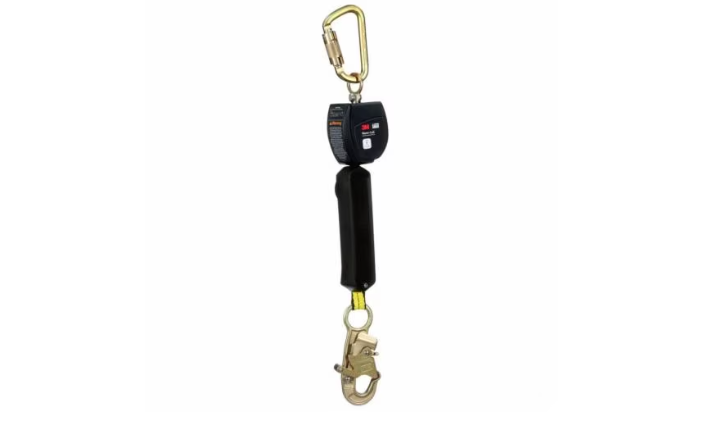

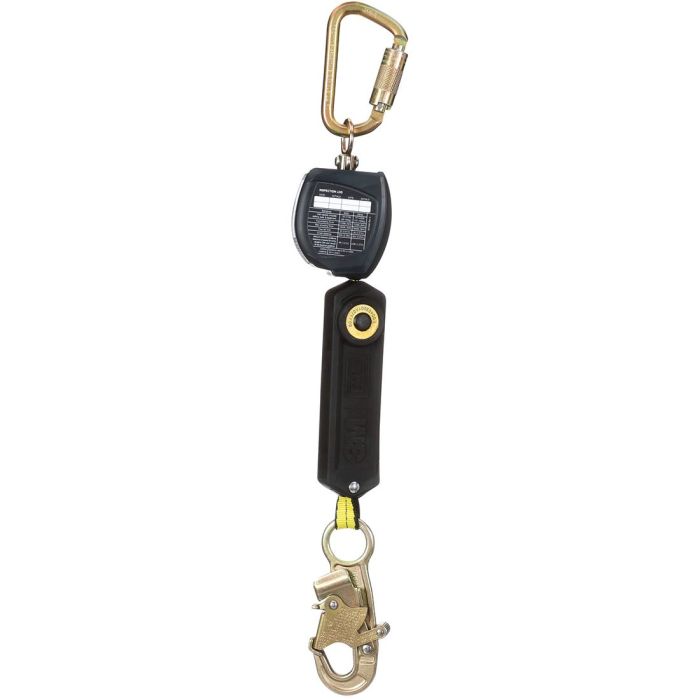

3M 3100520 Dbi-sala Nano-lok 6 ft. Personal Self-Retracting Lifeline with Anchor Hook, Web, Steel Snap Hook, Ansi Class 1

Product Description

The 3M 3100520 DBI-SALA Nano-Lok personal self-retracting lifeline with anchor hook features a swiveling anchorage loop with carabiner. It has a 6ft. web lifeline with a zinc-plated steel snap hook and durable thermoplastic housing. Designed for direct connection to most harnesses, it enhances worker comfort and safety.

• Precision-engineered for performance and productivity
• Swiveling anchorage loop with carabiner
• Quick activating speed sensing brake system

Product Highlights

This compact and lightweight self-retracting lifeline is RFID equipped and compatible with inventory management systems. Meets 29 CFR OSHA 1910.140, ANSI/ASSP Z359.14-2021, and 29 CFR OSHA 1926.502 standards.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 3100520
• Country of Origin: USA

Technical Specifications

• Model Number: 3100520
• Brand: DBI-SALA®
• Product Series: Nano-Lok™
• Product Category(s): Single-Leg SRL
• Length Option: 6 ft.
• ANSI Class Level: Class 1
• Anchor Connection Type: Carabiner
• Anchor Hook Material: Zinc Plated Steel
• Average Arrest Force (Imperial): 1125 lbf (ANSI), 1125 lbf (OSHA 130 lb - 310 lb)
• Average Arrest Force (Metric): 5 kN (ANSI), 5 kN (OSHA 130 lb - 310 lb)
• Connected Safety ID Equipped: Yes
• Housing Material: Nylon Thermoplastic
• Housing Type: Thermoplastic
• Install Type: Portable & Removable
• Leg Count: Single-Leg
• Lifeline Connection Type: Snap Hook
• Lifeline Hook Material: Zinc Plated Steel
• Lifeline Length (Imperial): 6 ft
• Lifeline Length (Metric): 1.8 m
• Lifeline Material: Web
• Maximum Arrest Force (Imperial): 1800 lbf (ANSI), 1800 lbf (OSHA 130 lb - 310 lb)
• Maximum Arrest Force (Metric): 8 kN (ANSI), 8 kN (OSHA 130 lb - 310 lb)
• Maximum Number of Users: One
• Mounting Type: Overhead Anchor Point
• Overall Length (Imperial): 6 ft
• Overall Length (Metric): 1.83 m
• Product Type: Self Retracting Lifeline with Anchor Hook - Web
• Specifications Met: 29 CFR OSHA 1910.140, ANSI/ASSP Z359.14-2021, 29 CFR OSHA 1926.502
• Weight Capacity (Imperial): 420 lb.
• Weight Capacity (Metric): 190 kg
• Recommended Industry: Transportation, Renewable, Wind Energy, Utility, General Industrial, Utilities, Automotive, Pharmaceutical, General Manufacturing, Maintenance, Warehousing, Metal Fabrication, Manufacturing, Mining, Oil & Gas, Industrial, Construction, Military Maintenance, Repair & Operation (MRO), General Industry, Metal Production & Fabrication
• Recommended Application: Demolition, Cleaning, Electrical
• Top Connector Type: Swiveling anchorage loop with carabiner

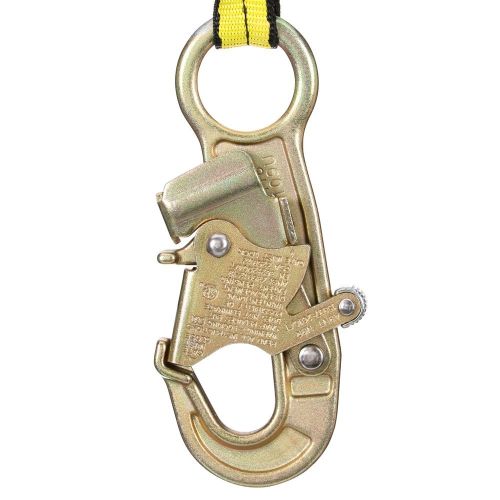

• Bottom Connector Type: Self-locking snap hook
• Standards & Certifications: ANSI/ASSP Z359.14-2021 CLASS 1, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502
• 3M Product ID: 3100520
• 3M Stock #: 7100313156
• 3M ID: 3100520
• Manufacturers Manufacturer: 3M
