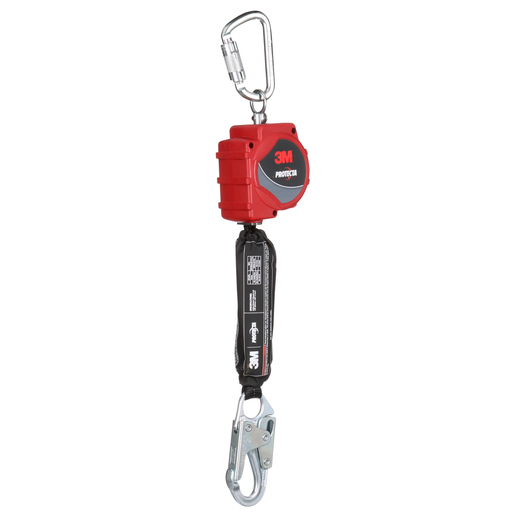

3M 3100513 Protecta Self-Retracting Lifeline with Carabiner 11 feetL

Product Description

The 3M Protecta Self-Retracting Lifeline (SRL) is durable yet lightweight and built to last while providing an economical fall protection solution without compromising performance or safety. It extends and retracts with the user. Should a fall occur, a speed sensing brake system activates, stopping the fall. Tension is always kept on the lifeline, which helps reduce dragging and snagging.

• Swiveling anchorage connector loop and carabiner
• Compact, lightweight design
• Features impact-indicating external energy absorber (for models with external shock pack)

Product Highlights

This self-retracting lifeline features a stackable housing design, with web or steel cable lifeline and a built-in swiveling anchorage point for added comfort and ease of use.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 3100513
• Country of Origin: USA

Technical Specifications

• Brand: 3M
• Manufacturers Part Number: 3100513
• Description: Self-Retracting Lifeline
• Install Type: Portable & Removable
• Cable Material: Webbing
• Number of Legs: 1
• Housing Material: Nylon Thermoplastic
• Package Quantity: 1
• Mounting Location: Overhead Anchor Point
• Hook Opening: 3/4 in
• Harness Connection: Snap Hook
• Lifeline Material: Web
• Anchorage Connection: Carabiner
• Lifeline Length: 11 ft
• Weight Capacity: 310 lbs
• Certifications: 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502
• Harness Connection Material: Zinc Plated Steel
• Anchorage Connection Material: Zinc Plated Steel
• Lifeline Length (Metric): 3.35 m
• Product Type: Self Retracting Lifeline - Web
• Weight Capacity (Metric): 141 kg
• Anchor Connection Type: Carabiner
• Anchor Hook Material: Zinc Plated Steel
• Leg Count: Single-Leg
• Lifeline Connection Type: Snap Hook
• Lifeline Hook Material: Zinc Plated Steel
• Maximum Arrest Force (Imperial): 1800 lbf (OSHA 130 lb - 310 lb)
• Maximum Arrest Force (Metric): 8 kN (OSHA 130 lb - 310 lb)
• Maximum Number of Users: One
• Style: Single Leg
• Overall Length (Imperial): 11 ft
• Overall Length (Metric): 3.35 m
• Recommended Application: Climbing, Demolition, Inspection, Maintenance, Remediation
• Recommended Industry: Construction, Manufacturing, Mining, Oil & Gas, Industrial, General Manufacturing, Wind Energy, Military Maintenance, Repair & Operation (MRO), General Industry
• Specifications Met: 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502
• Model: 3100513
• MPN: 3100513
• Housing Type: Thermoplastic
